JL6126 / JL6124

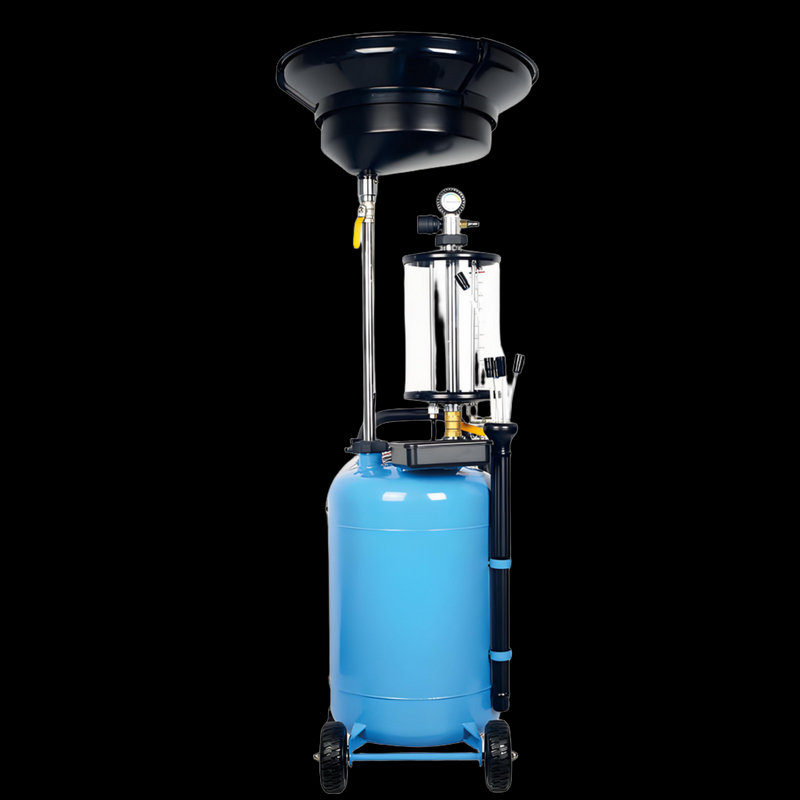

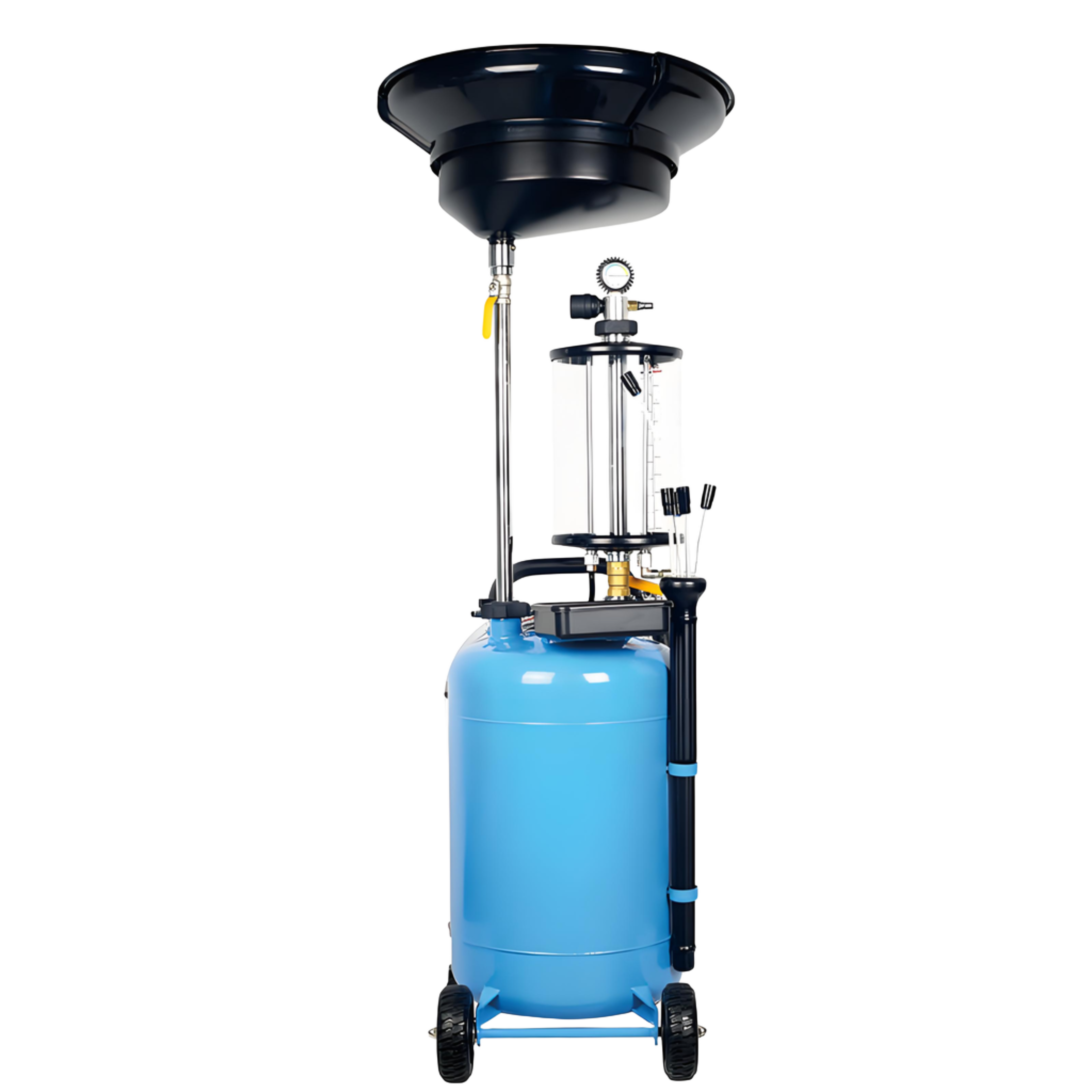

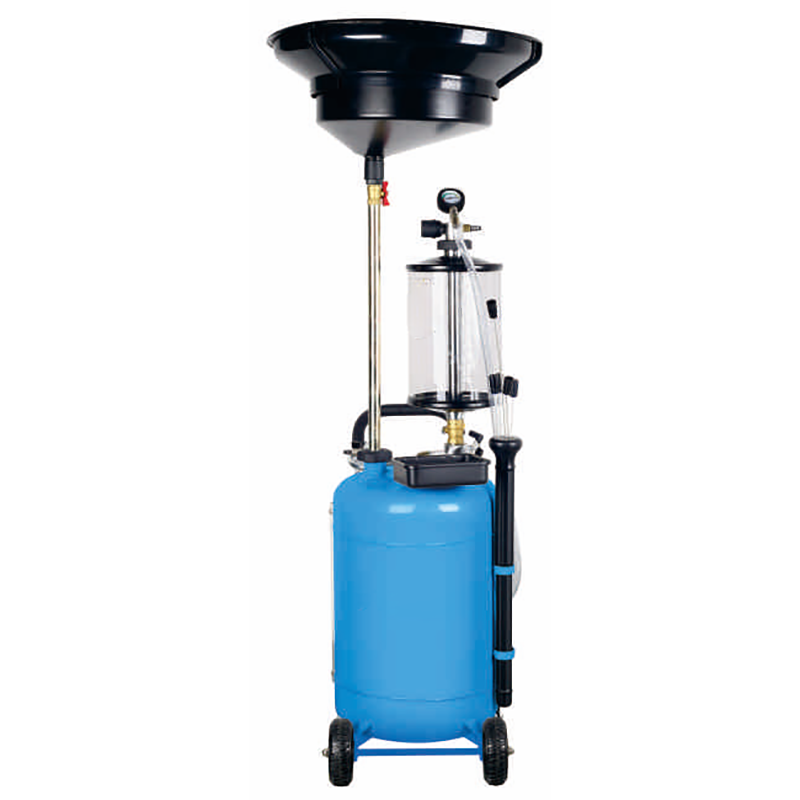

This pneumatic oil drainer and extractor is designed for efficient oil changes in professional automotive and industrial workshops. It combines gravity draining and vacuum suction capabilities. It also features a transparent glass measuring cup for precise oil monitoring and a large tank for a convenient way to store the used oil. The tank is available in 70L and 85L two size.
Air pipe option: it can create an extra vacuum capacity that can operate independently of air source by a balance pipe connected between cup and tank.
Technical Parameters:
Model NO: JL6126 / JL6124
Tank Capacity: 70L or 85L
Suction rate: 1.8-3.0L/min
Scope of oil collecting: 580mm or 800mm
Lift height: 1.35-1.95mm
Measuring cup(prechamber) capacity: 10L
Length of suction hose: 1.6m
Length of discharging hose: 1.6m
Air working pressure: 6-8bar
Max pressure for draining: 0.5bar
This pneumatic oil drainer and extractor is designed for efficient oil changes in professional automotive and industrial workshops. It combines gravity draining and vacuum suction capabilities. It also features a transparent glass measuring cup for precise oil monitoring and a large tank for a convenient way to store the used oil. The tank is available in 70L and 85L two size.
Air pipe option: it can create an extra vacuum capacity that can operate independently of air source by a balance pipe connected between cup and tank.
Technical Parameters:
Model NO: JL6126 / JL6124
Tank Capacity: 70L or 85L
Suction rate: 1.8-3.0L/min
Scope of oil collecting: 580mm or 800mm
Lift height: 1.35-1.95mm
Measuring cup(prechamber) capacity: 10L
Length of suction hose: 1.6m
Length of discharging hose: 1.6m
Air working pressure: 6-8bar
Max pressure for draining: 0.5bar
