What Factors Affect Pneumatic Pump Efficiency?

Views: 0     Author: Site Editor     Publish Time: 2026-06-26      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Compressed air is one of the most expensive utilities in industrial manufacturing today. Consequently, the operational efficiency of your pumping equipment directly impacts facility energy costs and carbon footprint compliance. Generating compressed air demands massive amounts of electricity. When systems run poorly, financial losses compound rapidly.

Many procurement and engineering teams focus solely on the initial capital expense. They often ignore how energy and maintenance account for the vast majority of a pump’s lifecycle cost. Misdiagnosing efficiency bottlenecks leads to oversized air compressors. It creates wasted Standard Cubic Feet per Minute (SCFM) and causes premature component failure. Operators frequently misunderstand why performance drops, choosing to mask symptoms rather than fix underlying problems.

This guide deconstructs the mechanical, fluid, and system-level variables dictating pump performance. We provide a practical framework for evaluating and selecting equipment delivering measurable returns. By understanding these exact factors, you can stop wasting valuable utility resources. We will explore how to identify internal wear, optimize air infrastructure, and select the right technology for your specific application.

Key Takeaways

  • Efficiency is tied to air consumption: In pneumatic systems, true efficiency is measured by the volume of fluid transferred per unit of compressed air consumed (GPM per SCFM).
  • System design outweighs single-unit specs: Even a highly rated pump will underperform if installed in a system with restrictive piping, inadequate air supply, or incorrect discharge heads.
  • Maintenance prevents volumetric loss: Wear components like diaphragms and check valves degrade over time, leading to internal bypass and significant efficiency drops.
  • Modern air distribution systems (ADS) matter: Upgrading to a high efficiency pneumatic pump with an advanced, stall-free ADS is the most direct route to reducing compressed air waste.

The Commercial Impact of Pneumatic Inefficiency

Energy Cost Translation

Compressed air generation acts as a massive energy drain within any industrial plant. A seemingly minor 10-15% drop in pump efficiency scales into thousands of dollars in wasted compressor energy annually. When equipment requires more air to move the same volume of fluid, compressors run longer. They draw more peak-load electricity and require more frequent servicing.

Consider a standard facility running multiple transfer lines. If internal wear causes excessive air consumption, the system draws heavily on the compressor plant. You pay for electricity to generate air, only to bleed it through inefficient mechanical components. Upgrading to a High Efficiency Pneumatic Pump directly addresses this waste by optimizing the SCFM-to-GPM ratio.

Carbon Emissions & Compliance

Regulators increasingly scrutinize industrial energy consumption. Excessive compressed air usage directly links to higher carbon emissions. Organizations like the Department of Energy (DOE) and the Hydraulic Institute continuously publish stringent guidelines. They aim to curb industrial energy waste. Modern facilities must adhere to these environmental targets. Continuing to operate inefficient air-driven equipment risks falling out of compliance. It also jeopardizes internal corporate sustainability goals. Cutting air waste reduces your immediate carbon footprint.

The Purchase Price Illusion

Evaluating equipment based on purchase price rather than its Best Efficiency Point (BEP) leads to negative long-term financial outcomes. Cheap units often feature outdated air valve technologies. They consume significantly more air per cycle. Over a five-year lifespan, the initial savings evaporate completely. The excess electricity required to run the compressor far outweighs the initial capital discount. Smart procurement focuses on lifecycle energy consumption. You must calculate the exact cost of the air required to operate the unit over thousands of hours.

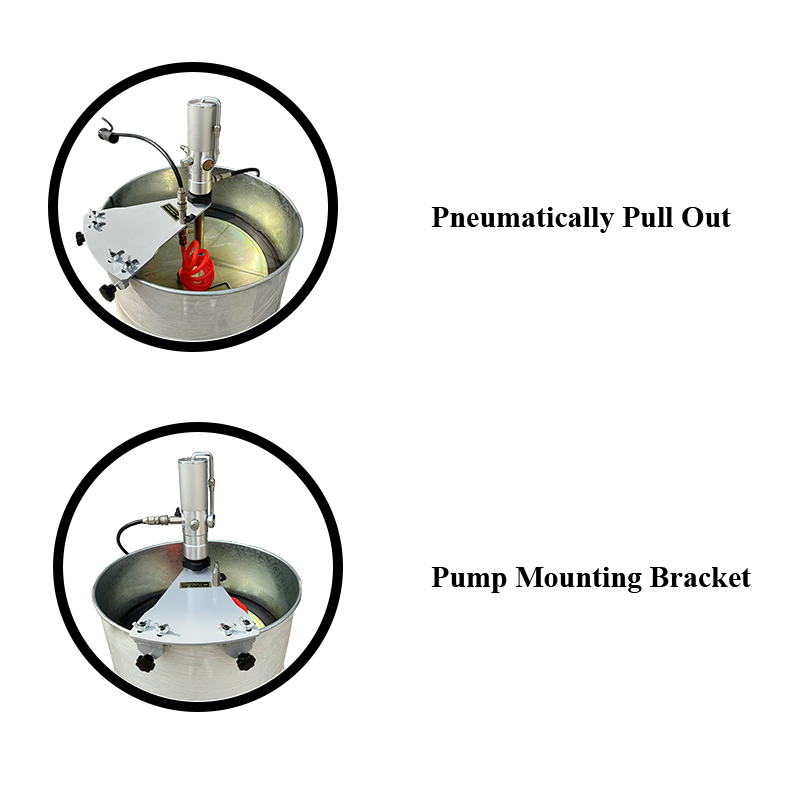

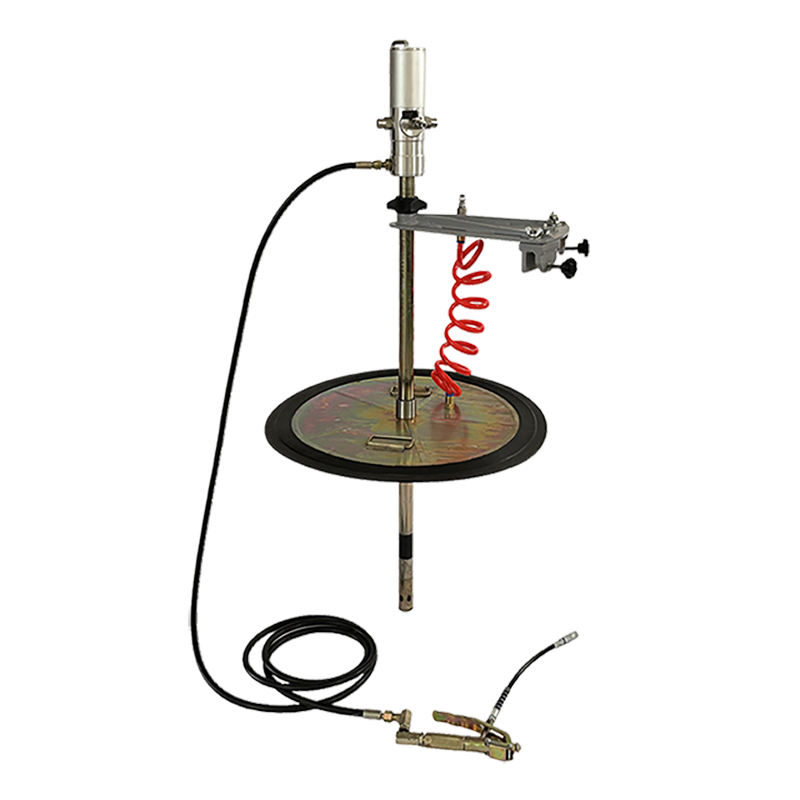

Pneumatic Pump System Evaluation

Core Fluid and Mechanical Variables

Fluid Viscosity and Specific Gravity

Fluid characteristics radically alter expected performance curves. Thicker, heavier fluids require exponentially more energy to move. Viscosity creates internal friction against pipe walls and pump cavities. Specific gravity adds literal weight to every stroke.

When you pump heavy sludge compared to water, the internal mechanics work harder. The unit requires higher air pressure to maintain a steady flow rate. Operators must adjust performance expectations based on the fluid. Using factory water-test curves for high-viscosity applications results in severe miscalculations.

Internal Wear and Volumetric Loss

Mechanical degradation silently destroys efficiency. The constant cycling of fluid and air inevitably breaks down internal components. Common failure points include:

  1. Ball Valves: Abrasive fluids erode the spherical shape, preventing a perfect seal during strokes.
  2. Valve Seats: Chemical attack and physical impact wear down the seating area.
  3. Diaphragms: Millions of flex cycles cause elastomeric fatigue and stretching.

Worn sealing surfaces lead to a condition called "slip." Slip occurs when fluid bypasses internal check valves. The pump strokes and consumes full air volume, but yields less fluid per cycle. This internal bypass artificially inflates air consumption. You spend money cycling the equipment without moving the product.

Operating Pressure vs. Discharge Head

Matching the air supply pressure exactly to the required discharge head remains crucial. Over-pressurization ranks as a primary source of wasted energy. If a system requires 50 PSI to overcome the discharge head, supplying 100 PSI wastes massive amounts of compressed air.

Excess pressure does not translate into better performance once the system hits its physical limits. It simply exhausts usable energy into the atmosphere. Installing point-of-use regulators ensures the unit receives only the exact pressure necessary for the task.

The System-Level Approach: Beyond the Pump

Air Supply Infrastructure

Even a perfectly engineered Pneumatic Pump will underperform if the surrounding infrastructure restricts it. Systemic bottlenecks sabotage cyclic stability. Look out for these detrimental elements:

  • Undersized air lines starving the unit of required SCFM.
  • Clogged particulate filters restricting air flow.
  • Unregulated air pressure causing erratic stroke speeds.

Point-of-use regulators are mandatory. They stabilize the inbound air, ensuring smooth, predictable operation. Without clean, properly regulated air, mechanical efficiency plummets.

Suction and Piping Design

Restrictive suction lines destroy mechanical efficiency. Undersized pipes, excessive elbows, and long suction runs force the equipment to pull harder. This induces cavitation or fluid starvation. Cavitation occurs when pressure drops so low that fluid vaporizes into bubbles. These bubbles violently collapse, damaging internal components and ruining volumetric output. Efficient system design demands short, straight, and properly sized suction piping to feed the fluid chamber effortlessly.

Environmental Factors

Rapid air expansion causes sudden temperature drops. In humid environments, this creates icing and freezing inside the exhaust mufflers. Ice build-up chokes performance by restricting the exhaust stroke. The equipment begins cycling erratically. Sometimes, it stalls completely. Upgrading exhaust systems or treating compressed air through specialized dryers prevents this freezing. Environmental conditions directly dictate how consistently the air distribution valve operates.

Evaluating a High Efficiency Pneumatic Pump (Selection Framework)

Air Distribution System (ADS) Technology

The core of pneumatic efficiency lies in the Air Distribution System (ADS). You must assess mechanized versus electronic air valves. Look for stall-free, ice-free designs. Advanced ADS technology physically prevents air blow-by at the end of a stroke. Older designs allow compressed air to bypass directly into the exhaust during the valve shift. Modern engineered systems snap shut cleanly. They use every cubic foot of air exclusively for fluid displacement.

Dead-Head Capabilities

Evaluate how the equipment behaves when operators close discharge valves. True high-efficiency models excel at dead-heading. When downstream pressure equals internal pressure, the unit should stall safely. It must hold pressure with zero continuous air consumption. Inferior designs leak air continuously while stalled. They bleed your compressor dry even when fluid transfer stops.

Feature-to-Outcome Mapping

Understanding exactly how design features translate into financial and operational outcomes simplifies the procurement process. Use the following feature-to-outcome mapping chart to evaluate different models.

Engineering Feature Operational Outcome Efficiency Impact
Optimized Stroke Length Reduced diaphragm flex stress Lower air consumption per cycle and longer lifespan.
Bolted Construction Superior seal integrity compared to clamped designs Prevents internal pressure routing leaks, maintaining volumetric yield.
Ceramic Air Valve Spools Frictionless, wear-resistant shifting Eliminates mid-stroke stalling and prevents blow-by waste.
Integrated Muffler Expansion Slower exhaust velocity Prevents icing in humid conditions, ensuring steady cycle rates.

Scalability & Standardization

Can the selected model standardize across different facility processes? Lowering your spare parts inventory depends on standardization. Selecting a highly adaptable, efficient model allows you to deploy it for chemicals, wastewater, and general transfer. This reduces maintenance training time. It also minimizes the capital tied up in replacement components.

Implementation Realities and Field Troubleshooting

Baseline Testing

You cannot improve what you do not measure. Installing flow meters and air pressure gauges during commissioning is an absolute necessity. These instruments establish a baseline performance metric. Record the exact SCFM required to achieve the target GPM on day one. When performance inevitably shifts months later, you have concrete data. This data proves whether the issue stems from fluid changes, air supply drops, or mechanical wear.

Predictive vs. Reactive Maintenance

Relying on reactive maintenance guarantees sudden efficiency drops. Replace wear components based on actual stroke counts, not arbitrary calendar days. Implement regular inspection intervals for mufflers, air filters, and elastomers.

Modern sensors track cycle counts accurately. A diaphragm might last 20 million cycles. If you reach that number in four months, waiting for an annual rebuild guarantees eight months of wasted air. Predictive maintenance stops volumetric loss before it impacts your utility bills.

Risk Mitigation

Address the "operator adjustment" risk immediately. Floor technicians frequently manually crank up air regulators to solve perceived flow issues. This action destroys efficiency. Increasing air pressure masks the root problem, which is usually a blocked pipe or a torn diaphragm. Facility managers must lock out regulators or provide strict training. Operators need to understand that excess air does not fix broken hardware. It merely strains the central compressor and spikes electricity usage.

Conclusion

Pneumatic efficiency is not a static number printed on a generic spec sheet. It remains a dynamic ratio of fluid output to air consumption. This ratio relies heavily on fluid properties, system architecture, and progressive mechanical wear. Ignoring the surrounding infrastructure guarantees poor performance regardless of the unit you purchase.

When entering the procurement phase, demand verified data. Prioritize manufacturers willing to provide precise SCFM-to-GPM performance curves. Ask for transparent lifecycle energy calculators over vendors competing solely on upfront unit price.

Audit your current compressed air usage at the regulator level immediately. Compare your existing consumption against the performance charts of modern, engineered alternatives. Taking these steps transforms a historically wasteful utility into an optimized, highly controlled manufacturing asset.

FAQ

Q: How is efficiency measured in a pneumatic pump?

A: It is typically measured by the ratio of fluid volume moved (GPM or LPM) against the volume of compressed air consumed (SCFM or Nm³/hr) at a specific discharge head. A higher fluid output for a lower volume of air indicates better efficiency.

Q: Does increasing air pressure make a pneumatic pump more efficient?

A: No. While it may increase the flow rate up to a certain point, over-pressurizing typically wastes compressed air. It increases mechanical wear and decreases overall volumetric efficiency. Matching supply pressure to actual demand is critical.

Q: Why is my pneumatic pump consuming air but not pumping fluid?

A: This usually indicates severe internal wear, such as a ruptured diaphragm or failed check valves. It can also stem from cavitation caused by a blocked suction line, or a stalled air distribution valve allowing continuous blow-by into the exhaust.

Q: Are air-operated double diaphragm (AODD) pumps energy efficient?

A: Inherently, using compressed air is less energy-efficient than direct electric drives. However, within pneumatic categories, choosing a modern model with an optimized air distribution valve can reduce air consumption by up to 30-50% compared to legacy designs.
