Industrial processes often require fluid transfer in environments where electricity introduces severe risks. A Pneumatic Pump (or Air Operated Pump) relies entirely on compressed air rather than electric motors to generate fluid movement. Plant managers and system engineers typically transition to these specialized systems out of necessity. They choose them when conventional electrical pumps pose serious safety hazards. They also rely on them when handling highly viscous, abrasive, or shear-sensitive liquids. Choosing the wrong pump technology can lead to catastrophic failures or costly operational downtime. Therefore, understanding the correct fluid handling mechanics matters immensely for facility safety and production reliability. This article outlines primary applications across diverse industries. We will clarify the core operational advantages. You will also get an evidence-based framework. This guide will help you evaluate if an air-operated setup fits your specific facility requirements.
Understanding the internal mechanics helps you optimize performance. The system relies entirely on fluid dynamics and air pressure. It does not use spinning impellers. It does not require complex electrical wiring.
The heart of the system is the air distribution valve. This component directs pressurized air into alternate chambers. Most systems utilize flexible diaphragms or heavy-duty pistons. When compressed air enters the central block, the valve shifts. It forces air behind one diaphragm. This action pushes the diaphragm outward. Simultaneously, a connecting rod pulls the opposite diaphragm inward. This alternating cycle creates the continuous pumping action.
The movement of the diaphragms changes the internal volume. This change creates a pressure differential. The differential facilitates fluid movement through a precise sequence:
These pumps feature an incredibly simple architecture. They eliminate close-fitting sliding parts. They do not require mechanical seals or packing. This design drastically reduces internal wear points. You can handle heavy particulates without damaging internal components. Conventional pumps suffer from seal failures when abrasive solids enter the housing. An air-driven setup avoids this entirely.
Best Practice: Always inspect check valve balls and seats during routine maintenance. Worn seats prevent a proper seal. This reduces your suction lift capability.
Different industries leverage air-driven technology for distinct reasons. Facility managers rely on them to solve complex transfer challenges. They excel in environments where standard electrical units fail.
Chemical plants transfer aggressive acids, solvents, and corrosive fluids daily. Material compatibility is non-negotiable here. You can configure pump bodies using PTFE, Polypropylene, or Stainless Steel. These materials resist chemical attack. The seal-less design ensures leak-free operation. This protects workers from toxic spills.
Volatile atmospheres demand inherently safe equipment. Refineries and offshore rigs use them for fuel transfer. They also handle tank cleaning and offloading. The non-electric operation eliminates sparking risks. This makes them fully compliant with strict safety regulations.
Wastewater treatment plants move abrasive slurries and suspended solids. They handle high-viscosity sludge continuously. Impeller-based pumps degrade quickly under these conditions. Air-driven systems move these tough fluids easily. The wide internal clearances allow large solids to pass safely.
Engineers also scale this technology down. Miniaturized pneumatic systems exist in medical devices. Hospitals use pneumatic compression pumps for lymphedema therapy. Microfluidic applications rely on them too. They require exact pressure control. They also need operation without heat generation. Heat destroys delicate biological samples. Air-driven units prevent thermal damage entirely.
Application Summary Chart
| Industry Sector | Typical Fluid Handled | Core Equipment Advantage |
|---|---|---|
| Chemical Processing | Aggressive acids, Solvents | Seal-less design prevents toxic leaks. |
| Oil & Gas | Fuels, Volatile liquids | Spark-free operation ensures site safety. |
| Wastewater | Thick sludge, Abrasive solids | Handles large particulates without jamming. |
| Medical & Precision | Biological fluids, Therapy air | Precise control without generating heat. |
System engineers face difficult choices during facility upgrades. Electric centrifugal systems work well for clean water. However, they struggle with specialized industrial challenges. Transitioning to air power solves several critical operational problems.
Many manufacturing processes involve delicate products. Food processing facilities pump yogurt, sauces, and soft solids. Polymer manufacturing involves complex chemical chains. High-speed rotary pumps agitate these fluids violently. The rapid spinning degrades the product quality. It changes the fluid viscosity. Air-driven systems provide a gentle pumping action. The fluid flows smoothly without excessive turbulence. This preserves the integrity of shear-sensitive materials.
A closed discharge valve creates a massive problem for standard pumps. We call this situation a "deadhead." If someone closes a valve while an electric pump runs, pressure spikes rapidly. The fluid overheats. The pump eventually suffers catastrophic mechanical failure. Facilities install complex bypass loops to prevent this.
An air-driven system handles deadheading perfectly. The pump simply stalls. It stops moving when the discharge pressure equals the incoming air supply pressure. The system holds the pressure safely. When you open the valve again, the pump automatically resumes operation. You do not need expensive pressure relief valves.
Many system layouts make flooded suction impossible. The fluid source sits below the pump level. Electric units often require manual priming before starting. They also overheat immediately if the fluid runs out.
Conversely, air-driven units solve these physical layout issues effortlessly.
Selecting the right equipment requires careful analysis. You cannot simply guess the required specifications. A misapplied unit leads to poor performance. It also wastes valuable utility resources. We recommend evaluating four distinct criteria.
You must map your desired fluid output accurately. Compare this requirement to your available compressed air capacity. You measure fluid output in Gallons Per Minute (GPM). You measure air capacity in Cubic Feet per Minute (CFM) and Pounds per Square Inch (PSI). Undersized compressors cause major issues. They lead to pump stalling. They result in lost production. Always verify your plant air system has enough reserve capacity.
The "wetted path" refers to any component touching the fluid. You must evaluate the pump body and the elastomers carefully. Match these materials against the chemical makeup of your liquid. You must also consider the fluid temperature.
Material Selection Table
| Component Material | Best Used For | Limitations |
|---|---|---|
| Stainless Steel | High temperatures, abrasive chemicals | Heavier weight, higher initial price. |
| Aluminum | Oils, non-corrosive industrial fluids | Cannot handle harsh acids or alkalis. |
| Polypropylene | Strong acids, harsh corrosive bases | Lower temperature limits than metals. |
| PTFE (Teflon) | Virtually all aggressive chemicals | Slightly reduces maximum flow capacity. |
Facilities must adhere to strict geographic regulations. Verify your compliance needs before purchasing. ATEX certifications remain mandatory for explosive environments. FDA-compliant materials matter for food and beverage plants. CE marks indicate adherence to European safety standards. Failing to meet these standards invites severe regulatory fines.
We must acknowledge compressed air demands significant energy to produce. Generating it requires heavy utility usage. You should evaluate newer air-valve designs available on the market. These modern designs minimize air consumption during each stroke. They drastically improve your overall energy efficiency profile. Finding an optimized valve reduces your monthly facility energy bills.
Common Mistake: Many buyers purchase a larger pump than necessary. Oversizing wastes compressed air. Always size the equipment as close to your actual flow requirement as possible.
Even the best equipment fails if installed improperly. Proper rollout ensures long-term reliability. You must mitigate several specific operational risks during installation.
Poor air quality ruins systems quickly. There is a high risk of premature air valve failure due to wet, dirty, or unlubricated air. Moisture causes internal rusting. Particulates scratch the precision valve spools.

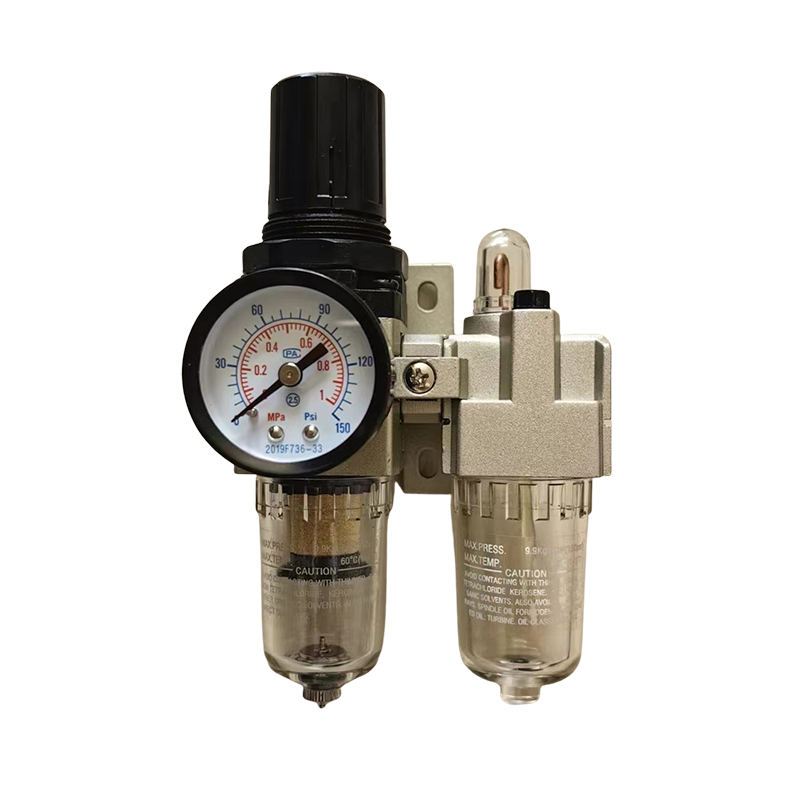

You must mandate air treatment accessories. We strongly advise installing specialized filtration. Protecting your Air Operated Pump requires a proper Filter, Regulator, and Lubricator (FRL) unit. This device cleans the air. It regulates the exact pressure needed. It also adds a fine mist of oil if the internal components require lubrication.
High cycle rates cause compressed air to expand rapidly. This rapid expansion creates a severe temperature drop. It drops the temperature inside the exhaust muffler below freezing. Any moisture in the air supply turns to ice. The ice builds up and blocks the exhaust port. This stalls the pump completely.
You can prevent exhaust icing by drying your plant air. Using desiccant dryers at the compressor helps. You can also pipe the exhaust air out of the cold environment.
Diaphragm action inherently creates a pulsating fluid flow. The liquid surges with every stroke. This pulsation causes pipes to vibrate violently. We call this phenomenon water hammer. It damages downstream instrumentation. It loosens pipe fittings over time.
You must address this flow characteristic. Install pulsation dampeners directly on the discharge manifold. These devices absorb the pressure spikes. They deliver a smooth, continuous fluid flow to the rest of your process.
An optimally configured pneumatic system transforms your operational capabilities. A Pneumatic Pump offers unmatched safety profiles. It provides incredible handling versatility for difficult fluids. It successfully moves shear-sensitive products, heavy sludge, and volatile chemicals safely. However, this success hinges on proper facility infrastructure. Your plant air system must properly support the equipment.
To ensure a successful deployment, follow these next steps:
A: They are mechanically efficient. However, they rely on compressed air. Generating this air requires significant utility energy. You can optimize total efficiency easily. Use modern air valve technology to reduce waste. Also, eliminate system air leaks in your piping. Properly sized compressors ensure better overall performance. Avoid over-pressurizing your main air lines.
A: Yes, they excel at moving solid particles. Diaphragm styles are especially effective. They lack tight internal tolerances. This wide-open design allows solids to pass easily. You must ensure the check valves are sized correctly for your specific solids. Doing so prevents internal clogs and eliminates mechanical damage.
A: It operates safely without damage. Electric centrifugal pumps rely on pumped fluids for cooling. They overheat quickly when dry. An air-driven system does not have this limitation. It continues running without heat buildup. You avoid costly mechanical seal failures and melted internal components entirely.
A: You adjust the flow rate easily. Simply regulate the incoming compressed air pressure. You can also restrict the air exhaust valve. This method changes the cycle speed safely. It eliminates the need for expensive electrical controllers. You completely avoid installing complex Variable Frequency Drives.
