JL9714

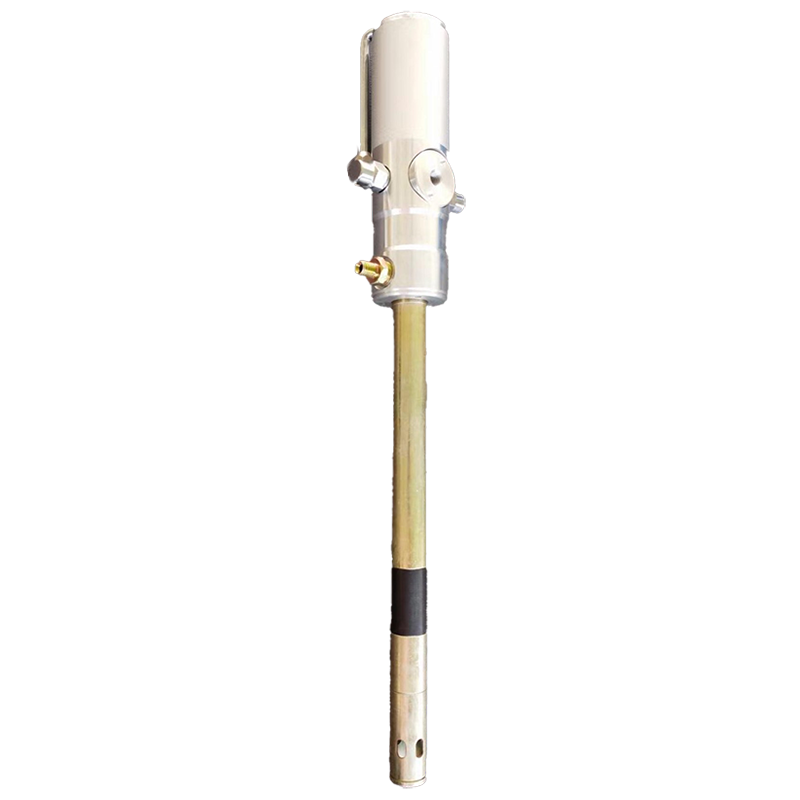

This heavy-duty 50:1 pneumatic grease pump is designed to provide reliable and high-pressure lubrication for workshops and industrial maintenance. With a 50:1 compression ratio, this air operated grease pump dispenses grease up to 50 times the air input pressure. With a steady output, it provides a flow rate of 800g per minute. The pump features a 32mm wide suction tube and a customized tube length from 410mm to 910mm for different container sizes. This pneumatic pump is ideal for mobile grease systems in automotive, agricultural, construction, and other industrial uses.
Technical Parameters:
Model NO: JL9714
Working pressure: 3-7 Bar (43-100 PSI)
Rating pressure: 5 Bar (71 PSI)
Air consumption: 150 L/min
Flow rate: 800 g/min
Suction tube length: 410-940mm
Suction tube diameter: 32mm
Noise level: 82dB
Air inlet connection: G1/4"
Grease outlet connection: G1/4"
This heavy-duty 50:1 pneumatic grease pump is designed to provide reliable and high-pressure lubrication for workshops and industrial maintenance. With a 50:1 compression ratio, this air operated grease pump dispenses grease up to 50 times the air input pressure. With a steady output, it provides a flow rate of 800g per minute. The pump features a 32mm wide suction tube and a customized tube length from 410mm to 910mm for different container sizes. This pneumatic pump is ideal for mobile grease systems in automotive, agricultural, construction, and other industrial uses.
Technical Parameters:
Model NO: JL9714
Working pressure: 3-7 Bar (43-100 PSI)
Rating pressure: 5 Bar (71 PSI)
Air consumption: 150 L/min
Flow rate: 800 g/min
Suction tube length: 410-940mm
Suction tube diameter: 32mm
Noise level: 82dB
Air inlet connection: G1/4"
Grease outlet connection: G1/4"
