JL9711

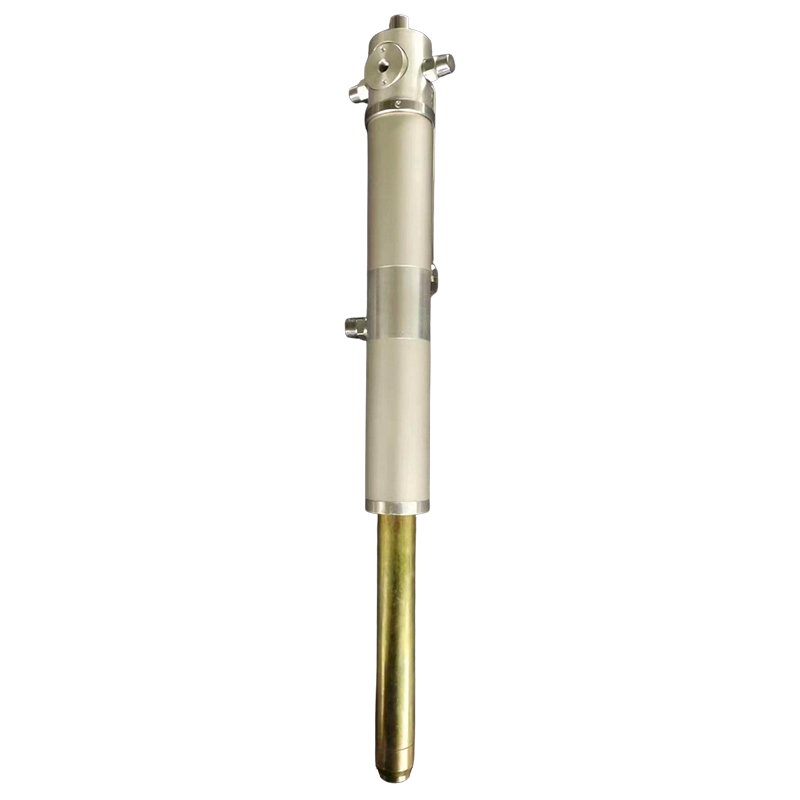

This pneumatic oil pump is designed with 1:1 ratio for the efficient transfer of low to medium viscosity fluids over relatively short distances. Ideal for applications such as oil dispensing from drums or tanks, the suction tube is also available in lengths between 270mm to 900mm to suit various sizes of containers. With a flow rate of 35 litre per minute, it delivers fast, accurate, and consistent oil dispensing for workshop, vehicle maintenance, and a wide range of automotive or industrial applications.
Technical Parameters:
Model NO: JL9711
Working pressure: 3-7 Bar (43-100 PSI)
Rating pressure: 5 Bar (71 PSI)
Air consumption: 240 L/min
Flow rate: 35 L/min
Suction tube length: 270-940mm
Max viscosity of oil applicable: 120SAE
Noise level: 82dB
Air inlet connection: G1/4’’
Oil outlet connection: G3/4’’
With a flow rate of 35L/min, this pneumatic pump transfers fluids faster than standard manual pumps. This speed is critical for automotive repair shops, factories, and maintenance facilities where quick fluid dispensing minimizes downtime.
The pump’s suction tube is available in standard lengths from 270 mm to 900 mm to match different drum and barrel heights. We can also customize the tube length to your container size on request.
Built with heavy-duty materials, the pump withstands continuous use in harsh environments. Its operating noise level is limited to 82dB, creating a more comfortable workspace for technicians and staff.
The pump handles fluids with viscosities up to 120SAE, making it suitable for low to medium viscosity oils, hydraulic fluids, and lubricants. This versatility makes it a ideal solution for various applications in automotive, industrial, and marine settings.
The pump operates with a working pressure of 3-7 Bar (43-100 PSI) and has a rated pressure of 5 Bar (71 PSI). For optimal performance, ensure your compressed air supply is clean, dry, and regulated within this pressure range.
No, the pump is designed for low to medium viscosity fluids up to 120SAE. For high-viscosity fluids like grease, choose a pump with a high pressure ratio.
Installation is simple: Connect the air inlet (G1/4") to your compressed air system using a compatible hose, attach the oil outlet (G3/4’’) to the dispensing nozzle or hose. Ensure all connections are tight to prevent air or fluid leaks.
The pump consumes 240L/min of air during operation. Make sure your compressed air system can supply this volume to maintain consistent performance.
