How Do You Choose The Right Pneumatic Pump?

Views: 0     Author: Site Editor     Publish Time: 2026-06-10      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Selecting the wrong pump doesn't just reduce fluid flow. It causes catastrophic seal failures. Inflated compressed air costs and unplanned line downtime quickly follow. Industrial operators often underestimate the complexities of fluid transfer. You must match the equipment to the exact fluid dynamics and pressure limits of your operation. Air-driven systems are inherently safer for hazardous explosion-proof zones and cleanroom environments. However, their efficiency relies on precise engineering alignments. We will walk you through a systematic, engineering-level framework to make the right choice. You will learn how to evaluate fluid characteristics and match component materials accurately. We will also show you how to size performance perfectly for your facility. By the end, you will know exactly how to integrate a reliable solution without falling into common specification traps. You will confidently deploy systems built for demanding industrial environments.

Key Takeaways

  • Fluid Viscosity Dictates Valve Type: 20,000 cps acts as a standard threshold between standard check valves and rotary valves.

  • Evaluate SCFM, Not Just CFM: Standardized flow metrics prevent chronic underpowering of the pump.

  • Material Pairing is Critical: Matching the pump body and diaphragm elastomers correctly can extend operational lifespan by 3x to 5x.

  • System Health Requires FRL: A standalone pump will fail prematurely without an upstream Air Preparation Unit (Filter, Regulator, Lubricator).

1. Define Core Application Requirements and Fluid Dynamics

Categorize the application first. Are you performing high-volume bulk transfer? Maybe you need continuous closed-loop circulation. Or perhaps your process demands high-precision metering. Your primary pumping objective dictates the foundational design. Understanding this baseline requirement prevents severe operational mismatches down the road.

Next, consider fluid viscosity. Engineers rely on the 20,000 cps rule. Under 20,000 cps, fluids are relatively clean and flow easily. Standard check valves handle these perfectly. Over 20,000 cps, you enter the realm of thick slurries and heavy viscous fluids. You must use rotary valves or specialized heavy-duty ball valves here. They prevent severe clogging and eliminate massive pressure drops. Failing to respect this threshold guarantees inconsistent flow rates.

Evaluate shear sensitivity next. Some fluids degrade under high mechanical shear. Biological media, delicate emulsions, and certain polymers lose their structural integrity if agitated too violently. You need low-shear mechanisms for these delicate materials. Always determine the maximum solid-handling diameter. If particulates exceed valve clearances, you risk catastrophic valve lock-up. When evaluating a Pneumatic Pump, precision regarding these physical properties ensures smooth operations. Overlooking particulate size remains a leading cause of premature hardware destruction.

Fluid dynamics dictate everything. When assessing shear-sensitive liquids, realize high-velocity impacts inside the chamber destroy molecular bonds. You cannot pump latex or delicate food products using aggressive impeller actions. You must utilize gentle, low-shear displacement methods. Furthermore, specific gravity affects suction lift capabilities. A heavier fluid demands more vacuum energy just to enter the suction manifold. You must calculate the specific gravity before attempting to pull fluids from underground tanks.

2. Match the Air Driven Pump Architecture to the Environment

Architecture matters immensely. You generally choose between diaphragm and piston mechanisms. Each serves highly distinct operational purposes.

Air-Operated Double Diaphragm (AODD) pumps bring unique strengths. They can dead-head safely without sustaining damage. They are self-priming and can run dry. Because they lack electrical sparking, they are naturally explosion-proof. You can deploy them safely near volatile solvents. However, they have limitations. They produce an inherent pulsation flow. You will likely need active dampeners for smooth fluid delivery. They also offer lower precision for micro-dosing applications.

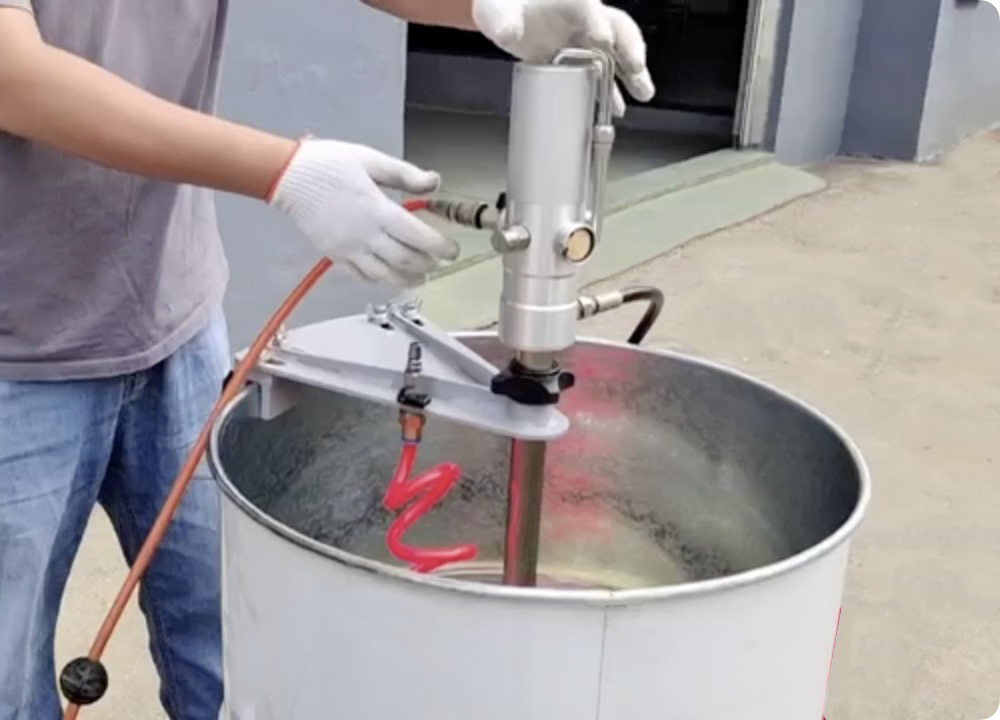

Pneumatic piston or plunger pumps serve different needs. They are exceptional for high-pressure fluid delivery. You get highly accurate micro-dosing, sometimes down to 0.1ml in lab settings. Yet, they are highly sensitive to abrasive particulates. Granular materials will score the cylinder walls quickly. They also demand intensive, frequent seal maintenance.

Always verify environmental compliance and safety validations. Purely air-driven systems shine in ATEX zones. They thrive in limit-power facilities and high-washdown environments. Industries where FDA or sanitary requirements strictly prohibit electrical hazard risks rely heavily on them. Choosing the right Air Driven Pump architecture guarantees regulatory compliance and operational safety.

3. Size Performance Specs: Avoiding the "Air Starvation" Trap

Air starvation destroys efficiency. You must evaluate air consumption accurately. Never rely solely on CFM (Cubic Feet per Minute). You must use SCFM (Standard Cubic Feet per Minute). SCFM is calibrated to sea level, 68°F, and 36% humidity. It provides a standardized baseline regardless of your physical location. Evaluating air consumption based on SCFM is the only accurate way to compare models. It ensures you size your facility's air compressor correctly. Chronic underpowering happens when engineers ignore atmospheric variables.

Flow Metric Comparison
MetricDefinitionBest Use Case
CFMActual volumetric flow rate under varying conditions.Basic, unregulated estimations.
SCFMStandardized volumetric flow rate (Sea level, 68°F, 36% humidity).Precise compressor sizing and model comparison.

Next, analyze the performance curve. Look closely at the relationship between flow rate (LPM/GPM) and head pressure. Flow rate drops exponentially as head pressure increases. A pump rated for 50 GPM at zero pressure might only deliver 15 GPM at 60 PSI head pressure. You must map your exact piping system resistance against the manufacturer's published curve.

Consider your duty cycle and thermal realities. Is the operation intermittent or continuous? Continuous running requires heavy-duty air distribution systems. You must prevent mid-cycle stalling. Also, address the risk of mechanical heat buildup. Heat degrades rubber components rapidly. Conversely, rapid air expansion at the exhaust can cause freezing. Moisture in the air line crystallizes instantly. You must manage both ends of the thermal spectrum.

Air starvation manifests through sluggish operation and eventual stalling. When the air compressor cannot replenish the receiver tank fast enough, the supply pressure drops. This drop causes the internal air valve to center and lock. You must map your entire air network. Account for pressure drops across every elbow, valve, and fifty-foot hose segment leading to the installation site. Your compressor might generate 100 PSI, but line losses could deliver only 70 PSI to the equipment. This discrepancy radically alters the actual flow rate you achieve on the factory floor.

4. Chemical Compatibility: Pairing Pump Bodies and Elastomers

You must pair materials correctly. The wrong choice dissolves your equipment from the inside out. Chemical compatibility dictates the physical survival of your system. Let's start with the pump body and housing selection.

  1. Polypropylene (PP) / PVDF: These plastics are mandatory for highly aggressive acids and alkalis. They handle harsh electroplating chemicals flawlessly. They resist chemical attack where metals would quickly corrode.

  2. 316 Stainless Steel: This metal is required for high heat and volatile solvents. It provides strict FDA-compliant routing for food, beverage, or pharmaceutical processes. It withstands intense sterilization procedures easily.

  3. Cast Iron and Aluminum: These metals are highly cost-effective. They work perfectly for non-corrosive industrial wastewater, inks, and standard paints. They provide rugged durability for basic industrial environments.

Next, you must pair the diaphragm and seal elastomers. The diaphragm experiences constant mechanical stress alongside chemical exposure.

  • PTFE (Teflon): Provides the ultimate chemical resistance against nearly all solvents. However, it is structurally rigid. It has a shorter flex life and often requires a backup diaphragm.

  • Santoprene: Offers an excellent cost-to-performance ratio. Use it for water, oils, and mild chemicals. It handles millions of flex cycles reliably.

  • EPDM: This rubber is optimal for ketones and alcohols. It also maintains exceptional flexibility in extreme cold temperatures.

You extend equipment life by up to five times when you match these elements properly. Never compromise on elastomer quality.

5. Assessing System Integration Realities

System integration determines long-term reliability. We must look at the actual utility cost of compressed air first. Air-operated systems are undeniably energy-intensive. You should calculate baseline utility costs carefully. Compare these expenses against alternative electric models (like EODD) for continuous-transfer applications. Sometimes, mixing pneumatic and electric systems optimizes facility efficiency. You deploy air systems for hazardous zones and electric systems for bulk continuous transfers.

Upstream dependencies cannot be ignored. A unit is only as reliable as its air supply. You must specify the need for an FRL unit (Filter, Regulator, Lubricator). The filter removes harmful moisture and oil mist. The regulator stabilizes inlet pressure perfectly. The lubricator ensures moving internal parts glide smoothly. Together, an FRL drastically reduces wear on the main air distribution valve. Skipping this component guarantees premature breakdown.

FRL Unit Component Breakdown
ComponentPrimary FunctionSystem Benefit
FilterRemoves airborne moisture, dust, and oil mist.Prevents internal corrosion and valve fouling.
RegulatorMaintains consistent upstream air pressure.Prevents over-pressurization and wasted energy.
LubricatorInjects micro-mist of oil into the air stream.Reduces friction on the air distribution valve.

Finally, establish realistic maintenance baselines. High-quality industrial diaphragms have a baseline lifespan of approximately 10,000 hours under optimal conditions. You must budget for scheduled rebuild kits. Avoid reactive replacements entirely. Scheduled maintenance prevents unexpected catastrophic failures. You keep production running smoothly when you swap wear parts proactively.

Monitoring the exhaust muffler offers profound diagnostic insights. If you notice heavy frosting or ice buildup on the exhaust, your compressed air contains excessive moisture. Rapid expansion drops the air temperature drastically, freezing the suspended water droplets. Installing a dedicated air dryer on your main compressor line eliminates this phenomenon completely. You also prevent internal rust accumulation inside the primary air motor. Consistent preventative measures keep unexpected downtime near zero.

Conclusion

You now have a strict shortlisting logic. First, validate the fluid. Check viscosity and chemical properties. Second, verify your air supply using SCFM metrics. Third, match materials precisely. Ensure the body and elastomer combination resists degradation. Finally, always install the unit with proper FRL protection.

Your next step is clear. Consult chemical resistance charts specific to your target brand. Do not guess. Request actual performance curves based on your exact required head pressure. A well-engineered fluid transfer system protects your process, your people, and your facility's bottom line.

FAQ

Q: Can a pneumatic pump run dry without being damaged?

A: Yes, Air Driven Diaphragm (AODD) pumps can run dry without catastrophic failure, unlike gear or centrifugal pumps. However, prolonged dry running wastes compressed air and accelerates diaphragm flex-wear.

Q: Why is my air driven pump stalling or freezing?

A: Stalling is usually caused by unbalanced air valve pressure or inadequate air volume (CFM). Freezing occurs when moisture in the compressed air expands rapidly at the exhaust; installing an air dryer or coalescing filter upstream resolves this.

Q: How do I minimize the pulsation in a pneumatic diaphragm pump?

A: Install an active pulsation dampener directly at the pump's discharge port to absorb the pressure spikes of the up-stroke/down-stroke cycle, achieving a near-laminar flow.
