Selecting the wrong pump for a specialized fluid leads to premature seal failure, product degradation, or catastrophic safety hazards. Industrial fluid handling presents unique operational challenges every single day. Operators cannot rely on standard equipment to safely transport aggressive liquids. Choosing a poorly matched system creates unnecessary downtime. It also introduces severe risks to workplace safety and environmental compliance.
Pneumatic Pump technology, specifically Air-Operated Double Diaphragm (AODD) design, remains the industry standard for difficult liquids. However, they are not universally applicable to every single process. Engineers must carefully evaluate the distinct limitations of air-driven units before installation.
This guide provides a definitive framework for evaluating which fluids are compatible with a pneumatic system. We explore how fluid properties directly dictate material selection. You will learn how to identify when alternative pump technologies become fundamentally required. Following these principles ensures you build a safe, reliable, and highly compliant fluid transfer system.
Process engineers face a persistent challenge when moving demanding fluids. Traditional centrifugal and gear pumps often fail under extreme conditions. Electrical components introduce sparking risks. Rotating seals wear out rapidly. These vulnerabilities make air-driven systems highly attractive for aggressive applications.
Explosive environments demand strict regulatory compliance. Standard electric motors require heavy, expensive explosion-proof enclosures. Air-driven systems completely eliminate electrical components from the fluid transfer zone. This inherent design makes them the compliance-standard choice for flammable solvents and fuels. Facilities operating within ATEX-rated environments rely on these systems to maintain absolute site safety.
Many dispensing applications require sudden starts and stops. If you close a valve on a centrifugal pump, pressure builds rapidly. This action often destroys internal seals or burns out the electric motor. Conversely, air-driven systems easily stall under pressure. They simply equalize the fluid pressure against the incoming air pressure. They sit safely in a stalled state without damaging the pump. You do not need complex pressure relief valves. This capability proves critical for manual filling lines and automated dispensing stations.
Operators frequently encounter situations where a pump loses its fluid supply. Running an electric gear pump dry destroys its mechanical seals within minutes. Air-driven systems are fundamentally different. They are entirely capable of running dry without immediate seal destruction. The internal components do not rely on the pumped fluid for lubrication. This flexibility significantly reduces operational risk during tank-emptying procedures or system priming phases.
Understanding what fluids an air-driven system can move is crucial. Their unique positive-displacement action handles specific liquid categories exceptionally well. We categorize these compatible fluids into four distinct groups.
Thick liquids strongly resist flow. Centrifugal pumps lose efficiency rapidly when handling anything thicker than water. Air-driven units excel at moving heavy gear oils, resins, thick greases, and industrial adhesives. They displace these heavy fluids using sheer mechanical force driven by compressed air.

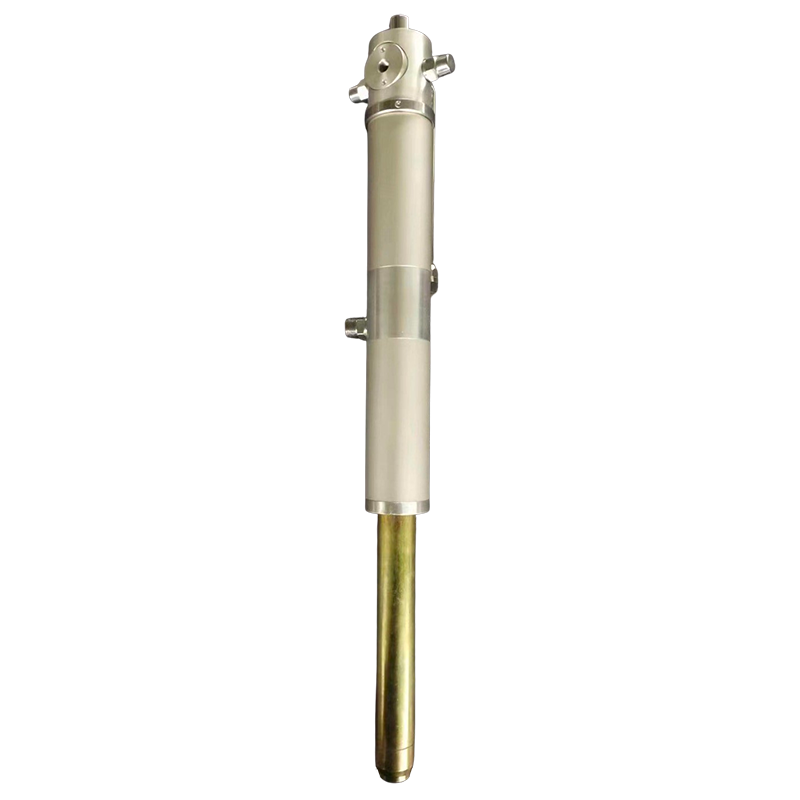

Application Note: When specifying a Pneumatic Oil Pump, operators must account for heavy friction loss. Thick oils drag against piping walls. You must install larger suction lines to prevent pump starvation and internal cavitation.
Mining and wastewater facilities move highly abrasive mixtures. Mine tailings, ceramic slip, and sludge destroy standard pumps quickly. Gear pumps feature tightly meshed metal components. Abrasive grit grinds these components down in days. Air-driven systems feature no close-fitting or rotating mechanisms. The fluid simply passes through large chambers and open check valves. This open design prevents the rapid wear seen in rotary technologies.
Chemical processing plants routinely transport strong acids, harsh caustics, and aggressive solvents. Standard cast-iron equipment corrodes instantly upon contact. Air-driven designs safely transport these dangerous liquids. You must ensure the internal elastomers and housing materials are correctly matched to the fluid. By selecting highly resistant plastics or advanced alloys, operators easily manage dangerous chemical transfers.
Certain fluids change their physical properties when agitated. High-speed centrifugal impellers whip and shear liquids heavily. This aggressive action ruins latex paints, degrades polymers, and separates food products like dairy or heavy sauces. Air-driven systems utilize a gentle displacement action. Large diaphragms push the fluid smoothly without violently spinning it. This gentle motion prevents fluid separation, aeration, and undesirable viscosity changes.
Selecting the right fluid category is only the first step. You must strictly match the internal construction materials to your specific fluid. A single mismatched component causes rapid system failure.
The "wetted path" includes every single pump component touching the fluid. You must verify the chemical resistance for each part individually. Engineers typically divide these materials into three primary groups.
| Material Category | Ideal Fluid Applications | Key Limitations |
|---|---|---|
| Plastics (Polypropylene / PVDF) | Highly corrosive acids, harsh caustics, bleach. | Strict temperature ceilings. Vulnerable to severe physical impacts. |
| Metals (Aluminum / Stainless Steel) | Abrasive slurries, strong solvents, heavy oils. | Aluminum fails catastrophically with halogenated hydrocarbons. |
| Elastomers (PTFE / Santoprene) | PTFE covers aggressive solvents. Santoprene resists grit. | PTFE has lower flex life. Santoprene has strict chemical limits. |
Manufacturers build standard performance curves using plain water. Water has a specific gravity of 1.0 and a baseline viscosity. Your process fluids will likely differ significantly. Evaluators must apply mathematical derating factors for heavier or thicker fluids. If you pump a dense ceramic slurry, the system requires more energy per stroke. You must downsize your expected volumetric output to ensure the pump meets actual production requirements.
Food and pharmaceutical fluid applications demand extreme hygiene. Standard industrial units harbor bacteria in tiny internal crevices. Facilities must assess strict compliance standards for these sectors. You should verify FDA approval, 3-A sanitary standards, or EHEDG certifications. Compliant systems feature highly polished stainless steel and specialty quick-knockdown clamps for rapid cleaning.
Even the most robust systems present unique operational bottlenecks. Understanding these engineering realities prevents costly implementation mistakes. Operators must carefully evaluate four primary constraints.
Pumping highly viscous liquids significantly alters performance expectations. As fluid viscosity increases, overall pump stroke efficiency drops dramatically. The diaphragms struggle to pull heavy fluids into the fluid chamber fast enough. Pumping thick resins often requires radically oversizing the pump. You may need a three-inch pump to achieve the flow rate a one-inch pump delivers on water. Always account for this viscosity penalty to meet strict production timelines.
Air-driven systems inherently create an interrupted, pulsating flow. The alternating diaphragm strokes push fluid in distinct surges. Many industrial processes tolerate this surging without issue. However, continuous-flow requirements face serious problems here. Precise inline metering or spray applications fail under surging pressure. If your application demands smooth delivery, you must install specialized inline pulsation dampeners.
Facilities often overlook the thermodynamic realities of compressed air. As pressurized air rapidly exhausts from the pump, it expands and cools drastically. This rapid temperature drop causes ambient moisture to freeze instantly inside the exhaust muffler. Ice blocks the air valve, completely stalling the pump. Mitigation requires dedicated infrastructure. You must supply dry, properly filtered air. Alternatively, you can specify anti-freeze exhaust mechanisms for high-humidity environments.
Compressed air acts as a highly expensive utility. Generating compressed air requires significant electrical energy at the compressor station. Using air-driven units for highly continuous, low-complexity fluid transfer creates high daily energy bills. They shine in aggressive, intermittent applications. If you simply need to move clean water continuously across a factory, electric pumps offer a substantially better long-term return on utility investment.
Choosing the correct fluid transfer technology requires decisive logic. You must know exactly when to leverage air-driven benefits and when to walk away entirely.
You should confidently select an air-driven unit under these specific conditions:
Avoid these systems if your process aligns with these restrictive scenarios:
If an air-driven unit fits your operational profile, take these immediate engineering steps:
The operational success of any pumping system relies entirely on understanding your fluid. You must map the precise physical and chemical properties of the liquid being moved. A rugged air-driven design handles aggressive slurries, thick oils, and dangerous acids flawlessly. However, selecting the wrong wetted materials guarantees rapid component failure.
Always respect the physical limits of compressed air utilities. Account for viscosity derating, mitigate flow pulsation, and prevent exhaust freezing. We strongly encourage consultation with a fluid handling engineer or application specialist. Expert guidance helps you finalize exact wetted-part selection and guarantees your sizing calculations match reality. Proper preparation ensures your transfer system runs safely for years.
A: Most standard AODD pumps can handle up to 25,000–30,000 cPs, while specialized configurations with weighted valves and oversized ports can reach up to 90,000 cPs.
A: Yes, but the internal seals (O-rings, diaphragms) must be specified correctly. Buna-N is typically standard for petroleum products, while specific synthetics may require Viton or PTFE.
A: Yes, provided the pump is properly grounded (typically requiring a conductive metal or carbon-filled plastic housing) to prevent static discharge.
A: While all pumps experience wear, pneumatic pumps handle abrasives better than most because they lack rotating seals. Wear is localized to easily replaceable check valves and diaphragms.
