Deploying the wrong manual fluid transfer equipment introduces severe operational hazards. Catastrophic seal failure, chemical cross-contamination, operator injury, and massive fluid waste are direct consequences of mismatched equipment. In demanding industrial and automotive environments, fluid dynamics—such as viscosity, corrosiveness, and flammability—dictate the exact mechanical and material requirements of your transfer tools. A standard utility pump cannot safely handle aggressive solvents, just as a lightweight siphon cannot move heavy gear oil in freezing temperatures.
The core challenge lies in navigating the complex intersection of pump mechanics and construction materials. Selecting a Hand Pump requires a systematic evaluation of the fluid's physical and chemical properties. By aligning fluid characteristics with specific pump designs, operators ensure workplace safety, maximize transfer efficiency, and drastically extend equipment longevity. This technical evaluation framework provides the precise criteria needed to match the right manual pump to any fluid application.
Material Compatibility is Non-Negotiable: The chemical makeup of the fluid dictates the required pump body and seal materials (e.g., PTFE for harsh chemicals, Nitrile for petroleum products).
Viscosity Dictates the Mechanism: High-viscosity fluids require positive displacement mechanisms (like piston, screw, or lobe designs), while low-viscosity fluids can be efficiently moved with rotary or siphon pumps.
Application Environment Defines Compliance: Pumping flammable liquids or food-grade products requires strict adherence to safety certifications (e.g., ATEX, FDA) and specialized grounding features.
Before evaluating pump models, you must analyze the specific physical and chemical properties of the fluid. Specific gravity determines the weight of the fluid relative to water, directly impacting the mechanical force required to lift it from the container. Heavier fluids demand robust internal components and shorter suction lifts to prevent operator fatigue and mechanical strain. When you are pulling dense fluids from a deep drum, the physical exertion required multiplies with every stroke if the pump is undersized.
The Viscosity Index (VI) is equally critical. Viscosity measures a fluid's resistance to flow, but the VI indicates how that viscosity changes with temperature fluctuations. Fluids with a high VI maintain their viscosity under extreme temperature shifts, allowing for consistent pump performance. Conversely, fluids with a low VI become excessively thick in cold environments, leading to pump cavitation. Cavitation occurs when the pump draws in air because the fluid cannot flow fast enough to fill the vacuum chamber. Understanding shear sensitivity is also necessary. Certain complex fluids or emulsions can degrade or separate if subjected to the aggressive mechanical shearing forces of the wrong pump mechanism.
Operational efficiency relies on matching the pump's output capacity to the daily transfer volume. Operators must calculate the required strokes-per-gallon or revolutions-per-minute (RPM) to meet production demands without causing physical exhaustion. A high-volume transfer task requires a pump that moves significant fluid per cycle. Utilizing a low-output pump for a high-volume application forces the operator into rapid, repetitive motions, increasing the risk of workplace strain injuries and decreasing overall operational efficiency. If a technician needs to move fifty gallons of hydraulic fluid, a pump delivering one pint per stroke will require four hundred strokes, which is physically unsustainable for routine operations.
The source container dictates the physical dimensions and mounting hardware of the pump. The suction tube length must reach the bottom of the container to prevent fluid waste, while the bung adapter size must perfectly match the container's opening to secure the pump and prevent hazardous vapor leaks. Industrial applications utilize a wide spectrum of containers, each requiring specific configurations.
Over-the-counter (OTC) quart bottles used in automotive settings require compact, specialized pumps with custom thread pitches.
Mid-size applications rely on 5-gallon pails, which typically need flexible suction tubes or short rigid extensions.
Heavy-duty operations draw from 55-gallon drums, demanding standard 2-inch NPT bung adapters and 36-inch suction tubes.
Large Intermediate Bulk Containers (IBC totes) require extra-long suction tubes or bottom-port gravity-fed connections to access the entire fluid volume.
Piston mechanisms operate on a straightforward up-stroke and down-stroke positive displacement principle. As the operator pulls the handle, a vacuum draws fluid into the lower chamber past a foot valve. On the downward stroke, the foot valve closes, and the piston forces the trapped fluid out through the discharge spout. This design is the industry standard for precise dispensing and handling low-to-medium viscosity fluids. Piston pumps excel at transferring light oils, antifreeze, windshield washer fluid, and standard hydraulic fluids. Their linear motion allows operators to easily measure output by counting strokes, making them ideal for applications requiring exact fluid volumes.
Rotary mechanisms utilize a hand crank to turn internal rotating vanes or gears. As the rotor turns, the vanes extend outward via centrifugal force, trapping fluid against the pump housing and sweeping it toward the discharge port. This continuous rotational movement provides a steady, uninterrupted flow, making rotary pumps highly efficient for high-volume transfers. They are optimized for medium-viscosity fluids such as diesel fuel, machine oil, and standard transmission fluid. The continuous cranking motion is generally less fatiguing for operators during large-volume transfers compared to the reciprocal motion of a piston pump.
Screw mechanisms feature internal helical screws that interlock and rotate to move fluid axially along the pump cylinder. This design provides a distinct advantage: a completely smooth, pulse-free flow. Screw pumps are engineered specifically for extremely high-viscosity fluids that would cause other mechanisms to jam or cavitate. Heavy gear lubricants, thick resins, and dense syrups are easily managed by the aggressive positive displacement of a screw pump. The mechanical advantage provided by the internal threading allows operators to move dense fluids with minimal physical exertion.
Diaphragm pumps utilize a flexible membrane connected to a lever. Pushing the lever flexes the diaphragm outward, creating a vacuum that pulls fluid into the chamber. Pulling the lever flexes the diaphragm inward, forcing the fluid out. Because the fluid only contacts the chamber and the diaphragm—never the internal mechanical linkages—this design is unparalleled for abrasive, highly viscous, or particulate-laden fluids. Suspended powders, contaminated waste oils, and aggressive slurries can be transferred without internal friction destroying the pump components.

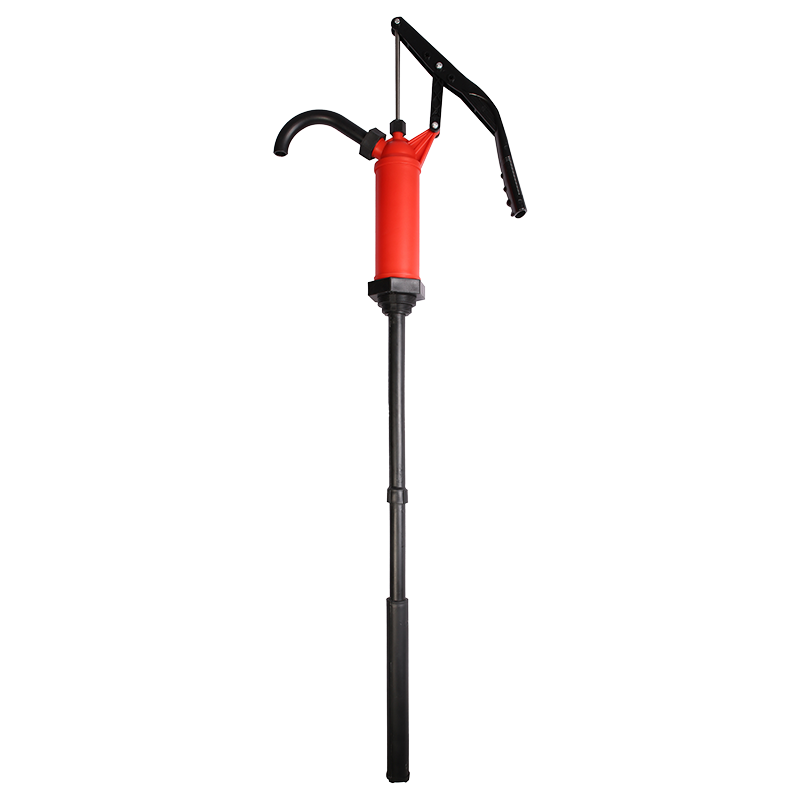

Lever-action pumps utilize a simple fulcrum mechanism to lift fluid, while siphon pumps rely on gravity and atmospheric pressure to move liquids after an initial manual prime. These designs are highly utilitarian for small-batch, low-viscosity transfers. They are lightweight, highly portable, and easy to operate. However, their reliance on simple mechanics and gravity limits their utility in heavy industrial settings. They cannot generate the suction lift required for high-viscosity fluids or deep drum extraction, restricting their use to light fluids like water, light solvents, and thin coolants.
The structural material of the pump body determines its durability, weight, and chemical resistance. Cast iron offers extreme durability and impact resistance, making it suitable for heavy-duty environments, but it is heavy and highly prone to rust if exposed to water or certain chemicals. Stainless steel provides excellent corrosion resistance and structural integrity. Polypropylene is lightweight and offers exceptional resistance to a wide range of aggressive chemicals and acids, making it a staple in chemical processing. Aluminum provides a lightweight, spark-resistant option ideal for fuels, but it suffers from severe galvanic corrosion if exposed to certain acids or alkaline solutions.
Internal seals and O-rings are the most vulnerable components in any fluid transfer system. Selecting the correct elastomer is critical to preventing leaks and environmental contamination. When elastomers interact with incompatible chemicals, they swell, crack, or dissolve entirely.
Nitrile (Buna-N): The industry standard for general petroleum products, motor oils, diesel, and water. It offers excellent tear resistance but degrades quickly if exposed to strong acids or halogenated hydrocarbons.
Viton (FKM): Engineered for high-temperature applications and aggressive solvents. Viton maintains its seal integrity when exposed to synthetic lubricants, biodiesel, and aromatic hydrocarbons.
PTFE (Teflon): The ultimate choice for highly corrosive acids, bases, and aggressive solvents. PTFE is nearly universally chemically inert, though it lacks the elastic memory of other rubbers, requiring precise machining in the pump design.
EPDM: The optimal elastomer for alkaline solutions, ketones, and automotive brake fluids. Crucially, EPDM swells and disintegrates rapidly if exposed to petroleum-based oils or fuels.
| Seal Material | Primary Advantage | Compatible Fluids | Strictly Incompatible Fluids |
|---|---|---|---|
| Nitrile (Buna-N) | Excellent petroleum resistance | Motor oil, diesel, hydraulic fluid, water | Ketones, strong acids, brake fluid |
| Viton (FKM) | High temperature & solvent resistance | Biodiesel, synthetic oils, harsh solvents | Acetone, steam, hot water |
| PTFE (Teflon) | Universal chemical inertness | Sulfuric acid, nitric acid, aggressive bases | Alkali metals, fluorine gas |
| EPDM | Resistance to polar solvents | Brake fluid, coolants, alkaline solutions | Petroleum oils, diesel, gasoline |
Utilizing a single multi-use transfer pump for multiple fluid types introduces severe cross-contamination risks. Even microscopic remnants of an incompatible fluid can trigger chemical reactions, degrade internal seals, or destroy the machinery receiving the fluid. For example, using the same pump for water-based coolants and synthetic hydraulic oils will cause emulsion, destroying the oil's lubricating properties. Facilities must implement strict protocols dedicating specific pumps to specific fluids. You must strictly dedicate one pump for waste oil extraction and a separate, clean pump for filling differentials, transfer cases, or power steering systems.
Pumping high-viscosity gear oils, such as 80W-90 differential fluid, presents significant mechanical challenges. These thick fluids resist flow, creating immense vacuum pressure inside the pump cylinder. Standard pumps will cavitate or suffer handle breakage under this strain. High-leverage piston, screw, or specialized lobe pumps are required to physically force the thick fluid through the discharge path. For automotive technicians, specialized OTC hand pumps designed specifically for extracting and transferring fluid from quart bottles directly into automotive differentials and transfer cases provide the necessary mechanical advantage in tight clearances.
Transferring hazardous chemicals requires absolute isolation of the fluid from metallic components and the external environment. Corrosive acids will rapidly dissolve cast iron, aluminum, and standard steel, leading to catastrophic leaks and toxic exposure. These applications demand fully non-metallic fluid paths, typically utilizing high-density polypropylene bodies paired with PTFE seals. Furthermore, the pump must feature a closed-system dispensing design, utilizing vapor-return lines and secure bung adapters to protect operators from inhaling hazardous fumes or suffering chemical splashes during the transfer process.
Handling gasoline, diesel, aviation fuel, or volatile solvents introduces the immediate risk of ignition via static electricity. As flammable fluids flow through a pump and discharge hose, they generate static charges. If this charge arcs, it can ignite the vapor. Pumps rated for flammable liquids must be constructed from spark-proof materials, such as aluminum or bronze. More importantly, they must feature integrated grounding wires and bonding clips. Operators must bond the pump to the receiving container and ground the entire system to safely dissipate static discharge before initiating the transfer.
Fluids intended for human consumption mandate strict regulatory compliance. Pumps handling drinking water, syrups, edible oils, or dairy products must be constructed from FDA-compliant materials, typically 316 stainless steel and food-grade silicone or PTFE seals. These pumps utilize sanitary tri-clamp fittings rather than threaded connections, as threads can harbor bacterial growth. The design must allow for rapid disassembly without tools to facilitate frequent cleaning and sterilization, adhering to Clean-In-Place (CIP) or Steam-In-Place (SIP) sanitation protocols.
The operational lifespan of an Industrial Hand Pump is directly tied to its construction quality and material selection. Facilities often weigh the utility of light-duty plastic pumps against heavy-duty metallic alternatives. Light-duty pumps serve a purpose for temporary, low-volume tasks or highly corrosive single-use applications. However, for continuous daily operations, durable cast iron, stainless steel, or reinforced composite pumps provide superior longevity. Heavy-duty construction resists the physical impacts common in industrial environments and withstands the repetitive mechanical stress of high-volume fluid transfer.
A critical factor in equipment longevity is the maintainability of the pump. Internal wear parts—such as rotary vanes, diaphragm membranes, piston rings, and O-rings—will inevitably degrade over time due to friction and chemical exposure. Selecting a pump with readily accessible rebuild kits allows maintenance teams to replace these wear parts, restoring the pump to factory performance. Pumps designed for easy maintenance feature accessible bolt patterns and modular seal cartridges, minimizing downtime and extending the functional life of the equipment.
Manual fluid transfer requires physical exertion, making ergonomics a vital consideration for daily operations. Poorly designed pumps force operators into awkward postures and require excessive force, leading to repetitive strain injuries and decreased productivity. Premium pumps incorporate engineered handle designs, optimized stroke lengths, and high mechanical advantage ratios. A longer lever arm on a piston pump or a smoothly geared crank on a rotary pump significantly reduces the physical force required to move heavy fluids, improving daily operational efficiency and protecting worker health.
Seal degradation is the primary cause of pump failure. When elastomers interact with incompatible chemicals, they swell, crack, or dissolve, leading to external leaks and a loss of suction. The primary mitigation strategy is verifying chemical compatibility charts prior to deployment. Maintenance protocols must include routine seal inspections. Operators should visually inspect the pump shaft and discharge spout for weeping fluid before each use. Implementing a proactive seal replacement schedule based on transfer volume prevents unexpected failures during critical operations.
Cavitation occurs when the pump mechanism moves faster than the fluid can flow into the vacuum chamber, creating air pockets that collapse and damage internal components. This risk escalates in cold environments, as low temperatures decrease a fluid's Viscosity Index stability, causing it to thicken significantly. Mitigation tactics include operating the pump at a slower, deliberate pace to allow the fluid time to fill the chamber. For extreme cold-weather operations, storing fluids in temperature-controlled environments or utilizing heated drum jackets ensures the fluid remains at a pumpable viscosity.
Improper storage drastically reduces a pump's lifespan. Leaving aggressive chemicals or hardening fluids inside the pump chamber between uses causes internal corrosion, seal rot, and mechanical seizing. Fluids like resins or paints will cure inside the mechanism, permanently destroying the pump. Best practices dictate flushing the pump with a compatible neutral solvent or light oil after completing a transfer. Pumps should be stored in a clean, dry environment, with the discharge spout capped to prevent environmental contamination and internal oxidation.
There is no universal manual fluid transfer solution. Successful, safe, and efficient fluid transfer relies entirely on matching the pump's internal mechanism and wetted materials to the specific chemical and physical properties of the target fluid. Ignoring these technical requirements guarantees equipment failure, fluid contamination, and safety hazards.
To implement a safe fluid transfer protocol, execute the following steps:
Consult the Material Safety Data Sheets (MSDS) for all fluids in your facility to identify chemical makeup and viscosity.
Cross-reference these chemical profiles with manufacturer compatibility charts to verify seal and body material integrity.
Calculate your required transfer volume and identify the source container to dictate the pump's size, mounting hardware, and suction tube length.
Request detailed technical specifications and confirm the availability of maintenance rebuild kits from your equipment suppliers before finalizing deployment.
A: Using a single pump for multiple fluids introduces severe cross-contamination risks. Mixing incompatible chemicals causes hazardous reactions, degrades seals, and destroys the machinery receiving the fluid. Always dedicate specific pumps to specific fluid categories. For example, strictly dedicate one unit for waste oil extraction and a separate, clean unit for filling differentials or transfer cases.
A: High-viscosity fluids like 80W-90 gear oil require positive displacement mechanisms to prevent cavitation. Screw mechanisms, lobe designs, and high-leverage piston pumps are ideal. These designs physically trap and force the thick fluid through the discharge tube, maintaining a consistent flow rate even when cold temperatures cause the fluid's viscosity to spike.
A: Compact, specialized piston pumps designed specifically for quart bottles are the best choice. These units feature custom-threaded adapters that screw directly onto standard OTC quart bottles and utilize flexible discharge hoses. This design allows technicians to easily pump gear oil into tight, hard-to-reach differential fill holes without spilling.
A: You must consult the manufacturer's chemical compatibility chart and the fluid's Material Safety Data Sheet (MSDS). Corrosive chemicals typically require fully non-metallic fluid paths. Look for construction utilizing high-density polypropylene or PTFE bodies paired with PTFE seals. Never use aluminum or standard steel for highly acidic solutions.
A: Suction loss usually stems from degraded internal seals, worn O-rings, or a cracked suction tube drawing in air. Additionally, pumping high-viscosity fluids in cold environments can cause cavitation, where the fluid is too thick to fill the vacuum created by the pump mechanism. Routine seal inspections mitigate these issues.
A: Rotary pumps are not inherently better; they serve a different purpose. Rotary mechanisms excel at high-volume, continuous transfer of medium-viscosity fluids like diesel, providing a steady flow with less operator fatigue. Lever-action piston pumps are superior for precise volume dispensing and generating the suction needed for heavier oils.
