Moving a 55-gallon drum is no small feat. When filled with heavy industrial fluids, high-density powders, or hazardous chemicals, these cylindrical containers easily tip the scales at over 1,000 pounds. Attempting to manually muscle such a heavy vessel onto a pallet jack is a massive liability. It not only invites chronic ergonomic injuries but also significantly increases the probability of a catastrophic chemical spill.
Without the right tools, gravity becomes your worst enemy on the plant floor. Many facilities still rely on makeshift rigging or inadequate lifting methods, inadvertently exposing themselves to severe OSHA violations and costly downtime. What is the most effective way to eliminate these risks? Integrating purpose-built drum handling equipment into your daily workflow. By securing the load mechanically, you instantly remove the worker from the immediate danger zone.
In this comprehensive engineering guide, we will break down the technical nuances of selecting the perfect vertical lifter. We will look at specific barrel types, overhead hoist compatibility, and how to match hardware to your operational environment.
Safety First: Utilizing a purpose-built vertical clamping mechanism drastically reduces workplace injuries, repetitive strains, and hazardous spills.
Material Matters: Lifting mechanisms are not universally interchangeable. You must match the hardware to the specific container material (rigid metal vs. softer plastics).
Attachment Compatibility: The choice between a below-hook crane system and a forklift attachment depends on your existing warehouse infrastructure and aisle space.
Load Limits: Always verify the Working Load Limit (WLL). Industrial standards typically require equipment rated for 500kg (1,100 lbs) to 1,000kg (2,200 lbs) to safely handle fully loaded vessels.
Regulatory Compliance: High-quality industrial lifting gear must meet strict ASME B30.20 and OSHA safety standards to ensure long-term operational safety.
Before diving into equipment specs, it is crucial to understand where the material handling sector is heading. Recent industry analyses reveal a distinct pivot toward semi-automated lifting solutions. Driven by stricter ergonomic guidelines and a shrinking manual labor workforce, modern processing plants are aggressively phasing out traditional physical lifting.
The data indicates a growing demand for specialized ergonomic attachments. Facility managers are no longer just looking to move products; they are looking to prioritize worker longevity and reduce enterprise liability. Upgrading to specialized lifting hardware is no longer a luxury—it is a baseline operational requirement for any facility handling bulk liquids or powders.

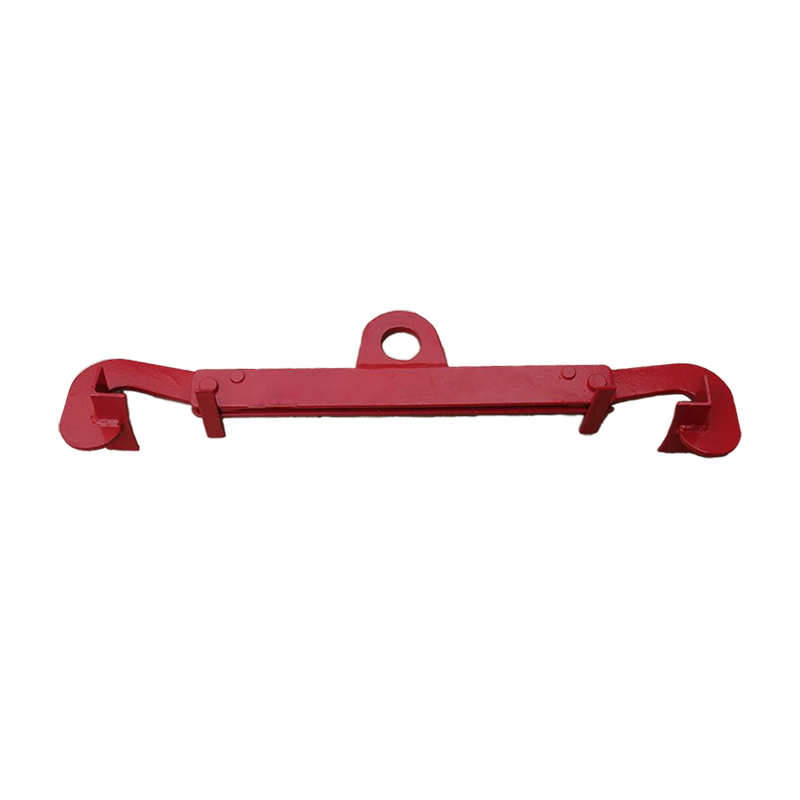

When you are dealing with fluid transfer, standard rigging slings simply will not cut it. A vertical drum lifter is highly specialized material handling hardware engineered to securely grip, elevate, and transport cylindrical barrels upright. Unlike makeshift chains that can easily slip, this equipment interfaces directly with the structural geometry of the barrel.
The primary point of contact is usually the chime—the reinforced upper rim of the container. By gripping this specific structural ring, the lifter allows overhead cranes or hoist attachments to elevate the load straight up and down. Specifically, this vertical orientation is critical when placing containers onto weighing scales, lowering them into secondary containment pallets, or navigating tightly packed storage racks.
The mechanical reliability of these devices relies on proportional friction and scissor-action geometry. When the operator positions the hardware on the rim, spring-loaded jaws or locking pins hold it temporarily in place. However, the true securing force is generated dynamically by the payload itself.
As the overhead hoist begins to pull upward, the mechanical linkage translates the downward gravitational pull of the heavy container into inward gripping pressure. Simply put: the heavier the load, the tighter the alloy steel jaws bite into the chime. This self-tightening mechanism ensures the payload remains completely secure during transit, mitigating the risk of slippage even if minor vibrations occur.
The single most critical technical specification of any lifting device is its Working Load Limit (WLL). You must conduct a thorough audit of your liquid and powder inventory to determine the maximum potential weight. While an empty metal barrel weighs roughly 40 pounds, filling it with high-density resins or metallic powders can push the gross weight close to 2,000 pounds.
Procurement guidelines dictate that the selected hardware must possess a WLL that comfortably exceeds your heaviest anticipated load. For instance, standard heavy-duty models are often engineered with a 500kg (1,100 lbs) or 1000kg (2,200 lbs) capacity. Utilizing a lifter rated for 1,000 pounds on a 1,200-pound payload is a severe safety violation. Always factor in a generous safety margin.
A frequent operational error is assuming one gripping mechanism fits all container types. The material composition of the barrel directly dictates the jaw configuration required. To simplify the selection process, refer to the engineering comparison table below:
| Container Material | Structural Characteristic | Recommended Lifter Type | Critical Watchout |
|---|---|---|---|
| Steel (Metal) | Rigid, pronounced chime; high point-pressure resistance. | Dedicated steel drum clamp with hardened alloy teeth. | Ensure teeth are sharp and free of excessive wear to prevent slipping. |
| Plastic (Poly) | Softer material, thicker/rounded rims; prone to flexing. | Broad-jawed clamps or bottom-support lifters. | Standard narrow jaws will crush the plastic rim. Broad pressure distribution is mandatory. |
| Fiber / Cardboard | Highly compressible; weak structural rim integrity. | Band-style lifters or base-support harness systems. | Never use top-rim friction clamps on fiber; the load will drop instantly. |
The structural rigidity of a barrel is heavily influenced by its lid configuration. Closed-head containers (tight heads) feature a permanently sealed top with small bung holes, providing excellent structural integrity. These are ideal for standard rim-gripping hardware.
In contrast, open-top containers feature a removable lid secured by a bolted locking ring. If an open-top vessel is lifted using a standard jaw that applies uneven inward pressure, the barrel can warp into an oval shape. This deformation frequently causes the locking ring to fail and the lid to violently pop off mid-air. When processing open-top barrels, operators must select lifters equipped with broad-grip jaws or lifting mechanisms that support the container from the belly.
Below-hook systems are engineered to be suspended directly from overhead lifting infrastructure, such as jib cranes, gantry systems, or motorized chain hoists. This configuration proves highly advantageous in dense manufacturing environments where floor space is at a premium. Because the hoist operates from above, the operator can maneuver heavy loads into tight containment skids with pinpoint accuracy.
Furthermore, below-hook systems isolate the operator from the immediate drop zone. Utilizing a pendant station or remote control significantly reduces the risk of crush injuries. Many of these units utilize high-strength G80 lifting chains to ensure maximum durability under heavy cyclical loading.
When finalizing procurement, buyers must weigh the benefits of dedicated versus universal equipment. A dedicated single-purpose lifter is specifically machined to interface with rigid metal chimes. Because of this specialized nature, it is often more compact, highly durable, and features a simpler mechanical design with fewer moving parts. For facilities exclusively processing metal barrels, this is the most cost-effective solution.
On the other hand, if a facility handles a mixed inventory, a universal barrel lifter becomes necessary. Universal models feature adjustable tension settings and broad gripping pads capable of handling steel, poly, and fiber containers of varying diameters. While the initial capital investment is higher, it provides crucial operational flexibility.
Gravity-dependent gripping is effective, but it introduces a severe risk if the lifting line experiences sudden slack. If an operator lowers the load too quickly and it bounces on the concrete floor, a basic friction clamp might lose its tension and detach. To mitigate this hazard, industry safety experts strongly recommend selecting hardware equipped with positive locking mechanisms and spring-loaded jaws.
A spring-loaded jaw ensures the gripping pads maintain continuous pressure against the chime, even without gravitational tension. Additionally, a positive lock utilizes a physical pin or ratcheting lever that must be manually disengaged by the operator. This guarantees that even if the hoist chain goes completely slack, the drum lifting clamp remains mechanically locked onto the rim.
In industrial material handling, regulatory compliance is the absolute baseline. When evaluating lifting hardware, verify that the device complies strictly with ASME B30.20 and BTH-1 standards, which govern Below-the-Hook Lifting Devices. Compliant equipment will feature permanent, legible identification tags detailing the manufacturer’s name, serial number, unit weight, and the Working Load Limit.
The reliability of any lifting equipment is directly tied to the frequency of visual inspections. Operators must be trained to perform a mandatory, rapid pre-use inspection before the first lift of every shift. This daily checklist should include:
Jaw Integrity: Inspect the gripping surfaces and hardened alloy teeth for excessive wear, flattening, or micro-fractures.
Linkages and Pins: Check all moving hinges, cotter pins, and bolts to ensure they are straight and securely fastened.
Spring Tension: Verify that spring-loaded mechanisms snap back into place firmly without sluggishness.
Load Tags: Ensure the manufacturer's identification tag is fully legible. If the tag is missing, tag out the device immediately.
To maximize the lifecycle of your hardware, implement a scheduled preventative maintenance program. Moving parts, such as scissor hinges and locking latches, must be regularly cleaned of industrial debris and lubricated with appropriate industrial-grade grease. Additionally, store the equipment in a dry, climate-controlled tool crib when not in use. Leaving clamps exposed to outdoor elements accelerates rust formation, silently degrading the tensile strength of the steel.
Choosing the correct vertical lifter ultimately comes down to understanding your container material, accurately calculating maximum load weights, and matching the hardware to your existing lifting infrastructure. The right tool transforms a highly dangerous, labor-intensive chore into a streamlined, single-operator task.
Always verify load limits and ensure your chosen equipment meets rigorous ASME and OSHA standards. By investing in proper engineering controls today, you protect your workforce while maximizing long-term operational efficiency. If you are ready to upgrade your facility's safety protocols and throughput, explore the precision-engineered industrial drum lifter solutions from Jinlin Industrial to find the exact match for your operational parameters.
Lifting a 55-gallon drum safely requires removing manual labor from the equation. You should utilize a specialized mechanical lifter attached to an overhead hoist or forklift. Ensure the lifter's Working Load Limit (WLL) exceeds the gross weight of the drum, verify that the clamp is compatible with the drum's material (steel vs. plastic), and always engage the positive locking mechanism before initiating the lift.
Yes, many lifters are designed specifically as forklift attachments. These slide directly onto the forks and are secured via heavy-duty safety chains or locking pins. However, operators must account for the altered center of gravity. Extending a heavy load beyond the standard carriage reduces the forklift's overall lifting capacity, so always consult the vehicle's load capacity chart before lifting.
Not all clamps are suitable for plastic containers. Standard metal clamps rely on the rigid, narrow chime of a steel barrel. Plastic (poly) containers typically have softer, thicker rims. Using a standard clamp on a poly container can result in the jaws slipping or crushing the plastic. You must select a lifter explicitly engineered for plastic, featuring a wider gripping surface or bottom-support mechanisms.
The distinction lies in the orientation of the payload during transit. Vertical clamps grip the top rim, lifting the container straight up so it remains standing upright—ideal for placing loads onto pallets or scales. Horizontal clamps attach to the ends or sides of the container, lifting it parallel to the floor, which is primarily utilized for placing vessels into horizontal dispensing racks.
Inspections must be conducted at multiple distinct intervals. An operator should perform a visual and operational inspection daily, checking for structural defects or missing hardware. Additionally, a thorough, documented inspection must be carried out by a qualified professional at least once a year. Facilities with harsh environmental conditions should increase professional inspections to monthly or quarterly.
Yes. Open-top barrels lack the inherent structural rigidity of closed-head containers. Lifting an open-top barrel with a standard rim clamp can exert excessive inward pressure, potentially warping the cylinder. This distortion can cause the locking ring to fail and the lid to pop off mid-lift. Verify with the manufacturer that your specific clamp model is explicitly rated for open-top lifting.
Yes, high-quality lifters are specifically designed to facilitate safe, single-person operation. The mechanics allow the operator to guide the hardware onto the rim, secure the positive locking mechanism, and step completely back to operate the hoist pendant. This semi-automated engagement eliminates the need for a second worker to manually stabilize the suspended load, keeping all personnel out of the drop zone.
