Industrial spills drain millions of dollars annually through EPA fines, environmental remediation, and lost operational downtime. When a catastrophic rupture occurs, the difference between a quick cleanup and a facility-wide disaster usually comes down to a single piece of equipment: your secondary containment system. Storing bulk liquids in Intermediate Bulk Containers (IBCs) demands exact sizing and robust engineering. Unfortunately, many facility managers struggle with these capacity calculations, exposing their operations to massive liability.
An engineered secondary containment platform specifically solves this problem. It acts as a crucial safeguard for hazardous materials on the factory floor. In this comprehensive guide, we strip away the guesswork. You will learn the exact sizing rules required to keep your facility compliant, straight from an engineering perspective. We will break down federal capacity formulas, critical material choices, and practical procurement strategies to ensure you select the perfect containment solution for your specific chemical inventory.
Compliance is Non-Negotiable: Secondary containment must meet strict EPA and SPCC regulations. Systems typically require a sump capacity of 100% of the largest container or 10% of the total volume stored, whichever figure is greater.
Accurate Volume Assessment: Sizing your equipment correctly depends entirely on the specific volume of your bulk tote, not just its current fill level.
Weight and Specific Gravity Matter: Facility managers must account for both static (stationary) and dynamic (moving) load capacities. Dense industrial chemicals require heavy-duty structural reinforcement.
Material Selection is Critical: High-density polyethylene (HDPE) is required for harsh acids and corrosives. In contrast, specific metal platforms are structurally necessary for highly flammable liquids to meet NFPA fire codes.
Outdoor Storage Requires Freeboard: Outdoor containment demands protective covers or additional sump capacity to account for rainwater accumulation during storm events.
An IBC spill containment platform is a specialized, heavy-duty unit engineered specifically to support Intermediate Bulk Containers. Unlike standard wooden shipping pallets or low-profile drum catchments, these systems feature a hollow, built-in sump area beneath a highly durable grated surface. This integrated reservoir safely captures and isolates leaks, steady drips from faulty valves, or rapid catastrophic ruptures from the bulk containers resting above it.
In the broader context of industrial spill control, these specialized pallets serve as your critical last line of defense. Imagine a busy warehouse scenario: a forklift operator misjudges a turn and accidentally punctures the lower wall of a fully loaded tote. Without a properly sized sump beneath it, hundreds of gallons of chemical will rapidly spread across the floor, seeking the nearest drain. A properly engineered pallet captures this escaping fluid immediately. By isolating the spilled material, these platforms prevent groundwater contamination, allow for safer cleanup, and enable the potential recovery of expensive chemical assets.
The 1000-liter (approximately 275-gallon) tote is the most widely utilized vessel for bulk liquid transport across global supply chains. Because of its massive prevalence, the 1000L IBC pallet has become the definitive industry standard for secondary containment. These specific units are dimensionally engineered to match the exact footprint of a standard tote. Furthermore, they are structurally reinforced to support the immense weight of dense industrial fluids. High-quality units are designed to withstand continuous static pressure over years of long-term storage without bowing, warping, or collapsing.
From an industry trend perspective, environmental regulatory bodies are increasingly shifting toward predictive enforcement rather than reactive penalties. Recent years have seen a sharp rise in unannounced compliance audits focusing heavily on secondary containment integrity. Driven by climate change concerns and extreme weather unpredictability, many modern facilities are abandoning bare-minimum compliance.
Instead, safety engineers are adopting a "compliance-plus" strategy. Facility managers are now intentionally over-sizing their hazardous liquid storage systems by 15% to 20% beyond the EPA baseline. This proactive approach future-proofs operations against tightening legislative frameworks and provides an extra buffer during unforeseen catastrophic failures.
Sizing a containment system is never a matter of estimation; it is a strict regulatory requirement enforced by environmental protection agencies globally. In the United States, bulk chemical management is governed primarily by the Environmental Protection Agency (EPA) under regulations such as 40 CFR 264.175 and the Spill Prevention, Control, and Countermeasure (SPCC) guidelines. Failure to comply with these sizing standards routinely results in severe financial penalties and immediate facility shutdowns.
The foundational metric for sizing secondary containment is universally referred to as the "10% or 100% Rule." To maintain absolute compliance, the sump capacity of your containment pallet must meet one of two criteria, depending on which calculation yields the larger volume. First, it must hold 100% of the volume of the largest single container stored on the pallet. Alternatively, it must hold 10% of the total combined volume of all containers stored on that same pallet. You must calculate both numbers and always select the larger volume to determine your minimum required sump capacity.
While federal EPA standards provide a baseline, facility managers must also consult local fire codes. Organizations like the NFPA dictate strict material requirements alongside volumetric rules for flammable liquids. Internationally, standards like the CE mark in Europe or specific UK health and safety regulations may impose even stricter containment ratios, often requiring specialized structural testing certifications before a product can be deployed on the factory floor.
Selecting the correct equipment requires a highly methodical approach. Guesswork leads to structural failure. The following steps outline the objective process for determining the exact specifications required for your facility's unique inventory.
The absolute first step is identifying the exact maximum volume of the liquids being stored. Totes typically come in standard sizes: 275 gallons (1040 liters) and 330 gallons (1250 liters). You must audit your inventory to confirm the maximum design capacity of the containers that will be placed on the unit. Crucially, do not base calculations on the current liquid level inside the tote. Regulations explicitly require calculations to be based on the total potential capacity of the container.
Once the volume is firmly established, apply the EPA's 10% or 100% rule. Consider a practical scenario where a facility plans to store two 1000-liter totes on a dual-capacity spill pallet. The total volume stored is 2000 liters. Calculating 10% of the total volume gives us 200 liters. However, calculating 100% of the largest single container gives us 1000 liters. Comparing the two, the larger number dictates the rule. Consequently, the pallet's built-in sump must have a certified capacity of at least 1000 liters to remain legally compliant.
Volume is only half of the sizing equation; weight capacity is equally critical. You must rigorously evaluate the pallet's structural limits against the specific gravity of your stored chemicals. Static load refers to the maximum weight the pallet can safely support when resting flat on the ground. Dynamic load refers to the weight it can support when being lifted by a forklift.
For context, water weighs approximately 8.34 pounds per gallon. A 275-gallon tote of water weighs roughly 2,300 pounds. By contrast, industrial chemicals are often significantly denser. A 275-gallon tote of 50% Sodium Hydroxide weighs nearly 3,500 pounds. Premium industrial units, such as those manufactured by Jinlin-ind, are engineered with robust parameters—often featuring a static load capacity of up to 4000 kg (8,800 lbs) and a dynamic load capacity of 1000 kg (2,200 lbs). Your containment system must be rated for the true chemical weight, not just the volume of water.
If your containment system is deployed outdoors without a roof or hard-top cover, standard sizing rules immediately change. The EPA requires additional capacity—known as freeboard—to account for precipitation. If rainwater fills the sump, it displaces the empty volume meant for chemical containment. Standard practice requires the sump to handle the baseline chemical volume plus the volume of rain generated by a 25-year, 24-hour storm event in your specific geographic region. To avoid this incredibly complex calculation, most facilities wisely opt for covered containment units when storing totes outdoors.
Sizing a pallet correctly is completely useless if the stored chemical melts or corrodes the containment material. Material selection must be based on a rigorous review of chemical Safety Data Sheets (SDS) and manufacturer compatibility charts.
| Feature | HDPE (Polyethylene) Pallets | Steel Spill Containment Pallets |
|---|---|---|
| Best Suited For | Corrosives, strong acids, caustic alkalis, fertilizers. | Flammable liquids, aviation fuels, aggressive solvents. |
| Chemical Resistance | Excellent rust-proof and anti-corrosion properties. | Vulnerable to acids; excellent for hydrocarbons. |
| Fire Safety & Grounding | Can melt in a fire; cannot be easily grounded. | Maintains structural integrity in heat; allows static grounding. |
| Durability | High impact resistance; lightweight. | Extreme structural strength; heavy-duty galvanized finish. |
High-Density Polyethylene (HDPE) is the undisputed champion material for modern spill control. It is entirely rust-proof, highly durable, and offers exceptional resistance to a broad spectrum of aggressive chemicals. HDPE is the mandatory choice when storing strong acids, caustic alkalis, corrosive water treatment chemicals, and most agricultural fertilizers. Because HDPE does not react with these corrosives, it ensures the structural integrity of the sump remains intact for years under harsh factory conditions.

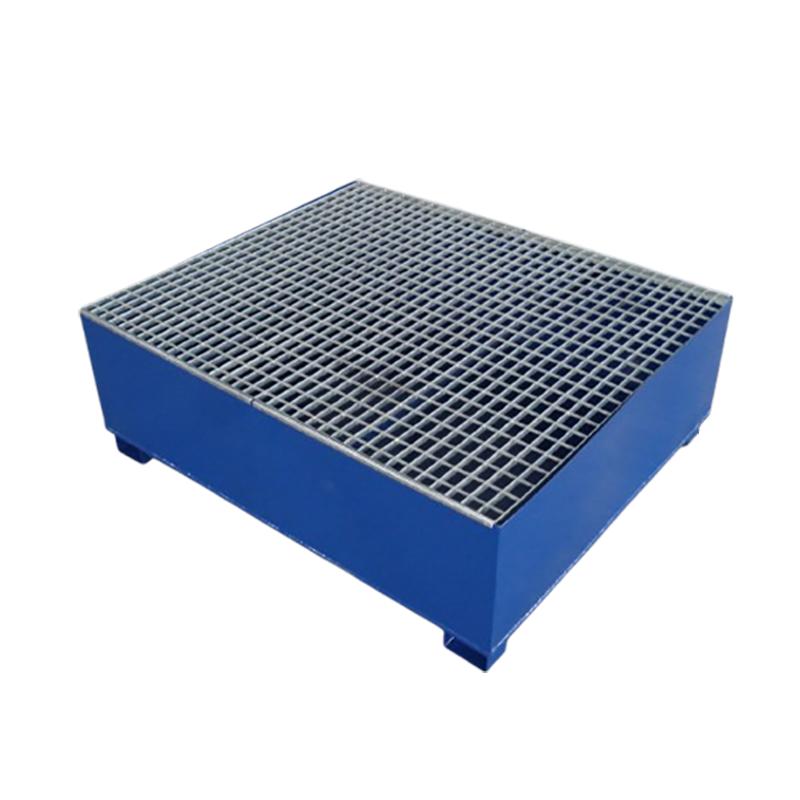

While plastic is incredibly versatile, it is not suitable for everything. Heavy-gauge galvanized or stainless steel spill containment systems are absolutely necessary when storing highly flammable liquids, aviation fuels, and certain aggressive industrial solvents. The primary reason for using metal is fire safety and static dissipation. Flammable liquids generate static electricity during dispensing. Steel pallets allow facilities to attach grounding wires, safely dissipating static charges and preventing catastrophic sparks. Furthermore, in the event of a facility fire, plastic pallets will melt, releasing stored fuel and exacerbating the inferno. Steel maintains its structural integrity under extreme heat, conforming strictly to NFPA fire codes.
Beyond capacity and material, the operational design of the pallet dictates how efficiently your team can work with it daily. When evaluating options, prioritize specific engineering features that directly enhance worker safety and operational usability.
In the event of a spill, the toxic liquid must be pumped out and the sump thoroughly decontaminated. Pallets equipped with easily removable, lightweight grates allow maintenance teams immediate access to the sump basin. Without removable grates, deploying absorbent materials or submersible pumps becomes a labor-intensive, potentially hazardous task. Removable grates also facilitate the rapid visual inspections required by weekly environmental health and safety protocols.
Moving a fully loaded IBC tote requires heavy machinery. High-quality containment platforms feature built-in, structurally reinforced forklift pockets. Two-way access allows forklifts to enter from the front or back, while four-way access allows entry from any side, providing maximum maneuverability in tight warehouse aisles. Ensuring these pockets are deeply recessed prevents the heavy pallet from slipping off the forks during transport, mitigating a major drop hazard.
Many premium units include built-in drain plugs at the base of the sump. If a non-hazardous liquid, such as accumulated rainwater, fills the basin, it can be easily drained without requiring a specialized pump. Additionally, models that accommodate attachable dispensing buckets or drip trays are highly recommended. These accessories catch the minor, inevitable leaks that occur when actively pouring liquids from the tote's lower valve, keeping the surrounding floor pristine.
Procurement errors in spill control can lead to catastrophic structural failures and failed regulatory audits. Avoid these three common industry mistakes to protect your facility.
Mistake 1: Ignoring Specific Gravity. As highlighted earlier, failing to calculate the exact weight of heavy chemicals causes pallets to bow, warp, or completely collapse. A sump rated for 3,000 lbs will shatter under a 4,500 lb load of sulfuric acid. Always verify the static load rating against the maximum possible weight of the specific chemical being stored.
Mistake 2: Using Standard Drum Pallets for IBCs. Attempting to place a 275-gallon tote onto a pallet designed for four 55-gallon drums is a severe compliance violation. Drum pallets lack the required 275-gallon sump capacity. More dangerously, the concentrated point-load of an IBC's rigid metal feet will easily puncture or snap the plastic grates of a standard drum pallet.
Mistake 3: Neglecting Chemical Compatibility. Purchasing a steel pallet for hydrochloric acid will result in rapid corrosion and ultimate failure within months. Conversely, buying a plastic pallet for aviation fuel violates basic fire safety protocols. Always cross-reference the chemical's SDS with the manufacturer's chemical compatibility guide before finalizing any purchase order.
Selecting a vendor for critical safety equipment requires thorough due diligence. Facility managers should look exclusively for manufacturers that provide transparent load-testing data, clear chemical compatibility charts, and verifiable compliance certifications. Avoid suppliers who make vague claims about capacity without referencing specific EPA or SPCC standards.
Proper containment sizing is the absolute foundation of workplace safety and environmental stewardship. By meticulously calculating your required sump capacity, verifying specific gravity weight limits, and selecting the chemically appropriate material, you safeguard your facility against catastrophic accidents. The right equipment prevents costly regulatory fines and protects the local ecosystem from irreversible damage.
Take the time to audit your facility's current storage systems today. If you need to upgrade your containment infrastructure to ensure you remain fully compliant and operationally secure, we highly recommend sourcing from established industry leaders. Explore the comprehensive range of fully compliant, load-tested IBC spill pallet solutions at Jinlin-ind to find the exact heavy-duty containment unit that aligns perfectly with your calculated volume and material requirements.
Under federal EPA guidelines, your spill containment platform must feature a sump capacity of at least 100% of the largest single container. Therefore, to compliantly store a 275-gallon tote, you must utilize a unit with a certified minimum sump capacity of 275 gallons.
Yes, dual-capacity containment pallets are manufactured specifically for this purpose. If you place two 275-gallon totes on a single platform, the sump must hold 100% of the largest container (275 gallons) or 10% of the total volume (55 gallons), whichever is greater. Thus, a 275-gallon sump remains fully compliant for two totes, provided local fire codes do not dictate stricter terms.
An IBC containment unit is engineered with a significantly larger physical footprint, a much higher weight capacity (often exceeding 8,000 lbs), and a massive sump designed to hold 275 to 330 gallons. Standard drum pallets are much smaller, lack the structural reinforcement for bulk totes, and typically feature sumps that only hold 55 to 66 gallons.
Material selection depends entirely on the chemical properties of the stored liquid. High-Density Polyethylene (plastic) is required for corrosive chemicals, strong bases, and acids. Conversely, steel containment is mandated for highly flammable liquids and fuels to facilitate proper grounding and meet strict NFPA fire safety codes.
Yes, outdoor storage requires additional precautions due to precipitation. Outdoor containment must either be fully covered by a hard-top enclosure to prevent rainwater from entering the sump, or the open sump must possess additional "freeboard" capacity to securely hold both the chemical and the rainwater from a major storm event without overflowing.
Specific gravity is listed on your chemical's Safety Data Sheet (SDS). It compares the density of your chemical to water (which has a specific gravity of 1.0). To find the total weight, multiply the specific gravity by 8.34 (the weight of one gallon of water), and then multiply that number by the total gallons in your IBC tote. Always ensure this final weight is well below the pallet's maximum static load rating.
It depends on the dynamic load rating of the specific pallet. While premium engineered pallets feature robust forklift pockets and high dynamic load capacities (e.g., 1000 kg), many standard spill pallets are only rated for static (stationary) loads. Always check the manufacturer's dynamic weight limits before attempting to lift a pallet that contains a fully loaded IBC tote.
