Changing the oil on a heavy-duty truck, commercial pickup, or agricultural vehicle is an inherently messy job. It bears little resemblance to servicing a standard compact sedan. When dealing with diesel engines or large-capacity gas blocks, mechanics are forced to manage massive fluid volumes, heavy industrial filters, and unique ground clearance challenges. Attempting these tasks with the wrong tools inevitably leads to hazardous fluid spills on the shop floor. Consequently, this causes unnecessary physical strain on the technician and wastes valuable operational time.
To manage large-scale fluid maintenance efficiently, professionals and fleet operators generally rely on two primary solutions. You either slide a flat reservoir under the chassis or position a tall, gravity-fed funnel beneath a hoisted vehicle. This comprehensive guide breaks down exactly how these two systems compare, the mechanical advantages of each, and which setup represents the smartest long-term investment for your specific garage infrastructure.
A flat, wheeled reservoir provides the optimal solution for commercial trucks, agricultural tractors, and heavy-duty vehicles parked directly on the ground, completely eliminating the need for hydraulic vehicle lifts.
Upright collection tanks are engineered specifically for professional maintenance environments equipped with two-post or four-post automotive lifts.
When evaluating fluid collection equipment, the most critical specifications are overall fluid capacity (minimum 15 gallons for commercial use) and the reliability of the evacuation system.
Your final equipment investment depends entirely on your operational workspace. Facilities without hoists require low-slung designs, while elevated service bays benefit immensely from upright gravity-fed systems.

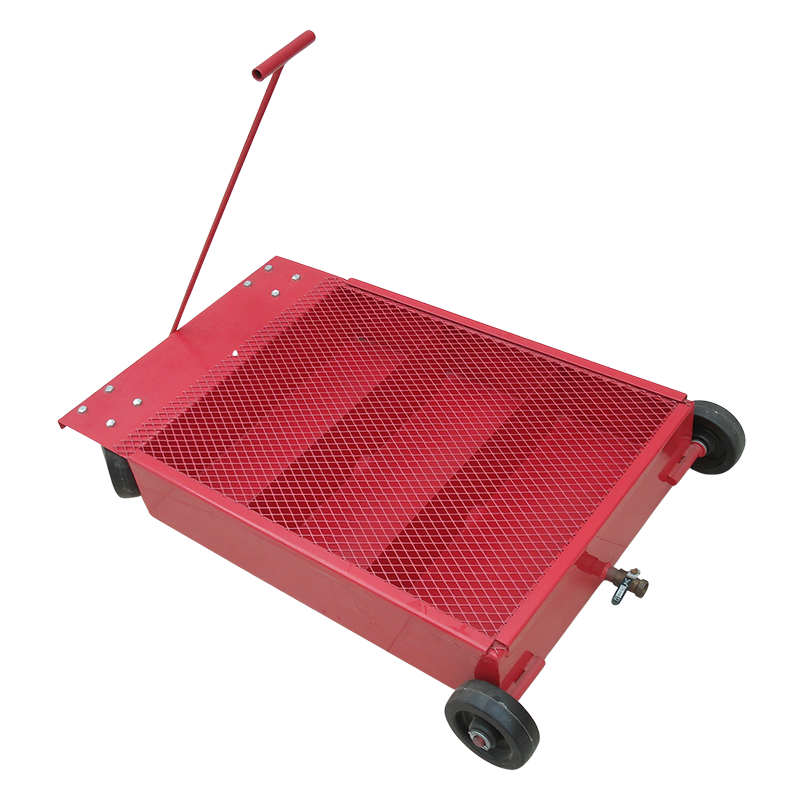

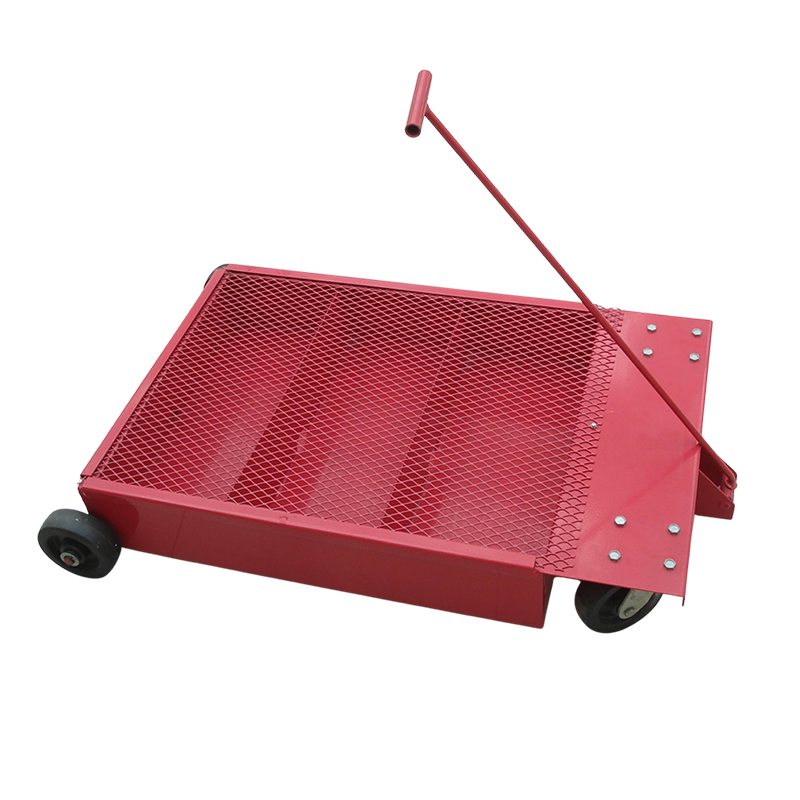

A low-profile drain cart is a specialized fluid management tool. It is designed specifically to capture waste oil from vehicles with moderate to high ground clearance without utilizing a lift. Structurally, it features a wide, flat reservoir—typically measuring between 8 to 10 inches in overall height—mounted on heavy-duty caster wheels. This low-slung geometry allows mechanics to slide the unit directly under the axles and oil pans of heavy-duty pickups, commercial box trucks, and large agricultural machinery.
The core anatomy of this equipment includes a massive top-facing catch area, usually protected by a splash-proof metal or plastic mesh grate. This grate serves a dual purpose. First, it diffuses the high-pressure stream of hot oil exiting the drain plug to prevent dangerous splashing. Second, it catches dropped drain plugs or heavy oil filters before they submerge into the murky waste fluid. To maneuver this heavy load across concrete shop floors, these units utilize a long, ergonomic T-handle.
Evacuation methods dictate how the collected fluid is ultimately transferred to a bulk recycling tank. Standard models utilize manual rotary hand pumps connected to a flexible discharge hose. However, premium variations incorporate pneumatic systems or electric pumps. This allows operators to empty a 17-gallon reservoir in minutes with minimal physical exertion. Ultimately, this equipment is the gold standard for mobile mechanics, agricultural field workers, and independent operators lacking hydraulic lift infrastructure.
An upright waste oil drainer is a vertically oriented fluid collection system engineered specifically for professional garages and dealership service centers. Unlike its flat counterparts, this equipment consists of a tall, cylindrical storage tank—often holding between 15 and 20 gallons—supported by a stable, four-wheel caster base. Protruding from the top of the tank is an adjustable, telescopic steel tube capped with a wide collection funnel.
The fundamental operating principle relies purely on gravity feeding. When a truck is elevated 5 to 6 feet in the air on a hydraulic lift, the mechanic positions the upright unit directly beneath the vehicle's oil pan. The telescopic funnel is raised to sit mere inches below the drain plug. This setup ensures that the exiting oil drops cleanly into the funnel and flows down the tube into the pressurized holding tank below.
Emptying an upright tank is typically a closed-loop, highly efficient process. Most professional-grade units are pneumatically operated. Mechanics connect a standard shop air compressor line to a designated valve on the tank. The introduced air pressure forces the waste oil up through a discharge hose and directly into the facility's bulk waste oil storage receptacle. This hands-free evacuation process minimizes operator contact with hazardous fluids, making it the preferred choice for high-volume commercial lube shops.
Recent market analysis highlights a significant shift in how commercial fleets handle routine fluid maintenance. With rising operational costs and the critical need to minimize vehicle downtime, many agricultural and logistics fleets are moving toward decentralized, on-site servicing. This industry-wide trend has triggered a massive surge in demand for mobile, ground-level fluid management systems that don't rely on specialized shop infrastructure.
In contrast, high-volume dealerships and urban service centers face a different set of challenges. Stricter environmental regulations regarding waste oil containment, coupled with the need for rapid service bay turnover, have driven these facilities to heavily invest in closed-loop, integrated pneumatic systems. Choosing between a flat reservoir and a vertical funnel is no longer just a matter of mechanic preference; it is a strategic business decision dictated by evolving workspace infrastructures and environmental compliance standards.
Selecting the correct equipment requires analyzing your specific operational constraints based on these industry realities. Let's break down how these two setups perform in real-world workshop scenarios.
Specifically, the most decisive factor in this comparison is ground clearance. A flat, wheeled cart is engineered exclusively for ground-level maintenance. Heavy-duty trucks, such as Cummins-powered Rams or Duramax Chevrolets, naturally possess enough factory ground clearance to accommodate an 8-inch to 10-inch tall reservoir. Mechanics can easily slide the unit beneath the vehicle, align it with the drain plug, and initiate the service without ever touching a floor jack.
An upright drainer, however, is rendered entirely useless if the vehicle remains on the ground. The lowest height setting for a standard upright funnel is typically around 40 to 45 inches. Therefore, the truck must be elevated on a professional hydraulic lift. For shops equipped with these lifts, the upright design offers unparalleled precision, allowing the operator to adjust the funnel height exactly to the drain plug's location.
Heavy-duty diesel engines require massive oil capacities. While a standard passenger sedan may hold 5 quarts of oil, a heavy-duty truck engine frequently holds between 3 to 4 gallons (12 to 16 quarts). Consequently, standard automotive drain pans will overflow instantly.
Both equipment types are designed to handle these volumes, typically offering capacities ranging from 15 to over 20 gallons. However, a low profile drain pan provides a distinct advantage regarding fluid trajectory. Diesel engines under pressure eject oil in a wide, forceful arc. The broad, expansive catch area of a flat cart easily captures this unpredictable spray. Upright units feature smaller funnels, requiring the mechanic to carefully monitor and adjust the funnel position as the oil pressure drops and the fluid trajectory changes.
Shop floor real estate is a valuable commodity. A flat cart boasts a horizontal footprint. While it takes up more floor space when in use, its low-slung design allows it to be conveniently stored underneath workbenches, toolboxes, or heavy machinery when not active.
Upright tanks consume vertical space. They possess a much smaller base footprint, making them exceptionally easy to weave between tool chests and parked vehicles on a crowded professional shop floor. Because they cannot be tucked away under benches, they require a dedicated, permanent parking spot within the service bay.
Managing the collected waste oil safely is a critical environmental and operational concern. Upright tanks excel in this category due to their seamless integration with shop air systems. Connecting an air line pressurizes the tank, swiftly pushing the oil into bulk storage without the mechanic ever touching a pump handle.
Emptying a ground-level cart traditionally requires more physical input. Standard models are equipped with manual rotary hand pumps. While effective, cranking 15 gallons of cold, viscous diesel oil through a hand pump can be physically taxing. To bridge this gap, premium flat models now integrate pneumatic evacuation systems, matching the efficiency of their upright counterparts and significantly reducing turnaround time.
Investing in a ground-hugging system is the most logical decision under specific operational scenarios where lifting the vehicle is either impossible or highly impractical.
If you perform independent maintenance on a heavy-duty pickup on a flat concrete driveway or standard home garage floor, this tool is mandatory. Residential garages rarely possess the ceiling height or concrete depth required to safely install a commercial 2-post lift. The flat design allows you to manage commercial-level fluid volumes safely on the ground without risking your safety with inadequate floor jacks.
Agricultural machinery, such as combine harvesters and heavy tractors, cannot be easily transported to a service bay. Mechanics servicing these machines must perform fluid changes directly in the field, in barns, or on dirt lots. The rugged casters and ground-hugging design of a truck oil drain cart make it the only viable option for remote, heavy-duty fleet maintenance.
Moving 15 gallons of liquid across a shop floor often results in hazardous sloshing and spills. High-quality flat carts are engineered with internal baffles—structural dividers inside the tank that prevent the fluid from building momentum during transport. If your workflow requires wheeling waste oil over long distances or uneven concrete joints, a baffled cart ensures the oil remains fully contained.
Vertical systems represent the industry standard for specific environments where infrastructure actively supports elevated vehicle maintenance.
Commercial service centers process dozens of vehicles per day. These facilities are built entirely around 2-post or 4-post hydraulic lifts. In this high-volume environment, an upright collection tank is essential. It integrates seamlessly into the established workflow, allowing technicians to drain oil swiftly while simultaneously inspecting tires, brakes, and suspension components at eye level.
Furthermore, crawling underneath a 6,000-pound truck on a creeper is physically demanding. Over time, the repeated bending, kneeling, and reaching required for ground-level oil changes can lead to severe mechanic fatigue and musculoskeletal injuries. Upright tanks eliminate this strain. The technician remains in a natural, standing position throughout the entire service procedure, significantly improving workplace ergonomics.
If a workshop is already fully plumbed with high-capacity air compressors and centralized waste oil storage tanks, a vertical drainer maximizes that existing infrastructure. The closed-loop pneumatic emptying process prevents oil exposure, reduces the risk of environmental contamination, and allows mechanics to empty the drainer in seconds with the simple turn of an air valve.
Whether you operate on the ground or up in the air, the build quality of your workshop oil change equipment dictates its longevity and safety. Evaluate the following technical specifications before making a purchasing decision.
The primary construction material significantly impacts the tool's durability and weight. Heavy-gauge steel is traditionally favored for its absolute structural rigidity. Steel carts can withstand severe impacts, dropped tools, and harsh shop chemicals. However, steel is incredibly heavy and susceptible to rust if the protective powder coating is scratched.
High-impact, high-density polyethylene (HDPE) has become increasingly popular in modern shops. Polyethylene is exceptionally lightweight, making the cart much easier to maneuver when fully loaded. Furthermore, plastic will never rust or corrode, regardless of exposure to weather, road salt, or corrosive automotive fluids.
Fluid dynamics play a crucial role in waste oil management. A major user pain point is oil sloshing over the edges of the pan during transport across the shop. To counteract this, premium models utilize internal baffles. These internal walls break up the kinetic energy of the moving fluid, keeping the cart highly stable.
Additionally, top metal grates or splash meshes are absolutely non-negotiable for a heavy duty oil drain. When hot oil drops several inches from a drain plug, it impacts the catch area with significant force. A high-quality expanded metal grate diffuses this impact, preventing scalding hot oil from splashing back onto the mechanic's hands or the concrete floor.
A reservoir holding 17 gallons of waste oil weighs well over 130 pounds. Maneuvering this dense weight requires industrial-grade mobility hardware. Avoid equipment fitted with cheap, hollow plastic wheels. Instead, look for heavy-duty, polyurethane-coated swivel casters. Polyurethane rolls smoothly over concrete expansion joints and minor shop debris without getting bogged down.
If selecting a ground-level model, the evacuation pump is the most critical mechanical component. Standard rotary pumps utilize internal metal vanes to draw the oil out. Inspect the pump assembly for cast iron or aluminum construction rather than cheap plastic housings. Verify that the provided discharge hose is constructed from thick, kink-resistant rubber. A flimsy hose will instantly collapse under the vacuum pressure of the pump, completely halting the evacuation process.
Even with the best equipment on the market, heavy-duty oil changes require proper technique. Follow these professional mechanic tips to ensure a clean, efficient workflow.
Before loosening the oil pan drain plug, always pop the hood, remove the engine oil fill cap, and pull the dipstick out slightly. This simple action breaks the vacuum inside the engine block. It allows the oil to flow out in a smooth, predictable stream rather than "glugging" and splashing erratically outside the catch pan.
When using a flat cart, do not position the exact center of the mesh directly under the drain plug. Because heavy-duty trucks hold large volumes of oil under intense pressure, the fluid will initially shoot out horizontally at an angle. As the crankcase empties and pressure drops, the flow will eventually fall straight down. Position the cart slightly forward of the plug to catch that initial high-pressure arc.
Clean the metal mesh grate immediately after use. Diesel engine oil is notoriously thick and full of heavy soot. If left uncleaned, the oil will congeal, attract shop dust, and permanently block the mesh holes. This will cause the grate to flood and overflow during your next scheduled oil change.
Choosing the right fluid management equipment ultimately depends entirely on your workspace infrastructure. If you work primarily on the ground, a low-profile cart is the undisputed champion. It slides effortlessly under heavy trucks, RVs, and tractors, allowing you to manage massive fluid volumes without risking your safety on unstable jacks. For professional shops equipped with hydraulic lifts, upright vertical drainers are the superior choice. They keep your shop floor immaculate, improve technician ergonomics, and save valuable time through rapid pneumatic evacuation. Evaluate your daily garage setup, prioritize your lifting capabilities, and invest in quality tools to eliminate messy spills for good.
For heavy-duty trucks, look for a minimum capacity of 15 to 17 gallons. This allows you to perform multiple oil changes on standard vehicles or handle the massive fluid capacity of large diesel engines (which often hold over 3 to 4 gallons) without having to stop the service to empty the cart immediately.
Yes, the physical design works perfectly for any automotive fluid. However, from a practical standpoint, it is highly recommended to use separate, clearly labeled carts for different fluids. Specifically, you must separate coolant from motor oil. Mixing fluids causes cross-contamination, and many commercial waste oil recycling centers will refuse to accept or process contaminated batches.
Most standard models feature a manual rotary hand pump attached to a flexible discharge hose. You simply insert the hose into a bulk recycling jug and crank the handle to pump the oil out. Premium professional models may feature pneumatic (air-operated) or electric pumps for much faster, hands-free emptying.
Yes. Because the catch funnel sits on top of a tall cylindrical tank—usually measuring 40+ inches high at its absolute lowest setting—there is simply not enough physical clearance to position it under a vehicle parked on the ground. A hydraulic lift is mandatory for this style of equipment.
