Have you ever barked your knuckles trying to force a grease gun onto a hidden machine joint? Poor access angles inevitably lead to skipped lubrication. In the field, that translates to accelerated wear, metal-on-metal friction, and eventually, catastrophic bearing failure. Specifying the right SAE grease fitting prevents this mechanical nightmare by perfectly aligning the access point with your maintenance tools.
In this engineering guide, we will break down the critical differences between straight, 45-degree, and 90-degree profiles. By understanding the unique geometry, thread pitches, and metallurgy behind these small but vital components, you can eliminate dry joints and significantly extend your equipment's operational lifespan.
Strict SAE J534 Standardization: Authentic SAE fittings are manufactured to rigid engineering tolerances. These parameters govern thread taper, case hardness, and burst pressure to ensure reliable, leak-proof performance under heavy hydraulic loads.
Angle Selection Dictates Access: Straight profiles are ideal for wide-open areas. Conversely, 45° versions navigate partial obstructions like casting ribs, while 90° variants are mandatory for tight, perpendicular spaces (like U-joints) where a straight-on approach is impossible.
Interchangeability Realities: Upgrading a straight nipple to an angled one is standard practice for maintenance optimization. However, the thread pitch must be an exact match, and technicians must account for the rotational clearance required during installation.
Torque Control is Critical: Over-tightening is the leading cause of snapped threaded shanks. Mastering proper torque application—specifically the TFFT (Turns From Finger Tight) method—prevents expensive and time-consuming extraction procedures.
To maintain peak mechanical efficiency, moving parts demand a constant, clean supply of lubrication. SAE grease fittings, universally referred to on the shop floor as zerk fittings, are precision check valves permanently threaded into machinery housings, bearing caps, and suspension linkages. They act as the primary secure gateway, allowing technicians to inject heavy grease directly into internal friction zones without tearing down the assembly.
At their core, these components function as simple but highly resilient mechanical barriers. The standard anatomy includes a cold-formed steel body, a calibrated internal compression spring, and a precision steel ball. When you snap a grease gun coupler onto the nipple head, the hydraulic pressure from the injected grease overcomes the internal spring tension. The ball pushes inward, allowing fresh lubricant to flow seamlessly into the bearing cavity.
Once you disconnect the coupler and the external pressure drops, the internal spring instantly forces the ball back against its machined seat. This sealing mechanism performs two critical jobs. First, it traps the grease inside the housing where it belongs. Second, it acts as a robust physical shield, preventing abrasive dirt, water, and industrial contaminants from destroying sensitive internal rollers.
Any seasoned mechanic knows that cheap, unrated hardware causes more problems than it solves. The Society of Automotive Engineers established the SAE J534 standard to enforce strict uniformity and safety across North American industrial applications. When hardware carries this designation, it guarantees the part meets precise metallurgical and dimensional baselines.
Specifically, this standard dictates the exact thread tapers required for a wedge-seal fit—most commonly the 1/4"-28 taper thread and the 1/8" PTF (Pipe Thread Fuel). Furthermore, SAE J534 requires intensive case-hardening. This heat-treatment process creates a highly wear-resistant outer shell, ensuring the spherical head won't deform after years of forceful coupler attachments. The standard also mandates heavy-duty corrosion protection, typically a specialized zinc plating, designed to survive brutal salt-spray testing and harsh operating environments.

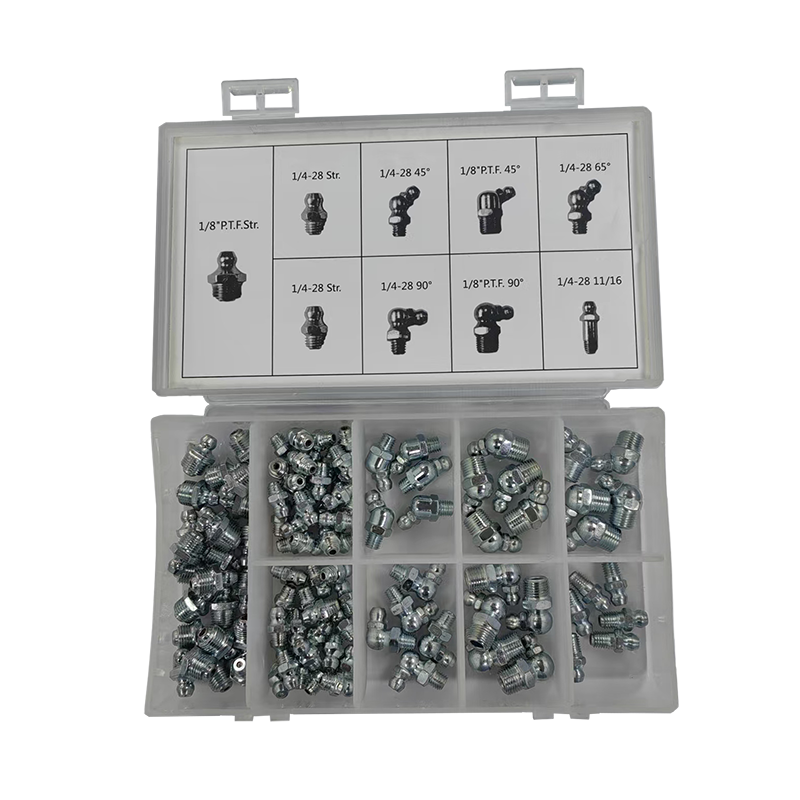

Choosing the correct head profile is entirely dictated by the physical layout of the machine block. While the internal spring-and-ball mechanics remain identical across the board, the external geometry determines how safely and effectively a maintenance crew can service the asset.
Design: The nipple head points directly outward, sharing the exact same linear axis as the threaded shank.
Best For: Unobstructed zones where a technician can attach the hose straight on without physical interference. You will typically find these on exposed wheel bearings, open conveyor tail pulleys, and external pivot pins on heavy earthmoving equipment.
Pros: Because they lack a bent neck, straight profiles boast the highest structural integrity. They are easily installed using a standard deep well socket, and they carry the absolute lowest risk of shearing off during the tightening phase.
Design: The head tilts at a 45-degree angle relative to the base.
Best For: Machinery zones with moderate clearance issues. If a direct approach is blocked by an adjacent cast iron flange, a mounting bracket, or a spinning shaft, the 45-degree tilt allows the grease hose to approach from a forgiving diagonal trajectory.
Pros: This profile hits the sweet spot between accessibility and strength. It prevents the grease gun hose from kinking dangerously while keeping the technician's hands clear of pinch points.
Design: The head sits at a sharp right angle, perpendicular to the threaded base.
Best For: Highly confined spaces and extreme low-clearance pockets. These are practically mandatory inside automotive U-joints, tucked underneath heavy steel skid plates, or on the blind side of complex industrial gearboxes where the tool must attach parallel to the machine surface.
Pros: They solve severe accessibility nightmares that would otherwise require partial machine disassembly. However, technicians must be careful during installation. The 90-degree neck creates a natural leverage point, making the hollow shank highly susceptible to snapping if over-torqued with a heavy wrench.
| Feature | Straight | 45° Angled | 90° Angled |
|---|---|---|---|
| Primary Application | Open, unobstructed access | Moderate obstructions | Severe space constraints |
| Tool Approach Angle | 0° (Directly in line) | 45° (Diagonal approach) | 90° (Perpendicular approach) |
| Installation Tool Required | Deep socket or nut driver | Open-end wrench | Open-end wrench |
| Required Rotational Sweep | Minimal (Base hex width only) | Moderate sweep radius | Maximum sweep radius |
| Risk of Installation Breakage | Very Low | Moderate | High (Requires precise torque) |
A frequent question among maintenance planners is whether they can swap out factory-installed straight hardware for angled alternatives to speed up PM (Preventative Maintenance) routes. In most practical scenarios, the answer is yes. However, it requires careful attention to specific mechanical constraints.
The angle of the head has absolutely no bearing on the thread geometry. As long as the base thread of the new angled grease fitting matches the existing tapped hole, they are mechanically interchangeable. For instance, if you extract a straight 1/4"-28 fitting, you must replace it with a 45° or 90° variant that also features a 1/4"-28 thread. Attempting to force a mismatched pitch will permanently gall the equipment's cast housing, leading to a costly re-tapping job.
The physical reality of installing angled hardware presents a unique challenge. Unlike a straight profile, which spins symmetrically on its axis, an angled neck requires a much wider rotational sweep. If the tapped hole is located flush against a raised casting rib, the angled neck may collide with the metal before the threads are fully seated.
In addition, the final direction the nipple faces is critical. The opening must point directly toward the mechanic's access path. This precise positioning is known in the trade as "clocking." Because tapered threads seal by wedging together, you generally have a small margin of rotational adjustment. If the fitting locks up but faces the wrong way, you may need to back it out and apply a specialized liquid thread sealant. This allows you to achieve a secure, leak-proof seal while ensuring the nipple points in the optimal direction without shearing the base.
Proper maintenance requires strict attention to detail. Installing the incorrect size or applying brute force can lead to catastrophic thread failure, grease bypass, and ultimately, bearing destruction due to starvation.
Sizing an existing piece of hardware accurately is the first step in ensuring a leak-proof seal. Unlike standard machine bolts, most SAE lubrication points utilize tapered threads designed to wedge tightly into the receiving hole, creating a mechanical interference seal without the need for O-rings or gaskets.
Visual inspection is rarely enough. Technicians should utilize a precision thread pitch gauge and a digital caliper. Clean the component thoroughly, then measure the outside diameter (OD) of the threads. A standard 1/4"-28 fitting will measure approximately 0.250 inches in diameter, while a 1/8" NPT/PTF fitting is significantly bulkier, measuring closer to 0.405 inches. Finally, press the thread pitch gauge against the base to verify the exact number of threads per inch (TPI).
"How tight is too tight?" is an everyday dilemma in maintenance garages. Because these components are hollow to allow the passage of lubricant, their structural integrity is significantly lower than that of a solid Grade 8 bolt.
The industry-standard rule of thumb for installing tapered hardware is the TFFT (Turns From Finger Tight) method. Thread the grease nipples into the housing by hand until they can no longer be turned using just your fingers. Once finger-tight, use a calibrated wrench to turn the base an additional 1/2 to 1 full turn. This is exactly enough pressure to engage the taper and create a robust seal. Do not over-torque. Applying excessive force with a long wrench will instantly shear the hollow shank, leaving the threaded portion permanently stuck inside the machine block.
As global manufacturing supply chains merge, mechanics frequently encounter machinery that features a chaotic mix of domestic SAE and international Metric hardware. Confusing these two standards is one of the most common—and expensive—mistakes in heavy equipment maintenance.
To the naked eye, a 1/4"-28 SAE fitting and an M6x1.0 Metric fitting look virtually indistinguishable. However, their physical dimensions and thread pitches are fundamentally incompatible. The SAE 1/4"-28 has 28 threads per inch (a pitch of roughly 0.907mm), whereas the M6x1 has exactly 1 thread per millimeter.
If a technician mistakenly attempts to drive an M6 metric fitting into a 1/4"-28 tapped hole, it will initially feel loose. As it goes deeper, the differing thread pitches will cause the metals to bind. Applying wrench pressure at this stage will cross-thread the hole, stripping the internal threads and destroying the seal. Conversely, forcing a 1/4"-28 fitting into an M6 hole will immediately sheer the softer hollow shank of the fitting itself. Always keep a mechanical thread gauge in your toolbox to prevent these disasters.
As industrial automation accelerates, there is a noticeable shift in how heavy equipment is maintained. While automated central lubrication systems are rapidly gaining traction in large-scale manufacturing, manual maintenance using traditional fittings remains absolutely irreplaceable for mobile heavy equipment, agriculture machinery, and legacy industrial assets.
Recent market analysis indicates a strong industry pivot toward advanced metallurgical treatments. To combat the highly corrosive environments of offshore drilling, chemical processing, and winter road maintenance, engineers are moving beyond standard clear zinc plating. Enhanced zinc-nickel alloys and 303/316 stainless steel variations are becoming the new baseline for high-end hardware. This trend highlights a growing awareness on the shop floor: investing pennies in superior, corrosion-resistant SAE J534 fittings prevents thousands of dollars in downtime caused by rusted, seized, or snapped lubrication points.
The integrity of your preventative maintenance program is only as strong as the hardware you install. Sourcing replacement parts from unverified suppliers often results in premature component failure. Low-quality hardware frequently suffers from weak internal ball-check springs, inadequate case hardening, and porous zinc plating, leading to rapid corrosion and grease blockages under high pressure.
When procuring maintenance stock, it is critical to ensure that the products strictly adhere to engineering standards. Certified suppliers provide hardware that guarantees exact thread tolerances, preventing the costly housing damage associated with substandard machining. For facilities managing diverse equipment fleets, investing in comprehensive solutions—such as a 100-Piece SAE Grease Fitting Assortment Kit featuring a mix of 1/4"-28 and 1/8" PTF sizes in straight, 45°, and 90° profiles—ensures technicians always have the exact geometry needed to tackle any clearance challenge.
Whether you are rebuilding a commercial conveyor system, maintaining a fleet of agricultural tractors, or servicing automotive suspensions, selecting premium lubrication fittings is a non-negotiable requirement for operational success. Visit Jinlin Industrial to explore a complete catalog of precision-engineered, case-hardened SAE components designed to withstand the harshest industrial environments.
Choosing between straight, 45°, and 90° profiles ultimately comes down to analyzing the accessibility and physical clearance of your specific machinery. While straight versions offer the strongest structural profile and easiest installation, angled variants are indispensable problem-solvers for obstructed, hard-to-reach maintenance points.
Maintaining machinery with the correct, properly torqued SAE hardware will save operations thousands of dollars in premature bearing replacements, labor costs, and unexpected downtime. Take the time to audit your equipment's current lubrication points today. Verify your thread sizes carefully, respect the torque limits, and upgrade any damaged, clogged, or hidden components to the appropriate angled versions to ensure optimal, long-lasting performance.
The most prevalent sizes found on equipment in North America are the 1/4"-28 tapered thread and the 1/8" NPT (or PTF) thread. These sizes are universally utilized across automotive steering linkages, agricultural machinery, and heavy industrial bearings due to their optimal balance of grease flow rate and structural shank strength.
Both are tapered pipe threads, but PTF (Pipe Thread Fuel) is specifically engineered for applications where a secure seal is required without the use of thread sealant. PTF threads have a slightly shorter thread profile compared to standard NPT, allowing them to wedge tighter into the tapped hole and create a superior mechanical interference seal for high-pressure grease.
Yes, standard grease gun couplers are engineered to snap securely onto the universal spherical head of any SAE J534 compliant component. The internal ball-check valve and the external nipple head share identical dimensions regardless of whether the threaded base is straight, tilted at 45°, or positioned at a sharp 90° angle.
Begin by using a specialized fitting rejuvenation tool, which allows you to tap light penetrating oil directly into the valve to dissolve hardened, oxidized grease. If the internal ball remains seized after applying light heat and penetrating oil, it is safest and most efficient to simply extract and replace the component entirely to prevent bearing starvation.
They do not have a strict mileage or time-based expiration date. However, they should be replaced immediately if the spherical head becomes burred or deformed (causing the grease gun to leak), if the internal spring fails to snap the ball back into place, or if heavy external corrosion compromises the structural integrity of the hex base.
Generally, they do not require additional sealants. Most SAE sizes feature tapered threads that inherently create a secure, metal-to-metal compression seal when tightened correctly. Utilizing Teflon tape is actually strongly discouraged in lubrication systems; shredded fragments of the tape can easily shear off, bypass the check valve, enter the bearing housing, and cause severe internal friction damage.
