Imagine walking into the maintenance bay to audit quarterly costs, only to stare down a catastrophic $5,000 repair invoice for a single truck's Selective Catalytic Reduction (SCR) system. The culprit isn't a faulty engine or poor maintenance scheduling. A mechanic simply repurposed an old, incompatible dispensing handle. Using the wrong hardware for Diesel Exhaust Fluid (DEF) is a high-stakes engineering error. It inevitably leads to fluid contamination, catalyst poisoning, and severe engine damage.
As global emission mandates like EPA 2027 and Euro 7 tighten, the margin for error in exhaust aftertreatment has vanished. Industry data shows that fleet operators are rapidly upgrading their fluid management infrastructure. Why? Because modern onboard diagnostics (OBD) will instantly derate an engine if they detect even microscopic trace impurities in the AUS32 solution. Safely handling this chemically unique fluid requires highly specialized, purpose-built tools. In this technical guide, we will break down the exact science, materials, and engineering specifications that make an applicator safe and effective. Whether you are outfitting a massive commercial fleet or managing an agricultural operation, you will learn how to specify the right equipment to protect your heavy-duty investments.
Equipment buyers frequently stumble over emission fluid terminology. To specify the correct hardware, you must first understand the chemistry of the liquid flowing through your hoses. Diesel Exhaust Fluid (DEF) is the generic engineering term utilized primarily in North America. AdBlue, conversely, is a trademarked name owned by the German Association of the Automotive Industry (VDA), recognized globally.
Despite the differing nomenclature, the chemical makeup of both liquids is strictly identical. Both consist of exactly 32.5% high-purity synthetic urea and 67.5% deionized water. In technical terms, this solution is classified as AUS32 (Aqueous Urea Solution 32.5%). Because its chemical composition is rigidly governed by the ISO 22241 standard, the physical properties, viscosity, and corrosiveness remain constant regardless of the brand printed on the tote.
Consequently, the naming convention does not alter your hardware requirements. A certified DEF nozzle will work flawlessly across all AUS32 brands, provided it meets the stringent material tolerances dictated by international manufacturing standards.
Understanding the "why" behind specialized dispensing equipment requires a hard look at the aggressive chemistry of urea. A frequent and costly mistake in commercial shop settings is attempting to repurpose an old diesel fuel handle or a standard water hose attachment. This practice guarantees catastrophic failure.
The core issue lies in chemical reactivity. The combination of synthetic urea and deionized water creates a slightly alkaline mixture that is exceptionally aggressive toward common industrial metals. When this fluid contacts carbon steel, brass, copper, zinc, or aluminum, rapid galvanic corrosion begins immediately. The fluid effectively strips trace minerals and metal ions directly from the surface of the non-compatible metal.
This chemical reaction poses a dual threat to your operation. First, it compromises the structural integrity of the applicator itself, leading to blown seals, jammed trigger mechanisms, and eventual mechanical seizure. Second—and far more critically—the dissolved trace minerals contaminate the fluid. When this tainted liquid is injected into the hot exhaust stream, the trace metals bind to the active sites on the SCR catalyst washcoat. This permanent catalyst poisoning prevents the system from converting harmful NOx into harmless nitrogen and water. To prevent voided warranties, utilizing a purpose-built urea dispensing nozzle is absolutely non-negotiable.
To engineer out the risk of contamination, fluid delivery hardware must be constructed from a highly specific list of chemically inert materials. The ISO 22241-3 standard explicitly outlines which substances are safe for the handling and transfer of AUS32.

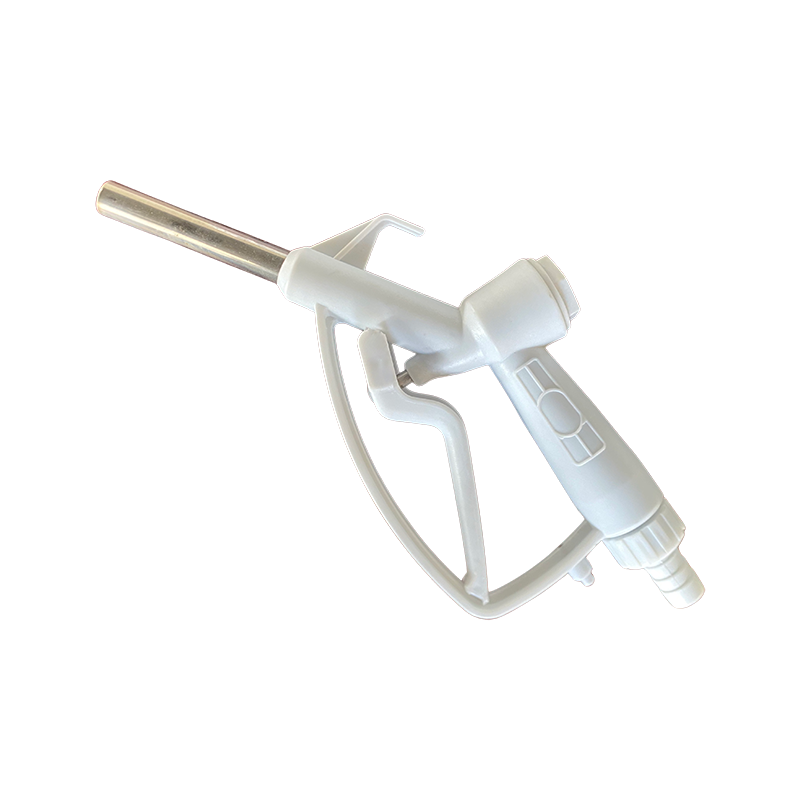

Industrial-grade polymers form the backbone of compliant delivery systems. A polypropylene AdBlue nozzle is heavily favored in harsh shop environments for several practical engineering reasons. Polypropylene (PP) is a thermoplastic polymer that exhibits total chemical immunity to aqueous urea. It cannot undergo the galvanic corrosion that plagues traditional metals.
Furthermore, polypropylene is inherently lightweight. Picture a technician fueling multiple heavy-duty trucks back-to-back; reducing the weight of the handle significantly minimizes wrist fatigue. From a specification standpoint, high-quality PP units are typically rated for up to 3.5 bar (50 psi) operating pressure, ensuring they can handle the output of standard electric diaphragm pumps without cracking or leaking.
While polymers are excellent for the main housing, the tip often requires metallic reinforcement. This component sustains the highest mechanical stress when scraped against a vehicle's filler neck. However, standard metals will instantly contaminate the fluid.
Specifically, austenitic stainless steel grades such as 304 and 316 are mandated by industry standards. These high-grade alloys contain elevated levels of chromium and nickel, forming a microscopic, passive oxide layer on the surface. This invisible shield prevents the urea solution from interacting with the underlying iron. Grade 316 stainless steel also includes molybdenum, providing superior resistance to localized pitting. This ensures long-term structural integrity for heavy-duty commercial use.
Beyond the exterior casing, internal components such as O-rings, springs, and diaphragms must be strictly compatible. Standard nitrile rubber (Buna-N) seals will rapidly degrade, swell, and leak when exposed to urea. Therefore, compliant hardware exclusively utilizes EPDM (Ethylene Propylene Diene Monomer) or FKM (Viton) for all internal sealing mechanisms, ensuring zero fluid degradation from the inlet to the tip.
| Component | Approved (ISO 22241 Compliant) | Strictly Prohibited (Causes Contamination) |
|---|---|---|
| Main Body Housing | High-density Polypropylene (PP), PTFE | Carbon Steel, Aluminum, Brass, Copper |
| Spout / Tip | 304 or 316 Austenitic Stainless Steel | Zinc-plated steel, Chrome-plated brass |
| Internal Seals | FKM (Viton), EPDM | Buna-N, Standard Nitrile Rubber, Neoprene |
When upgrading your fluid management systems, selecting the right materials is merely the baseline. Modern dispensing tools come equipped with precision engineering features designed to optimize operational efficiency, minimize expensive waste, and protect the operator.
The choice between a manual and an automatic mechanism depends entirely on your pump flow rate and operational scale. Manual handles are highly cost-effective and best suited for low-volume, gravity-fed applications. However, they require constant visual monitoring to prevent overflowing.
In contrast, commercial fleets and high-volume pump-driven systems strictly require an automatic shut-off feature. These units utilize a sophisticated Venturi mechanism. As fluid rises in the vehicle's tank and covers a small sensing port near the stainless steel spout, it alters the internal vacuum pressure. This pressure shift instantly trips a mechanical diaphragm, snapping the valve shut in milliseconds before a single drop can spill.
One of the most critical safety features in heavy-duty commercial environments is Magnetic Miss-Filling Prevention (MFP). Because DEF and diesel filler necks are frequently located mere inches apart on commercial semi-trucks, accidental cross-contamination is a massive operational risk. Pumping urea into a diesel fuel tank will completely destroy the engine's high-pressure fuel injection system.
An MFP-equipped unit contains a specialized magnetic safety switch inside the spout. It will not dispense fluid unless it is inserted into a vehicle filler neck containing a matching magnetic adapter ring. If a distracted driver inserts the handle into the diesel tank, the magnetic switch remains disengaged, and the trigger physically cannot be pulled.
Selecting the appropriate dispensing hardware requires matching the tool's specifications to your storage infrastructure. A one-size-fits-all approach simply does not apply to emission fluid management. Here is a practical engineering breakdown of how to spec your equipment.
For 55-Gallon Drums (Low Volume):
Independent mechanics and small farms typically utilize low-voltage electric pumps or rotary hand pumps. For this setup, a lightweight manual handle with a 3/4-inch inlet is usually sufficient. Look for units that handle flow rates around 40 L/min (10 GPM). Manual control is adequate here because the overall transfer volume is low.
For 330-Gallon IBC Totes (High Volume):
Large agricultural and construction operations rely on massive IBC totes connected to high-capacity diaphragm pumps. A setup of this scale necessitates robust AdBlue filling equipment featuring an automatic shut-off function. You need a unit with a 1-inch inlet capable of handling flow rates up to 60 L/min (16 GPM). Attempting manual dispensing from a highly pressurized IBC tote dramatically increases the risk of blowback and overflow, wasting expensive fluid.
Additionally, always integrate a high-quality stainless steel or polymer swivel connector into your assembly. When pulling a heavy EPDM rubber hose from a pump to a vehicle, the hose naturally coils and twists. A 360-degree swivel reduces physical strain on the operator's wrist and prevents the hose crimps from failing under tension.
Even the most precisely engineered dispensing equipment requires routine care. Because of the unique chemical properties of a 32.5% urea solution, standard maintenance procedures used for petroleum-based fuel hardware are entirely ineffective.
The primary maintenance challenge is crystallization. When the fluid is exposed to the atmosphere, the deionized water content evaporates rapidly. The synthetic urea is left behind, forming hard, white, salt-like crystals. Over time, this buildup restricts fluid flow, causes automatic shut-off sensors to fail, and can seize the mechanical trigger.
When crystallization occurs, follow strict cleaning protocols to avoid contaminating the fluid pathway. Never use chemical solvents like brake cleaner, degreasers, or standard industrial soaps. These leave residues that will instantly poison the fluid upon next use. Furthermore, avoid standard tap water, which contains heavy metals like calcium and iron. The only approved method is submerging the affected tip in a bucket of warm deionized (DI) or distilled water for 15 to 30 minutes. Urea is highly water-soluble, and this will safely dissolve the crystals.
Relying on traditional metal equipment to handle emission fluids will trigger rapid galvanic corrosion, leaching harmful minerals that will ultimately destroy modern diesel exhaust systems. By specifying a purpose-built, ISO 22241-compliant dispensing unit with the correct flow rate and safety features, you actively protect your vehicle's expensive SCR catalyst. Take the time to audit your current fluid management setup today. Upgrading to professional-grade equipment ensures clean, safe, and efficient fluid transfer, keeping your operations running smoothly without costly downtime.
Ready to upgrade your fluid management infrastructure? Explore industry-compliant, precision-engineered solutions at Jinlin Industry to find the exact specifications required for your commercial or agricultural fleet.
Absolutely not. Standard fuel delivery tools contain metals like aluminum, brass, carbon steel, or copper. These metals react aggressively with the slightly alkaline urea solution, causing rapid galvanic corrosion. This chemical reaction leaches trace minerals into the fluid, which will permanently damage and clog the vehicle’s Selective Catalytic Reduction (SCR) system, leading to forced engine de-rates and massive repair bills.
The most reliable and compliant materials are high-density industrial plastics (like Polypropylene) and specific grades of austenitic stainless steel (such as 304 and 316). A body made of durable polypropylene combined with a specialized stainless tip provides the perfect balance of structural durability, lightweight ergonomics, and total resistance to urea-induced corrosion. Internal seals must be made of FKM (Viton) or EPDM.
If you are using an automatic shut-off unit, premature clicking usually occurs for two main reasons. First, the flow rate of the pump may be too high for the vehicle's narrow tank neck, causing fluid to back up and falsely trigger the vacuum sensor. Second, white urea crystals may have formed inside the tip, obstructing the internal air-sensing Venturi tube that controls the automatic shut-off diaphragm.
Pumping DEF into a diesel tank is a catastrophic error. Because DEF consists of 67.5% water and highly corrosive urea, it will instantly begin destroying the engine's high-pressure fuel pump, fuel lines, and injectors. If this happens, do not start the engine. The entire fuel system must be immediately drained, flushed, and professionally cleaned. This is why investing in equipment with Magnetic Miss-Filling Prevention (MFP) is highly recommended for commercial fleets.
Rinse and submerge the affected area thoroughly using only warm deionized (DI) or distilled water. Because urea is highly water-soluble, the warm water will naturally and safely dissolve the crystals. Never use standard tap water, degreasers, or chemical cleaners. The minerals and harsh chemicals in these substances will instantly contaminate the fluid pathway and eventually ruin your vehicle's exhaust system.
