Is messy fluid transfer slowing down your busy workshop? We have all been there. You grab the wrong equipment, and suddenly you are dealing with inevitable spills, premature mechanical wear, and frustrating delays on the shop floor. Workshop managers and frontline mechanics frequently struggle to find the optimal system for moving bulk liquids. Too often, they settle for tools that create safety hazards or deliver agonizingly slow dispense rates.

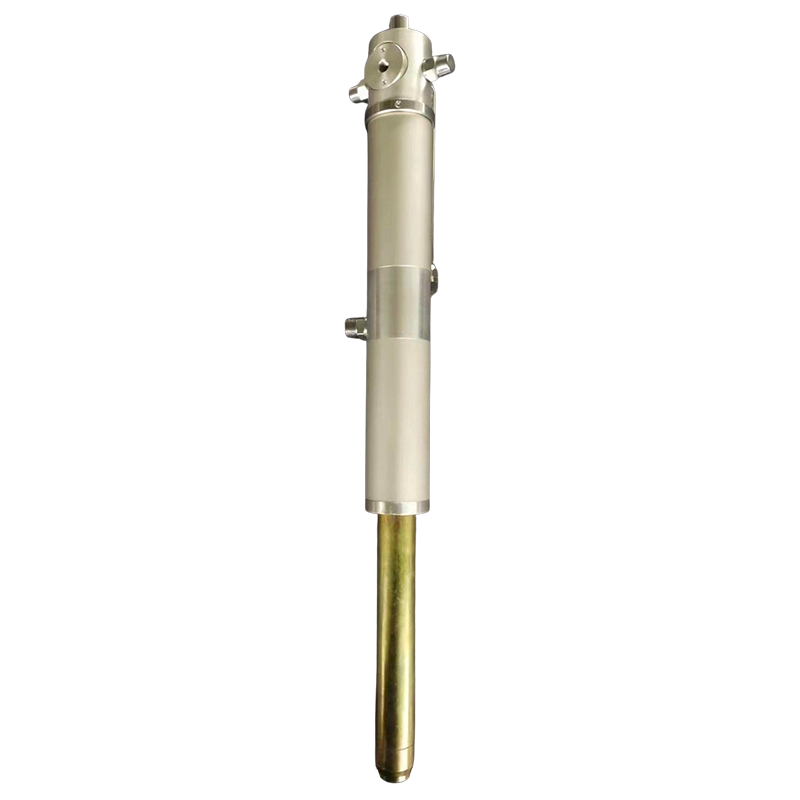

Enter the 1:1 pneumatic fluid handling system. It is a foundational staple for fast, safe, and reliable liquid movement. But is it the exact right fit for your specific architectural layout and daily workflow? In this comprehensive guide, we will break down the precise mechanics behind these systems. We will compare them directly to electric and higher-ratio alternatives, helping you decide if a 1:1 air-driven solution is the ultimate upgrade for your service bay.
Ideal Use Case: A 1:1 pneumatic dispensing system is the optimal choice for transferring low-to-medium viscosity fluids—such as standard motor oil, antifreeze, and hydraulic fluid—over relatively short distances.
Safety First: Because they rely on compressed air rather than electricity, air-operated designs completely eliminate the risk of sparking. This makes them inherently safer in environments saturated with flammable fumes or combustible materials.
High Flow, Low Pressure: The "1:1" designation dictates that the fluid output pressure perfectly matches the incoming air pressure. This specific engineering maximizes the overall flow rate (volume) rather than focusing on high-pressure pushing power.
Cost-Effective Durability: Featuring significantly fewer moving parts and lacking an electric motor that could burn out under stress, these units offer an extended operational lifespan and remarkably lower long-term maintenance costs for industrial facilities.
Looking at the current automotive and industrial maintenance landscape, there is a massive shift in fluid engineering. Driven by stringent global fuel economy standards and the rise of hybrid vehicles, OEMs are rapidly transitioning to ultra-low-viscosity synthetic oils, such as 0W-16 and 0W-20. In the past, shops relied heavily on 3:1 or 5:1 pumps to push thick, conventional 10W-40 or heavy gear oils through their bays.
Today, those high-pressure systems are often overkill for standard engine oils. Furthermore, modern quick-lube centers prioritize rapid bay turnover. Because lower viscosity fluids flow easily with minimal resistance, facility managers are increasingly adopting high-volume, low-pressure 1:1 systems. This aligns perfectly with the contemporary need to dispense thinner fluids faster, ultimately reducing vehicle wait times without over-pressurizing the shop's plumbing.
When outfitting a professional garage or a heavy-duty industrial facility, intimately understanding the equipment you rely on daily is critical. A specialized piece of fluid handling equipment is designed specifically to move bulk liquids quickly and safely. However, to truly grasp its value on the shop floor, we must break down the internal mechanics driving its operation.
The ratio of any air-driven unit indicates the direct relationship between the air pressure supplied to the motor and the resulting fluid pressure discharged from the outlet. The concept behind a 1:1 ratio is elegantly straightforward. For every 1 Pound per Square Inch (PSI) of compressed air supplied, the equipment delivers exactly 1 PSI of fluid pressure out.
For instance, if your shop's primary air compressor feeds the system at an operating pressure of 5 to 8 bar (roughly 70 to 115 PSI), the oil will exit the dispensing nozzle at that exact same pressure. This specific configuration prioritizes pure volume over brute pressure. It does not multiply the force, meaning it is not engineered to push thick, sludgy fluids through hundreds of feet of complex overhead piping. Instead, a standard pneumatic oil pump utilizes your existing shop air infrastructure to deliver a high-volume, steady stream of fluid directly from the source container into a waiting receptacle.
At the mechanical core of these devices lies a relatively simple but highly effective reciprocating mechanism. As compressed air enters the motor chamber, it forces the internal piston to travel upward. This rising motion creates a strong vacuum, effortlessly drawing the oil up through the submerged suction tube. Subsequently, as the piston descends on the return stroke, it forces the trapped oil out through the discharge valve.
This continuous, alternating cycle is meticulously managed by an internal air directional valve. Specifically, one of the greatest technical advantages of this reciprocating mechanism is its built-in resistance to stalling and overheating. If a mechanic suddenly closes the dispensing nozzle, the fluid backpressure simply equalizes with the incoming air pressure. The unit quietly stops cycling, holding pressure indefinitely without causing any thermal damage to the internal seals.
It is a fundamental truth in industrial maintenance that not every tool is suited for every job. Selecting the correct ratio is ultimately a matter of matching the hardware to both the physical properties of the fluid and the architectural layout of your workspace. The 1:1 configuration possesses a very specific "sweet spot" where its performance eclipses all other alternatives.
The primary determining factor in your selection process should always be fluid viscosity—essentially, the thickness of the liquid and its natural resistance to flow. A 1:1 unit is explicitly engineered to handle low-to-medium viscosity fluids. Consequently, it serves as an incredibly reliable lubricant transfer pump for everyday automotive and machining fluids.
In practice, it excels at moving standard motor oils, automatic transmission fluids (ATF), hydraulic oils, and ethylene glycol-based coolants. Because these modern fluids flow relatively easily at standard room temperature, the system does not require a multiplied pressure ratio to force them up the suction tube. However, attempting to move highly viscous materials, like heavy 85W-140 gear oil or chassis grease, will result in drastically reduced flow rates and severe equipment strain.
Distance is the natural enemy of fluid pressure. As liquid travels through winding hoses and rigid pipes, friction against the inner walls causes a compounding drop in pressure. Because a 1:1 unit does not multiply the starting pressure, it is strictly designed for short-distance applications.
These units represent the perfect solution for moving oil directly out of a bulk drum into a nearby measuring jug, a rolling oil drainer, or directly into a vehicle positioned just a few feet away. Conversely, if your workshop architecture requires pumping oil from a bulk storage tank in the basement, up two floors, and across a 100-foot ceiling gantry to a retractable hose reel, a 1:1 setup will simply lack the necessary pushing power to overcome that immense friction loss.
Understanding the distinction between ratios is critical to avoid burst hoses or agonizingly slow dispense times. While the industry is shifting toward thinner fluids, matching the pump ratio to your specific bay layout remains non-negotiable.
| Pump Ratio | Air-to-Fluid Pressure | Ideal Fluid Viscosity | Optimal Pumping Distance | Primary Workshop Application |
|---|---|---|---|---|
| 1:1 | 100 PSI Air = 100 PSI Fluid | Low to Medium (Motor Oil, ATF, Coolant) | Short (0 - 15 feet) | Direct drum dispensing, transferring to nearby containers. |
| 3:1 | 100 PSI Air = 300 PSI Fluid | Medium (Motor Oil, Light Gear Oil) | Medium (15 - 50 feet) | Feeding standard wall-mounted hose reels in a service bay. |
| 5:1 | 100 PSI Air = 500 PSI Fluid | High (Heavy Gear Oil, 80W-90) | Long (50+ feet) | Pumping thick fluids through extensive overhead piping networks. |
As established, the 1:1 configuration is the undisputed master of volume over short distances. If your primary objective is to empty a barrel rapidly into secondary containers without needing to force the liquid through long, restrictive hoses, this ratio will consistently provide the fastest flow rate of the three available options.
A 3:1 unit features a significantly larger air motor piston relative to its fluid piston. This mechanical advantage effectively multiplies the incoming air pressure by three. It serves as the industry standard for medium-duty workshops where oil must be pumped from a central storage room to a hose reel located 30 to 50 feet away. While the increased pressure easily overcomes hose friction, it does sacrifice some maximum flow volume compared to the 1:1 model.
The 5:1 variant is a heavy-duty powerhouse. It becomes strictly necessary when dealing with high-viscosity fluids like thick 80W-90 gear oils on a cold morning. In addition, it is required when the workshop architecture demands pumping fluid over vast distances through complex, multi-dispenser piping systems. Utilizing a 5:1 unit for short-distance, low-viscosity transfer is generally considered extreme overkill and can lead to dangerous over-pressurization.
The ongoing debate between electric and air-powered transfer equipment remains a constant topic among industrial maintenance professionals. While electric variants certainly have their place—primarily in mobile applications where dedicated air compressors are unavailable—pneumatic systems offer distinct, highly measurable advantages within a fixed workshop environment.
Garages, hangars, and industrial plants are inherently hazardous environments. The lingering presence of atomized oils, spilled cleaning solvents, and volatile gasoline fumes creates a constant, underlying risk of combustion. Traditional electric motors utilize carbon brushes that can generate microscopic sparks during standard operation.
In stark contrast, an air operated oil pump is driven entirely by the kinetic energy of compressed air. Because it contains absolutely no electrical wiring, switches, or armatures, there is zero risk of sparking. This intrinsic safety feature makes air-driven units the mandatory, non-negotiable choice for facilities adhering to strict fire safety and occupational hazard regulations.
By their very nature, electric motors generate localized heat. If an operator accidentally closes the dispensing nozzle while the motor is still engaged (a damaging scenario known in the industry as "dead-heading"), the motor will rapidly overheat. This often results in melted internal wiring or a completely burnt-out stator.
Pneumatic mechanisms do not suffer from this crippling limitation. As they operate, the rapid expansion of compressed air actually produces a noticeable cooling effect on the metal housing. Furthermore, if a pneumatic unit is dead-headed, the internal fluid pressure simply equalizes with the air pressure, and the cycling stops immediately. It will hold that pressure safely for hours, instantly resuming operation the moment the mechanic reopens the nozzle.
Integrating a 1:1 dispensing unit into your daily workflow brings several structural and operational benefits that directly, and positively, impact a workshop's bottom line.
Bulk automotive fluids are most commonly delivered and stored in standard 55-gallon steel or heavy-duty plastic drums. A dedicated drum oil pump is specifically engineered with a suction tube length perfectly calibrated to reach the very bottom of these barrels. Beyond basic functionality, professional models feature adjustable 2-inch NPT bung adapters. This allows the technician to slide the rigid tube into the drum and thread the adapter tightly into the barrel's opening, securing the assembly vertically while sealing out environmental contaminants like dust and moisture.
Industrial pneumatic systems are quite literally built to withstand heavy-duty abuse. Because the motor relies on simple air pressure rather than complex electrical components and wearable carbon brushes, there are significantly fewer moving parts susceptible to failure. A well-maintained air unit, constructed from rugged materials like carbon steel or aircraft-grade aluminum, can endure years of punishing daily use with minimal maintenance.
Selecting the correct equipment requires far more than just picking a reputable brand name; it demands matching hard hardware specifications to your specific operational realities. When evaluating a workshop oil transfer pump, facility managers must look beyond flashy marketing claims and analyze the empirical data. Choosing inadequate specifications often leads to premature equipment failure.
| Specification | Professional Benchmark for 1:1 Pumps | Why It Matters on the Shop Floor |
|---|---|---|
| Max Flow Rate | Up to 18 L/min (approx. 4.7 GPM) | Determines how fast you can fill a container. Viscosity directly affects actual output. |
| Air Inlet Size | 1/4" NPT | Must perfectly match your shop's existing air hose fittings for quick integration. |
| Fluid Outlet Size | 1/2" NPT | Dictates the size of the dispensing hose you can attach without causing a bottleneck. |
| Operating Air Pressure | 5 - 8 Bar (70 - 115 PSI) | Ensures the internal seals operate efficiently within your compressor's standard output range. |
The flow rate dictates the ultimate speed of your daily operations. For a bustling automotive shop, a benchmark of around 18 Liters Per Minute (L/min) is highly efficient for a 1:1 setup. However, it is crucial to note that manufacturers list the theoretical "free-flow" rate based on pumping light fluids at room temperature. When pumping thicker fluids like cold 10W-40, the actual working flow will naturally drop. Always ensure your shop compressor can consistently deliver the required 5 to 8 bar (70-115 PSI) to maintain this flow without short-cycling.
Compatibility with your existing shop infrastructure is absolutely essential. Most standard 1:1 units feature a 1/4-inch air inlet and a 1/2-inch fluid outlet. You must verify that you have the correct quick-connect couplers on hand. Moreover, the internal seals must be chemically compatible with the fluid you intend to transfer. For standard petroleum-based lubricants, bodies constructed with carbon steel paired with Buna-N (Nitrile) seals are perfectly adequate.
Even the highest quality industrial equipment will underperform if installed haphazardly or neglected over time. Implementing strict installation protocols and a routine maintenance schedule from day one is the most effective way to maximize the lifespan of your investment.
Proper initial setup ensures a hermetic seal and optimal fluid dynamics. Before inserting the suction tube into a fresh drum, take a moment to wipe the tube completely free of shop dust or metallic debris. Slide the mechanism carefully through the 2-inch bung adapter and tighten the collar securely to the drum to prevent vibration. Next, connect your fluid discharge hose to the outlet port, ensuring you wrap the NPT threads with PTFE sealant tape to prevent messy weeping leaks. Finally, attach the air line to the inlet, making sure the air regulator is initially dialed down to zero before slowly bringing it up to operating pressure.
Ask any seasoned industrial maintenance engineer, and they will tell you that the secret to pneumatic longevity is an FRL unit. Air compressors naturally generate condensation, sending water vapor and rust particulates straight through your air lines.
The Filter strips water and dirt from the incoming air, preventing internal rust in the air motor.
The Regulator ensures the unit does not receive air pressure exceeding its maximum 8 bar rating, preventing blown O-rings.
The Lubricator adds a microscopic mist of pneumatic oil into the air stream, keeping the internal pistons and directional valves gliding smoothly. Installing an FRL unit directly upstream is non-negotiable for professional setups.
A 1:1 pneumatic oil pump stands as the undisputed champion for fast, safe, and highly efficient short-distance transfer of low-to-medium viscosity fluids. By utilizing compressed air, these units completely remove the dangerous electrical sparking risks associated with traditional electric motors, ensuring strict compliance with industrial safety protocols.
If your busy shop needs to move motor oil, transmission fluid, or coolant quickly out of a drum without the looming threat of motor burnout or electrical hazards, a 1:1 ratio is undoubtedly your most cost-effective and durable choice. Ready to optimize your fluid handling and eliminate shop floor bottlenecks? Evaluate your daily operational demands and explore professional-grade pneumatic solutions at Jinlin Industrial to find the exact pump engineered for your service bay's success.
The primary difference lies in how they handle air pressure relative to fluid output. A 1:1 pump outputs fluid at the exact same pressure as the incoming air (e.g., 100 PSI in = 100 PSI out), making it ideal for high-volume transfer over short distances. A 3:1 pump multiplies the incoming air pressure by three (e.g., 100 PSI in = 300 PSI out). This sacrifices some flow volume but provides the necessary pushing power to move medium-viscosity fluids through longer hoses and overhead reels.
Yes, absolutely. Coolant and antifreeze possess very low viscosities, making a high-volume 1:1 ratio pump the perfect tool for the job. However, you must always verify that the pump's internal wetted materials and seals (such as Buna-N or Viton) are chemically compatible with the specific glycol-based fluids you are transferring to prevent seal degradation.
Generally, no. While a 1:1 unit may slowly move heavy gear oils (such as 80W-90 or 85W-140) during very warm summer months, it is not engineered for this specific application. High-viscosity fluids create significant internal resistance. Because a 1:1 setup only outputs the exact same pressure it receives from the air compressor, it lacks the required pushing power to force thick, sludgy fluids through hoses efficiently. For heavy gear oils, upgrading to a 3:1 or 5:1 ratio is strongly recommended to prevent motor stalling.
One of the primary benefits of a 1:1 ratio is its relatively low air consumption compared to heavy-duty pneumatic impact wrenches or grinders. Most standard units require an operating pressure between 5 to 8 bar (70 to 115 PSI) and consume approximately 3 to 5 CFM (Cubic Feet per Minute) of air volume. A standard commercial shop compressor with a 20-gallon tank or larger is usually more than sufficient to operate the system continuously without causing the compressor to short-cycle.
Yes, pneumatic systems are inherently much safer for hazardous environments than their electric counterparts. Because they are powered entirely by the kinetic force of compressed air, there are no electrical motors, switches, or internal wiring that could generate an accidental spark. This makes them an excellent choice for environments where combustible fumes are present. However, moving fluids can still generate static electricity. Always ensure that the equipment, the storage drum, and the receiving container are properly grounded according to local safety regulations.
When utilized correctly and paired with compatible fluids, a high-quality industrial pneumatic unit can easily last for five to ten years in a demanding workshop setting. The longevity of the equipment is almost entirely dependent on routine maintenance and shop air quality. Because they possess very few moving parts, mechanical wear is inherently minimal. By consistently using an FRL (Filter, Regulator, Lubricator) unit to supply clean, dry, and lightly lubricated air, you protect the internal seals from premature degradation—the most common cause of failure.
