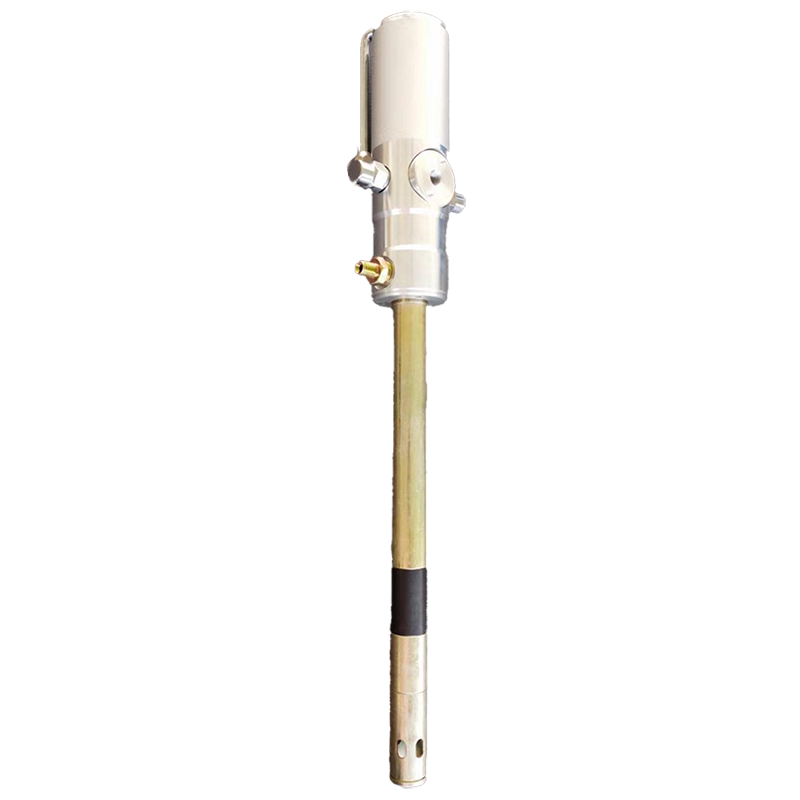

How Does A Pneumatic Pump Work?

Moving high-viscosity, abrasive, or hazardous fluids demands robust pumping equipment. Standard mechanical configurations often struggle under these punishing conditions. Industrial operators must prioritize safety and reliability above all else. Unlike traditional electrically driven centrifugal systems, pneumatic designs rely entirely on compressed air. This fundamental shift changes how facilities handle fluid transfer. It instantly simplifies ATEX compliance in explosive environments. It also greatly reduces routine maintenance overhead.

Understanding the internal mechanics of a Pneumatic Pump is the critical first step. Evaluating this technology allows you to determine if it aligns with your specific operational goals. We will guide you through the exact working principles and mechanical components. You will discover the operational advantages these units offer over motorized alternatives. Finally, we provide actionable steps for proper material selection and sizing.

Key Takeaways

• Pneumatic pumps utilize compressed air and alternating diaphragms to move fluid, eliminating the need for electric motors and mechanical seals.
• The mechanical design allows these pumps to run dry or dead-head safely without catastrophic equipment failure.
• While an air driven pump offers unmatched versatility and safety in hazardous environments, proper air supply sizing and material compatibility are critical to mitigating long-term energy and maintenance costs.
• Final selection should weigh the higher OPEX of compressed air generation against the lower CAPEX, reduced footprint, and simplified maintenance of the pump unit.

The Core Mechanism of a Pneumatic Pump

To fully grasp how these fluid transfer systems function, you must examine their internal architecture. The entire system operates purely on pressurized air. This unique configuration eliminates the need for electrical connections, complex wiring, or rotating motor shafts. The core mechanism relies on a highly synchronized, continuous sequence of mechanical events.

1. The Power Source (Air Valve System): Directional air valves serve as the central brain of the unit. They route compressed air alternately to two central air chambers. When pressurized air enters one chamber, the system simultaneously exhausts air from the opposite side. This rapid, alternating pressure shift drives the entire pumping cycle.
2. Fluid Displacement (The Diaphragms): Flexible diaphragms connect internally via a rigid central shaft. They safely separate the air mechanism from the fluid chambers. The incoming air pressure forces one diaphragm outward. This physical action violently discharges the liquid. Simultaneously, the connected shaft pulls the opposite diaphragm inward. This opposing action creates a strong vacuum. The vacuum naturally draws new fluid into the secondary chamber.
3. Flow Direction (Check Valves/Ball Valves): Inlet and discharge ball valves dictate the exact flow direction. They sit securely on specialized valve seats within the fluid manifolds. When the diaphragm pulls inward, the vacuum lifts the inlet ball. Fluid floods into the chamber. Upon the discharge stroke, internal pressure forces the inlet ball down firmly. It simultaneously lifts the discharge ball. This critical sequence prevents backflow and ensures a continuous, unidirectional fluid stroke.

Design Benefit

Standard mechanical configurations often rely heavily on mechanical seals and packing. These wearable parts inevitably degrade over time due to friction. Seal failure invariably leads to costly leaks and environmental hazards. The diaphragm design eliminates these vulnerable sliding friction points entirely. This inherently minimizes the risk of hazardous fluid leakage, keeping your facility safe.

Common Mistake: Operators frequently supply unfiltered, wet compressed air to the valve system. Moisture ruins the internal O-rings and causes the main air valve to stall. Always install an air filter regulator upstream to protect the core mechanism.

Translating Mechanics into Operational Advantages

The unique mechanical design translates directly into highly practical field benefits. Operators often choose these units specifically for demanding applications. They consistently solve complex transfer problems other equipment simply cannot handle.

• Inherent Safety and Compliance: Because the unit entirely lacks electrical components, it generates no operational sparks. This makes it intrinsically safe for explosive or highly flammable environments. Facilities operating in regulated ATEX zones rely heavily on this technology. You do not need to invest in expensive explosion-proof motor enclosures or complex grounding systems.
• Damage-Free Dead-Heading: Process lines occasionally get blocked by debris. A discharge valve might remain closed by human mistake. Motor-driven units will aggressively continue building pressure in these dangerous situations. They risk catastrophic heat buildup, ruptured pipes, or blown seals. A pneumatic system reacts completely differently. It simply stalls when the internal fluid pressure equals the incoming air pressure. It waits patiently and resumes pumping automatically once the operator opens the valve.
• Self-Priming and Dry Running: The robust vacuum created by the alternating diaphragms offers immense operational flexibility. The unit can reliably self-prime from a completely dry start. It easily lifts dense fluids from deep underground tanks or sumps. Furthermore, it can run completely dry for extended periods without damaging internal components. Centrifugal units would overheat and destroy their mechanical seals under the same conditions.
• Shear-Sensitivity: Centrifugal impellers spin at incredibly high speeds. They whip and shear fluids aggressively during transfer. Some fluids, like liquid latex, delicate cosmetics, or food products, degrade quickly under high shear forces. The gentle, low-velocity displacement of a diaphragm unit prevents this structural damage. It maintains the exact integrity of shear-sensitive fluids perfectly.

Best Practice: When pumping heavy solids or highly viscous fluids, reduce the inlet air pressure slightly. Slower strokes allow the fluid chambers to fill completely. This prevents cavitation and drastically improves overall pumping efficiency.

Evaluating Pneumatic Pumps vs. Motor-Driven Alternatives

Let us objectively compare these pneumatic units against standard motor-driven equipment. The engineering decision often comes down to specific operational conditions and plant infrastructure. You must carefully weigh initial capital costs against ongoing daily utility expenses.

CAPEX vs. OPEX

You will quickly notice a transparent financial trade-off here. Air-driven units generally feature significantly lower upfront purchase costs. They require minimal installation effort. You do not need complex electrical wiring, variable frequency drives, or laser shaft alignment. However, compressed air remains a notoriously expensive industrial utility. It costs much more to generate than direct electrical drive energy. You essentially trade direct energy efficiency for extreme reliability and application safety.

Versatility vs. Efficiency

Centrifugal units offer superior, unmatched energy efficiency for continuous, predictable flows. They excel at moving clean water over long distances continuously. Conversely, pneumatic units excel in highly variable, intermittent, or difficult-fluid scenarios. They handle thick slurries, harsh chemicals, and high solid concentrations effortlessly.

Footprint and Portability

Plant managers highly value operational flexibility. Air-driven units are remarkably lightweight and compact compared to motorized skids. You can easily integrate them into mobile carts. They require no heavy concrete baseplates. Maintenance operators can move them quickly between different process lines as production demands shift.

Sizing, Material Selection, and Implementation Risks

Proper engineering selection ensures long-term process reliability. Many operators experience premature equipment failures simply due to poor upfront specification. You must rigorously analyze both the fluid characteristics and your facility's air supply system before installation.

Chemical Compatibility (Wetted Parts)

You must evaluate housing materials and elastomers carefully against your target fluid. The wetted parts interact intimately with the chemical on every stroke. Choosing the wrong material causes rapid degradation.

• Polypropylene: Offers excellent broad-spectrum resistance to many strong acids and aggressive alkalis.
• PVDF (Kynar): Handles highly aggressive, harsh chemicals and elevated fluid temperatures exceptionally well.
• Stainless Steel: Works perfectly for highly corrosive liquids, abrasive slurries, and stringent food-grade applications.
• Aluminum: Suits neutral pH fluids, waste oils, and standard lubricants perfectly.

Elastomer selection is equally critical. PTFE (Teflon) offers near-universal chemical resistance but lacks deep flex life. Buna-N handles petroleum-based fluids effectively and cheaply. Santoprene provides excellent mechanical abrasion resistance and long flex life for general chemicals.

Air Supply and System Scalability

Many industrial facilities face the frustrating problem of "starving the pump." You must accurately evaluate your existing factory compressor capacity. An undersized compressor causes erratic, jerky operation. Ensure you consistently provide clean, regulated air. Moisture in unconditioned air lines causes rapid air expansion to freeze the exhaust muffler solid. This inevitable freezing leads to unexpected, costly downtime. Use proper air filter regulators to prevent air-valve freezing or premature seal wear.

Mitigating Pulsation

The alternating diaphragm strokes inherently create heavy pulsation in the fluid discharge line. This hydraulic pulsation causes rigid pipes to vibrate violently. It can easily damage sensitive downstream flowmeters and instrumentation. You must address this during the initial system design phase. Specifying an active pulsation dampener helps significantly. The dampener aggressively absorbs the hydraulic shocks. It smooths the fluid flow and protects your delicate piping infrastructure.

Shortlisting Logic and Next Steps for Procurement

Selecting the right fluid transfer equipment requires a highly methodical approach. You need accurate empirical data before executing a purchase order. Never guess required flow rates or pressure requirements, as this leads to drastic undersizing or oversizing.

Establishing Success Criteria

Begin by defining your absolute baseline engineering metrics. You must first determine the required flow rate in gallons per minute (GPM). Next, identify the maximum dynamic discharge pressure your system must overcome. You also need precise fluid characteristics. Measure the fluid viscosity carefully. Note the maximum solid size suspended naturally in the liquid. These vital data points strictly dictate the required unit size and port dimensions.

Performance Curves

Understanding specialized performance curves remains crucial. A pneumatic curve looks fundamentally different from a standard centrifugal curve. You must find the optimal operational intersection of air consumption and fluid output. The horizontal X-axis typically displays fluid flow. The vertical Y-axis displays fluid discharge pressure. Curved intersecting lines across the graph indicate exact air consumption (SCFM) at specific inlet air pressures. Reading this graph correctly prevents critical undersizing. It also prevents wasting your expensive compressed air utility.

Next-Step Action

Do not finalize your technical specification alone if you lack direct fluid handling experience. We strongly recommend scheduling a thorough application audit. Consult a qualified application engineer to review your precise system parameters. Reference comprehensive chemical compatibility guides before locking in elastomer choices. Verifying these engineering details upfront ensures optimal performance. It guarantees you procure an Air Driven Pump that will survive your harsh process environment.

Conclusion

Weighing the strategic advantages of this technology reveals a remarkably clear decision framework. A pneumatic fluid system deliberately trades direct energy efficiency for extreme reliability. It delivers unmatched, proven safety and versatility in the most demanding industrial applications. It easily handles abrasive slurries, protects shear-sensitive fluids, and manages dead-heading scenarios without catastrophic failure.

Proper material selection and highly accurate sizing remain absolutely vital. They ensure you maximize the operational lifespan of the equipment while minimizing unexpected maintenance. Are you ready to fundamentally upgrade your fluid transfer process? We encourage you to download a comprehensive pump sizing worksheet today. Access a reliable chemical compatibility tool to verify your wetted material choices confidently. Alternatively, request a direct technical consultation. Expert engineering guidance will validate your system design, prevent costly errors, and streamline your entire procurement process.

FAQ

Q: Can a pneumatic pump run continuously?

A: Yes, they can run continuously under the right environmental conditions. However, continuous 24/7 operation requires careful upfront sizing. You must select a significantly larger unit and purposefully run it at a slower stroke rate. This intelligent strategy optimizes internal diaphragm life and heavily prevents premature wear. Implementing a strict, predictive maintenance schedule is also essential.

Q: What is the maximum viscosity an air driven pump can handle?

A: These specific units excel at moving incredibly thick fluids. They typically handle fluid viscosities up to 20,000–25,000 centipoise (cps). The exact upper limit depends heavily on the specific internal port size and ball valve design. Larger internal manifolds and weighted check valves dramatically improve operational performance with high-viscosity liquids like heavy resins, thick latex, or industrial adhesives.

Q: Why is my pneumatic pump freezing up?

A: Severe freezing occurs due to the fundamental thermodynamics of rapid air expansion. As highly compressed air expands exiting the main exhaust, its physical temperature drops drastically. If your facility air supply contains excess moisture, this sudden temperature drop freezes the water vapor solid. You can effectively prevent this by immediately installing a refrigerated air dryer.

Q: How do I control the flow rate?

A: Controlling the fluid flow rate is incredibly simple and cost-effective. You absolutely do not need a complex, expensive Variable Frequency Drive (VFD). You can easily adjust the incoming inlet air pressure using a standard pneumatic regulator. Alternatively, you can partially restrict the fluid discharge using a simple manual ball valve. The unit automatically adjusts its internal speed.
