JL4250- JL4258

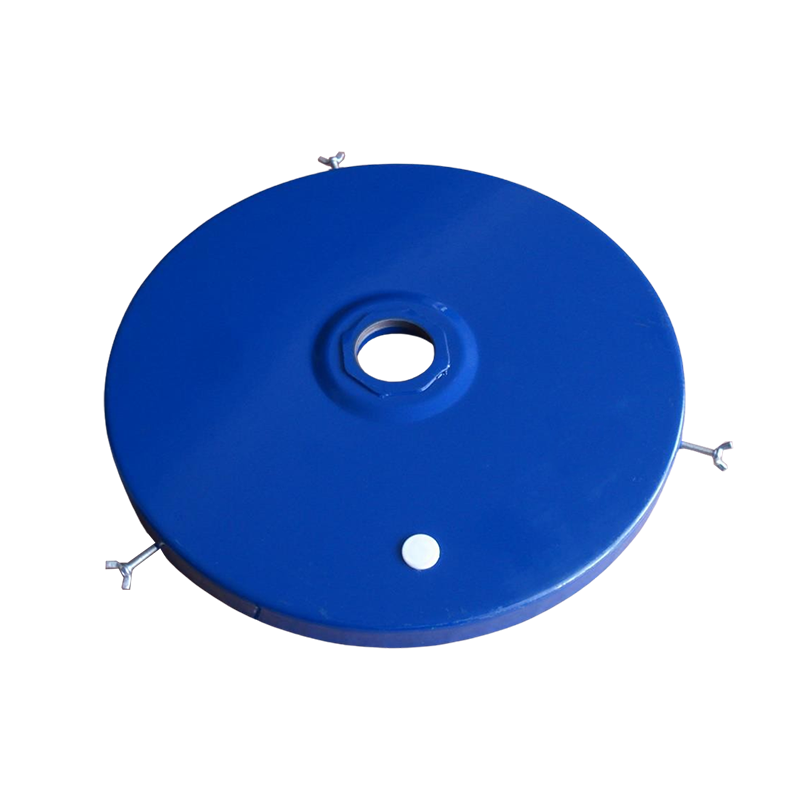

This steel drum cover is built to provide a secure and stable mounting base for pump operation. It features a 2" BSP female bung adapter in the center for direct pump installation and three locking screws to secure the lid firmly on the drum rim. The drum cover also features a plugged port let you hook the outlet hose on when the pump is not in use. Available in 10 sizes from diameter 220mm up to 620mm, this drum cover fits a wide range of drums or barrels. It is a simple and robust solution to help your grease pump or oil pump maintain a solid position on the drum.
Technical Parameters:
Model NO: JL4250- JL4258
Size: 220mm, 281mm, 315mm, 336mm, 345mm, 363mm, 386mm, 408mm, 433mm, 620mm
Center Thread: 2" BSP (F)
This steel drum cover is designed to keep your grease pump or oil pump firmly positioned during operation. The rigid structure provides a stable platform that helps reduce wobble and improves pumping control during workshop or industrial use.
Three locking screws clamp the cover tightly onto the drum rim to prevent shifting during pumping. This secure grip helps maintain a consistent seal and reduces the chance of loosening caused by vibration or repeated operation.
A 2" BSP (F) bung adapter is built into the center, allowing direct installation of pumps with a matching 2" BSP male connection. This allows easy setup and helps ensure the pump sits straight and centered on the drum.
Available in 10 sizes (220–620mm), the JL4250–JL4258 series fits a wide range of drums and barrels. Choosing the right diameter helps ensure a precise, stable installation.
It allows you to hook the outlet hose when the pump is not in use, helping keep the work area cleaner and protecting the hose end from contamination.
This steel drum cover is built to provide a secure and stable mounting base for pump operation. It features a 2" BSP female bung adapter in the center for direct pump installation and three locking screws to secure the lid firmly on the drum rim. The drum cover also features a plugged port let you hook the outlet hose on when the pump is not in use. Available in 10 sizes from diameter 220mm up to 620mm, this drum cover fits a wide range of drums or barrels. It is a simple and robust solution to help your grease pump or oil pump maintain a solid position on the drum.
Technical Parameters:
Model NO: JL4250- JL4258
Size: 220mm, 281mm, 315mm, 336mm, 345mm, 363mm, 386mm, 408mm, 433mm, 620mm
Center Thread: 2" BSP (F)
This steel drum cover is designed to keep your grease pump or oil pump firmly positioned during operation. The rigid structure provides a stable platform that helps reduce wobble and improves pumping control during workshop or industrial use.
Three locking screws clamp the cover tightly onto the drum rim to prevent shifting during pumping. This secure grip helps maintain a consistent seal and reduces the chance of loosening caused by vibration or repeated operation.
A 2" BSP (F) bung adapter is built into the center, allowing direct installation of pumps with a matching 2" BSP male connection. This allows easy setup and helps ensure the pump sits straight and centered on the drum.
Available in 10 sizes (220–620mm), the JL4250–JL4258 series fits a wide range of drums and barrels. Choosing the right diameter helps ensure a precise, stable installation.
It allows you to hook the outlet hose when the pump is not in use, helping keep the work area cleaner and protecting the hose end from contamination.
