Are clogged grease fittings slowing your maintenance team down? Manual greasing wastes valuable hours, and heavy machinery demands a far more efficient, reliable solution.
When cold weather strikes, thick grease becomes nearly impossible to pump by hand. Consequently, critical daily maintenance gets delayed, putting expensive components at severe risk of failure. In this comprehensive engineering guide, we will break down exactly why a 50:1 pneumatic system solves these operational bottlenecks, keeping your fleet moving regardless of the conditions.
Unmatched Pressure Delivery: A 50:1 ratio multiplies input air pressure by 50, generating sufficient force to clear blocked fittings without manual exertion.
Significant Labor Optimization: Transitioning to air-operated systems typically reduces routine lubrication time by up to 50%, massively increasing machine uptime.
Cold Weather Reliability: Specifically engineered to handle high-viscosity lubricants, including NLGI #2 and #3 greases, even in sub-freezing environments.
Operational Versatility: These systems adapt to various container sizes, from standard 5-gallon pails to industrial 55-gallon drums, fitting diverse workshop requirements.
Understanding the technical specifications of maintenance equipment is crucial for fleet managers and procurement officers. The term "50:1" is not merely a marketing buzzword. Rather, it serves as a precise mathematical representation of the pump's mechanical advantage.

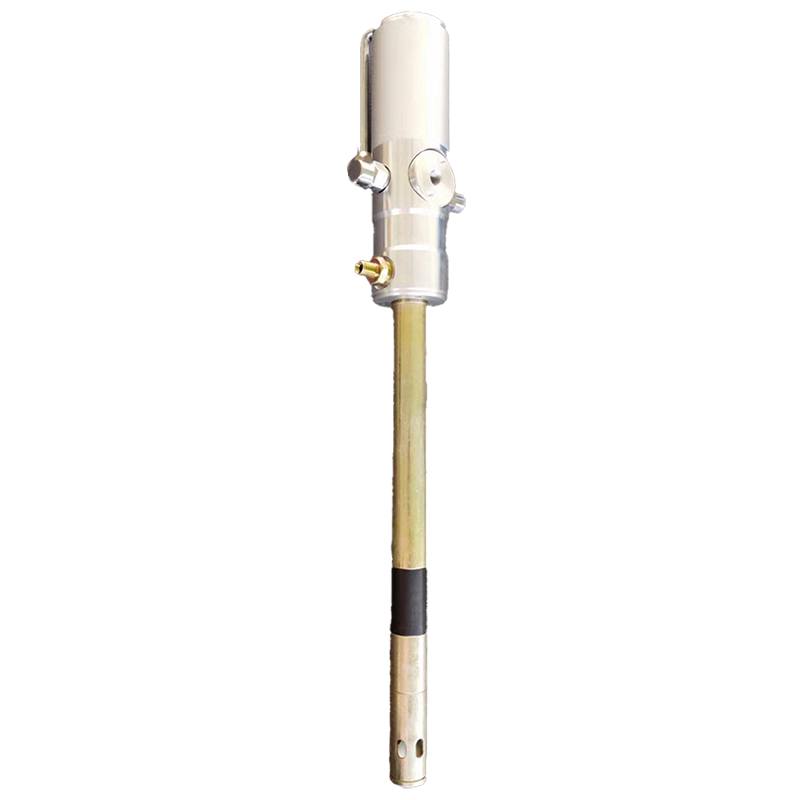

In the context of an air operated grease pump, this ratio describes the relationship between the surface area of the air motor piston and the fluid piston. Specifically, for every 1 Pound per Square Inch (PSI) of compressed air supplied, the internal mechanics generate 50 PSI of fluid pressure at the outlet.
For example, if your workshop compressor supplies exactly 100 PSI (around 0.7 MPa), the system multiplies this force to deliver a maximum output of 5,000 PSI (approx. 35 MPa). Mechanical engineers and seasoned technicians widely recognize this specific pressure threshold as the optimal force required to push thick lubricants into incredibly tight bearing clearances.
Construction excavators, mining haul trucks, and agricultural tractors operate in the harshest environments conceivable. These brutal conditions create specific maintenance hurdles that standard hand tools simply cannot overcome.
Heavy machinery requires robust lubrication to separate metal components under extreme loads, typically relying on an NLGI #2 lithium-complex grease. Because this grease is highly viscous and tacky, ambient temperature drops during winter months cause the base oil and thickener to stiffen significantly. Picture a mechanic lying in the freezing mud, struggling with a manual lever gun. The immense physical effort required often results in incomplete bearing packing. Pneumatic systems entirely bypass this issue by utilizing compressed air to effortlessly move stiff, cold fluids at rates up to 800 grams per minute.
Equipment operating in mud, dust, and gravel constantly faces severe contamination. Even with protective caps, Zerk fittings frequently become blocked by an impenetrable mixture of dirt and dried soap thickener from old grease. When an operator attempts to use a standard manual pump, the resulting backpressure causes the fresh lubricant to bypass the fitting and leak out the sides.
A reliable high pressure grease pump becomes mandatory in these exact scenarios. Delivering a continuous 5,000 to 5,800 PSI force, it shatters the seal of dried contaminants. This action forces fresh grease deep into the bearing while simultaneously purging the old, contaminated material out of the seals.
If we look at recent industry shifts in heavy-duty fleet maintenance, there is a massive migration toward automated and high-pressure pneumatic systems. Why? Because the skilled technician shortage is real. Shops can no longer afford to have mechanics spending three hours a day manually pumping grease. Furthermore, as equipment tolerances become tighter and the financial impact of unexpected downtime skyrockets due to global supply chain delays for replacement parts, fleet managers are aggressively moving away from manual lubrication. Current market trends heavily favor systems that guarantee precise, high-volume delivery of heavy greases in all weather conditions. This proactive approach minimizes human error, protects million-dollar assets, and maximizes revenue-generating machine uptime.
In sprawling maintenance bays or mobile service trucks, technicians cannot always maneuver a heavy drum directly next to the machine. Routine service frequently requires pumping grease through lengthy hose reels, sometimes spanning 15 to 50 feet. Pushing thick material through a long hose creates tremendous friction and pressure drop. Fortunately, a 50:1 ratio maintains sufficient head pressure to traverse these long distances without losing the terminal force necessary to penetrate the machine's fittings.Top Reasons to Choose a 50:1 Pneumatic System for Your Fleet
A "frozen" fitting usually forces a mechanic to halt their workflow, remove the Zerk fitting, clean the port, install a replacement, and try again. This tedious process wastes valuable labor hours. By delivering a continuous, high-pressure stream, the 5,000+ PSI capability of a 50:1 pump overcomes the blockage instantly, saving both time and the material cost of replacement parts.
Time-motion studies in fleet maintenance consistently reveal that manual greasing ranks among the most time-consuming routine tasks. A manual lever gun demands constant physical pumping and the frequent, messy reloading of small 14 oz cartridges. In contrast, integrating a drum grease pump provides continuous flow simply by depressing a trigger. This streamlined efficiency cuts the time a machine sits in the maintenance bay by up to 50%.
Properly servicing a single large excavator can require hundreds of individual pumps from a manual gun. Over time, this repetitive motion leads to severe operator fatigue and heightens the risk of repetitive strain injuries (RSIs) in the hands and forearms. Pneumatic systems eliminate this physical toll entirely. The technician merely guides the nozzle, ensuring that the final fitting of a long shift receives the exact same volume of grease as the very first.
Premature bearing failure frequently stems from chronic under-lubrication. Fatigued mechanics may inadvertently stop greasing before a bearing is fully packed. The steady pneumatic pressure ensures a consistent delivery rate, allowing operators to easily observe the old grease purging from the seals. This visual confirmation guarantees the component has received adequate protection against metal-on-metal wear.
Selecting the correct ratio requires matching the tool to the specific fluid and application. Utilizing the wrong equipment can result in catastrophic seal damage or highly inefficient operation. Below is a quick field reference guide to help you choose.
| Pump Ratio | Best Application | Max Output Pressure (approx.) | Viscosity Handling |
|---|---|---|---|
| 3:1 / 5:1 | Engine oil, gear lube transfer | 300 - 500 PSI | Low (Fluids only) |
| 40:1 | Automotive garages, light trucks | 4,000 PSI | Medium (NLGI #1, warm #2) |
| 50:1 | Heavy construction, mining, ag fleets | 5,000 - 5,800 PSI | High (NLGI #2, #3, cold weather) |
| 60:1 / 70:1 | Arctic conditions, centralized factory pipes | 6,000+ PSI | Extreme (Very slow delivery rate) |
For construction, agriculture, and mining fleets, the 50:1 ratio remains the undisputed gold standard. It serves as the ideal heavy equipment grease pump because it strikes a perfect balance. It provides enough raw force to overcome harsh environmental contamination while delivering material fast enough (up to 800g/min) to keep strict maintenance schedules on track.
Not all pneumatic systems are manufactured to identical standards. When evaluating equipment for industrial use, specific mechanical components dictate the overall reliability, efficiency, and lifespan of the unit. Look for systems that comfortably handle air inlet pressures of 0.6-0.8 MPa (87-116 PSI).
The follower plate is arguably the most critical accessory for handling high-viscosity lubricants. Thick greases do not self-level. Without this plate, the suction tube will simply bore a void through the center of the grease, sucking in air and causing cavitation.
A high-quality follower plate rests directly on the fluid's surface. As the pump operates, the resulting vacuum pulls the plate downward, systematically scraping the drum walls. This action ensures every ounce of grease is utilized, drastically minimizing waste. Furthermore, the barrel cap stabilizes the pump shaft vertically to prevent uneven seal wear, while simultaneously locking out environmental dust and moisture.
Because heavy machinery is often too large to maneuver close to a stationary drum, the delivery hose must offer sufficient reach without sacrificing structural integrity. A standard setup typically utilizes a 13-foot to 25-foot hose. Since the system generates upwards of 5,000 PSI, standard rubber hoses are entirely inadequate and highly dangerous.
Industrial applications demand wire-braided hydraulic hoses (often meeting SAE 100 R2 specifications) to prevent bursting. Additionally, premium hoses feature heavy-duty crimped steel fittings to withstand intense pressure spikes when clearing blocked Zerks.
Operator ergonomics play a massive role in shop efficiency. Mechanics frequently crawl under loaders and bulldozers to access awkwardly positioned fittings. A rigid hose connection makes this task physically exhausting and increases the likelihood of kinking.
Installing a 360-degree Z-swivel between the high-pressure hose and the control valve eliminates this friction. This small but crucial joint allows the gun to rotate independently in multiple directions, reducing fatigue and allowing technicians to easily angle the nozzle onto hidden fittings.
Implementing an air-operated system requires strict adherence to safety protocols. High-pressure hydraulic injection injuries are a severe risk if equipment is mishandled. Furthermore, correct installation guarantees the longevity of internal seals and the air motor.
The performance of your pump depends entirely on the quality and volume of the compressed air supplied. Most 50:1 units require a compressor capable of delivering 4 to 6 Cubic Feet per Minute (CFM) at a consistent pressure.
Never connect a pump directly to an unregulated shop air line. If the shop compressor outputs 150 PSI, the pump will attempt to generate an unsafe 7,500 PSI, which can easily rupture delivery hoses. Always install a dedicated air regulator and set it strictly between 90 and 115 PSI. Before applying pressure, ensure all threaded connections are wrapped with Teflon tape and tightened to specification.
An airlock (cavitation) is the most common operational issue encountered in the field. This happens when the suction tube draws in a pocket of air, causing the motor to cycle rapidly with a loud chattering noise while dispensing nothing.
To resolve an airlock safely:
Disconnect the Air Supply: Immediately detach the air line to prevent the motor from over-speeding and destroying internal seals.
Relieve Pressure: Squeeze the gun trigger to release any residual line pressure.
Check the Follower Plate: Inspect the plate inside the drum. Press down firmly to force grease upward into the tube, pushing trapped air out.
Bleed the System: Open the air release bleeder valve (if equipped) near the base of the pump tube.
Reconnect and Test: Reattach the air supply at a very low pressure (around 40 PSI) to prime the pump until solid grease flows smoothly, then readjust to normal operating pressure.
Procuring maintenance equipment for a heavy-duty fleet is a long-term investment. Purchasing sub-standard, consumer-grade tools leads to frequent breakdowns, unlubricated machinery, and ultimately, catastrophic bearing failures that cost thousands of dollars in downtime.
When sourcing an industrial lubrication pump, buyers must prioritize manufacturers that offer transparent technical specifications, robust warranties, and readily available replacement parts like seal kits and follower plates. A reliable supplier inherently understands the rigorous demands of the construction, agricultural, and mining sectors.
Heavy equipment demands serious, uncompromising maintenance tools. Transitioning to a 50:1 pneumatic system saves valuable labor hours, drastically reduces bulk material costs, and guarantees that your machinery is fully protected against wear.
Ready to upgrade your shop's efficiency? Explore the robust, field-tested 50:1 pneumatic grease pumps at Jinlin Industrial to find the exact configuration your fleet needs to stay lubricated, protected, and fully operational.
Most 50:1 pneumatic pumps require an air compressor capable of delivering between 4 to 6 Cubic Feet per Minute (CFM) at a stable pressure of 90 to 115 PSI (0.6 - 0.8 MPa). A standard industrial shop compressor with a 20-gallon tank or larger is usually more than sufficient to maintain a continuous, uninterrupted flow. If you are operating from a mobile service truck, ensure the onboard compressor meets these minimum CFM requirements to prevent stalling under load.
Yes. The 50:1 pressure ratio is specifically engineered to pump high-viscosity lubricants like NLGI #2, which serves as the industry standard for heavy equipment. In colder temperatures, grease becomes significantly thicker and resists flow. The 50:1 ratio provides enough mechanical force to push cold, stiff grease through long delivery hoses and into tight bearings—a task that lower-ratio pumps simply cannot accomplish.
This rapid clicking sound almost always indicates an airlock, also known as cavitation. The pump is sucking in a pocket of air instead of grease, causing the air motor to cycle rapidly without resistance. To resolve this, immediately disconnect the air supply to prevent seal damage. Press down firmly on the follower plate inside the drum to compact the grease, bleed the air release valve on the pump tube, and reconnect the air supply at low pressure to re-prime the system.
An FRL unit is highly recommended and often required to maintain the manufacturer's warranty. The filter removes harmful moisture and debris from your shop's compressed air lines, preventing internal rust. The regulator ensures the equipment operates at a safe PSI, preventing blown hoses. Finally, the lubricator adds a micro-mist of pneumatic oil to the air stream, keeping internal moving parts properly lubricated and preventing freezing during continuous use.
For a standard 50:1 pump pushing NLGI #2 grease, you can comfortably use a 25-foot to 50-foot high-pressure hose reel. However, pushing thick grease over long distances creates friction (pressure drop). If you need to pump beyond 50 feet, especially in cold environments, you may experience slower delivery rates and should consult with a pump engineer regarding pipe diameter upgrades or moving to a higher ratio pump.
A follower plate goes inside the drum. It sits directly on top of the grease and is pulled down by the pump's vacuum, scraping the sides and preventing air pockets (cavitation). A drum cover (or barrel cap) sits on the outside rim of the drum. It holds the pump shaft perfectly vertical and keeps dirt, dust, and moisture from contaminating the grease. Both are essential for industrial operations.
